RTE-GG-90-64-1-1

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-90-64-1-1

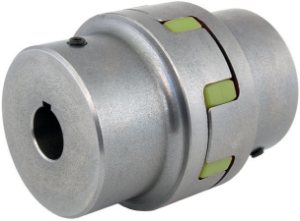

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]245
Dimension [L1]100
Dimension [b]100
Dimension [E]45
Dimension [b]34
Dimension [S]5.5
Dimension [DH]200
Dimension [dH]100
Dimension [D]160
Dimension [N]81
Thread [G]M12
Dimension [t]30
Tightening Torque TA Nm40
Hub Combination1 - 1
Shore Hardness64 Sh-D
Torque (Nm)4500
Max. Torque (Nm)9000
Hub 1 Min. Bore Diameter [d]40
Hub 1 Max. Bore Diameter [d]97
Coupling Size90
