RTE-GG-65-64-1-1

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-65-64-1-1

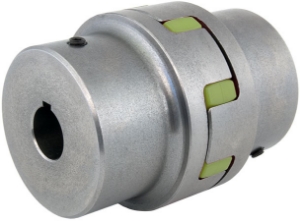

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]185
Dimension [L1]75
Dimension [b]75
Dimension [E]35
Dimension [b]26
Dimension [S]4.5
Dimension [DH]135
Dimension [dH]68
Diameter [D]115
Dimension [N]61
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1 - 1
Shore Hardness64 Sh-D
Torque (Nm)1175
Max. Torque (Nm)2350
Hub 1 Min. Bore Diameter [d]22
Hub 1 Max. Bore Diameter [d]70
Coupling Size65

Product specifications

MaterialCast Iron GJL
Dimension [L]185
Dimension [L1]75
Dimension [b]75
Dimension [E]35
Dimension [b]26
Dimension [S]4.5
Dimension [DH]135
Dimension [dH]68
Diameter [D]115
Dimension [N]61
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1 - 1
Shore Hardness64 Sh-D
Torque (Nm)1175
Max. Torque (Nm)2350
Hub 1 Min. Bore Diameter [d]22
Hub 1 Max. Bore Diameter [d]70
Coupling Size65
