RTE-GG-48-98-1A-1A

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-48-98-1A-1A

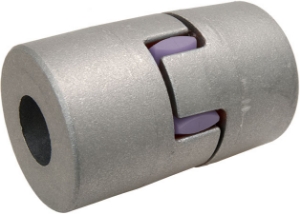

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]140
Dimension [L1]56
Dimension [b]56
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D1]104
Dimension [N]45
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1a - 1a
Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Hub 1a Min. Bore Diameter [d]48
Hub 1a Max. Bore Diameter [d]62
Coupling Size48

Product specifications

MaterialCast Iron GJL
Dimension [L]140
Dimension [L1]56
Dimension [b]56
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D1]104
Dimension [N]45
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1a - 1a
Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Hub 1a Min. Bore Diameter [d]48
Hub 1a Max. Bore Diameter [d]62
Coupling Size48
