RTE-GG-48-98-1-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-48-98-1-1B

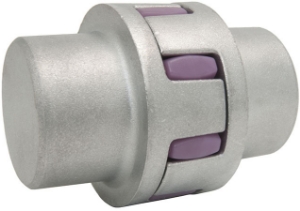

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]164
Dimension [L1]56
Dimension [b]80
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D]85
Dimension [D1]104
Dimension [N]45
Dimension [N1]69
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1 - 1b
Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Hub 1 Min. Bore Diameter [d]15
Hub 1 Max. Bore Diameter [d]52
Hub 1b Min. Bore Diameter [d]15
Hub 1b Max. Bore Diameter [d]62
Coupling Size48

Product specifications

MaterialCast Iron GJL
Dimension [L]164
Dimension [L1]56
Dimension [b]80
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D]85
Dimension [D1]104
Dimension [N]45
Dimension [N1]69
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1 - 1b
Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Hub 1 Min. Bore Diameter [d]15
Hub 1 Max. Bore Diameter [d]52
Hub 1b Min. Bore Diameter [d]15
Hub 1b Max. Bore Diameter [d]62
Coupling Size48
