RTE-GG-42-98-1-1

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-42-98-1-1

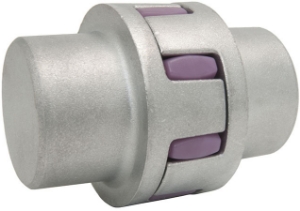

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]126
Dimension [L1]50
Dimension [b]50
Dimension [E]26
Dimension [b]20
Dimension [S]3
Dimension [DH]95
Dimension [dH]46
Dimension [D]75
Dimension [N]40
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1 - 1
Shore Hardness98 Sh-A
Torque (Nm)450
Max. Torque (Nm)900
Hub 1 Min. Bore Diameter [d]14
Hub 1 Max. Bore Diameter [d]45
Coupling Size42
