RTE-GG-42-92-1B-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-42-92-1B-1B

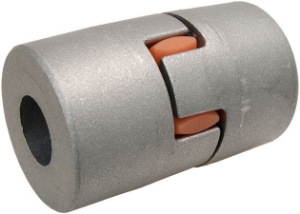

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]176
Dimension [L1]75
Dimension [b]75
Dimension [E]26
Dimension [b]20
Dimension [S]3
Dimension [DH]95
Dimension [dH]46
Dimension [D1]75
Dimension [N1]65
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)265
Max. Torque (Nm)530
Hub 1b Min. Bore Diameter [d]14
Hub 1b Max. Bore Diameter [d]55
Coupling Size42

Product specifications

MaterialCast Iron GJL
Dimension [L]176
Dimension [L1]75
Dimension [b]75
Dimension [E]26
Dimension [b]20
Dimension [S]3
Dimension [DH]95
Dimension [dH]46
Dimension [D1]75
Dimension [N1]65
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)265
Max. Torque (Nm)530
Hub 1b Min. Bore Diameter [d]14
Hub 1b Max. Bore Diameter [d]55
Coupling Size42
