RTE-GG-42-64-1A-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-42-64-1A-1B

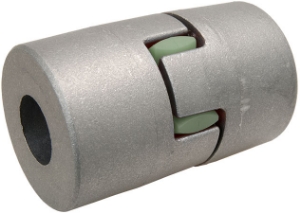

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]151
Dimension [L1]50
Dimension [b]75
Dimension [E]26
Dimension [b]20
Dimension [S]3
Dimension [DH]95
Dimension [dH]46
Dimension [D1]94
Dimension [N]40
Dimension [N1]65
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1a - 1b
Shore Hardness64 Sh-D
Torque (Nm)560
Max. Torque (Nm)1120
Hub 1a Min. Bore Diameter [d]42
Hub 1a Max. Bore Diameter [d]55
Hub 1b Min. Bore Diameter [d]14
Hub 1b Max. Bore Diameter [d]55
Coupling Size42

Product specifications

MaterialCast Iron GJL
Dimension [L]151
Dimension [L1]50
Dimension [b]75
Dimension [E]26
Dimension [b]20
Dimension [S]3
Dimension [DH]95
Dimension [dH]46
Dimension [D1]94
Dimension [N]40
Dimension [N1]65
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1a - 1b
Shore Hardness64 Sh-D
Torque (Nm)560
Max. Torque (Nm)1120
Hub 1a Min. Bore Diameter [d]42
Hub 1a Max. Bore Diameter [d]55
Hub 1b Min. Bore Diameter [d]14
Hub 1b Max. Bore Diameter [d]55
Coupling Size42
