Shaft Couplings
Spider Jaw Couplings
RTE : Rotex® Torsionally Flexible Couplings
RTE : Rotex® Couplings
RTE-GG-42-64-1-1
RTE-GG-42-64-1-1

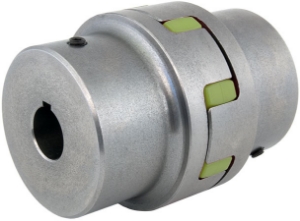

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 64 Sh-A
Product specifications
Material
Cast Iron GJL
Dimension [L]
114
Dimension [L1]
45
Dimension [b]
45
Dimension [E]
24
Dimension [b]
18
Dimension [S]
3
Dimension [DH]
80
Dimension [dH]
38
Dimension [D]
66
Dimension [N]
40
Thread [G]
M8
Dimension [t]
20
Tightening Torque TA Nm
10
Hub Combination
1 - 1
Shore Hardness
64 Sh-D
Torque (Nm)
560
Max. Torque (Nm)
1120
Hub 1 Min. Bore Diameter [d]
14
Hub 1 Max. Bore Diameter [d]
45
Coupling Size
42
Specifications
Overview
Product specifications
Material
Cast Iron GJL
Dimension [L]
114
Dimension [L1]
45
Dimension [b]
45
Dimension [E]
24
Dimension [b]
18
Dimension [S]
3
Dimension [DH]
80
Dimension [dH]
38
Dimension [D]
66
Dimension [N]
40
Thread [G]
M8
Dimension [t]
20
Tightening Torque TA Nm
10
Hub Combination
1 - 1
Shore Hardness
64 Sh-D
Torque (Nm)
560
Max. Torque (Nm)
1120
Hub 1 Min. Bore Diameter [d]
14
Hub 1 Max. Bore Diameter [d]
45
Coupling Size
42
