RTE-GG-38-92-1-1

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-38-92-1-1

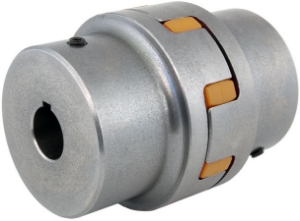

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]114
Dimension [L1]45
Dimension [b]45
Dimension [E]24
Dimension [b]18
Dimension [S]3
Dimension [DH]80
Dimension [dH]38
Dimension [D]66
Dimension [N]37
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1 - 1
Shore Hardness92 Sh-A
Torque (Nm)190
Max. Torque (Nm)380
Hub 1 Min. Bore Diameter [d]12
Hub 1 Max. Bore Diameter [d]40
Coupling Size38

Product specifications

MaterialCast Iron GJL
Dimension [L]114
Dimension [L1]45
Dimension [b]45
Dimension [E]24
Dimension [b]18
Dimension [S]3
Dimension [DH]80
Dimension [dH]38
Dimension [D]66
Dimension [N]37
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1 - 1
Shore Hardness92 Sh-A
Torque (Nm)190
Max. Torque (Nm)380
Hub 1 Min. Bore Diameter [d]12
Hub 1 Max. Bore Diameter [d]40
Coupling Size38
