RTE-GG-38-64-1-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-GG-38-64-1-1B

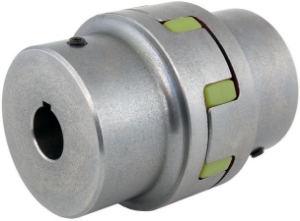

Rotex® Torsionally Flexible Cast Iron Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialCast Iron GJL
Dimension [L]139
Dimension [L1]45
Dimension [b]70
Dimension [E]24
Dimension [b]18
Dimension [S]3
Dimension [DH]80
Dimension [dH]38
Dimension [D]66
Dimension [D1]78
Dimension [N]37
Dimension [N1]62
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1 - 1b
Shore Hardness64 Sh-D
Torque (Nm)405
Max. Torque (Nm)810
Hub 1 Min. Bore Diameter [d]12
Hub 1 Max. Bore Diameter [d]40
Hub 1b Min. Bore Diameter [d]12
Hub 1b Max. Bore Diameter [d]48
Coupling Size38

Product specifications

MaterialCast Iron GJL
Dimension [L]139
Dimension [L1]45
Dimension [b]70
Dimension [E]24
Dimension [b]18
Dimension [S]3
Dimension [DH]80
Dimension [dH]38
Dimension [D]66
Dimension [D1]78
Dimension [N]37
Dimension [N1]62
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1 - 1b
Shore Hardness64 Sh-D
Torque (Nm)405
Max. Torque (Nm)810
Hub 1 Min. Bore Diameter [d]12
Hub 1 Max. Bore Diameter [d]40
Hub 1b Min. Bore Diameter [d]12
Hub 1b Max. Bore Diameter [d]48
Coupling Size38
