RTE-A-28-98-1-1

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-A-28-98-1-1

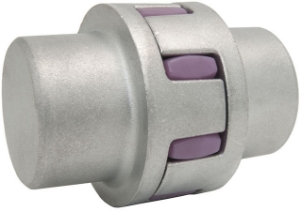

Rotex® Torsionally Flexible Aluminium Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAluminium AL-D (Die Cast)
Dimension [L]90
Dimension [L1]35
Dimension [b]35
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]66
Dimension [dH]30
Dimension [D]48
Dimension [N]28
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1 - 1
Shore Hardness98 Sh-A
Torque (Nm)160
Max. Torque (Nm)320
Hub 1 Min. Bore Diameter [d]10
Hub 1 Max. Bore Diameter [d]28
Coupling Size28

Product specifications

MaterialAluminium AL-D (Die Cast)
Dimension [L]90
Dimension [L1]35
Dimension [b]35
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]66
Dimension [dH]30
Dimension [D]48
Dimension [N]28
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1 - 1
Shore Hardness98 Sh-A
Torque (Nm)160
Max. Torque (Nm)320
Hub 1 Min. Bore Diameter [d]10
Hub 1 Max. Bore Diameter [d]28
Coupling Size28
