RTE-A-28-92-1A-1A

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-A-28-92-1A-1A

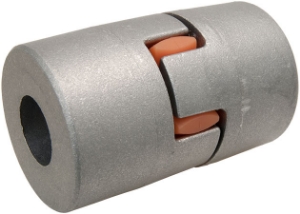

Rotex® Torsionally Flexible Aluminium Coupling, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAluminium AL-D (Die Cast)
Dimension [L]90
Dimension [L1]35
Dimension [b]35
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]66
Dimension [dH]30
Dimension [D1]66
Dimension [N]28
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1a - 1a
Shore Hardness92 Sh-A
Torque (Nm)95
Max. Torque (Nm)190
Hub 1a Min. Bore Diameter [d]28
Hub 1a Max. Bore Diameter [d]38
Coupling Size28

Product specifications

MaterialAluminium AL-D (Die Cast)
Dimension [L]90
Dimension [L1]35
Dimension [b]35
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]66
Dimension [dH]30
Dimension [D1]66
Dimension [N]28
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1a - 1a
Shore Hardness92 Sh-A
Torque (Nm)95
Max. Torque (Nm)190
Hub 1a Min. Bore Diameter [d]28
Hub 1a Max. Bore Diameter [d]38
Coupling Size28
