RTE-A-19-98-1-1

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-A-19-98-1-1

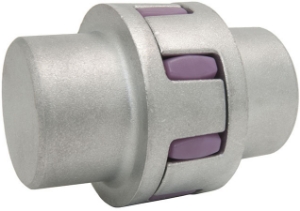

Rotex® Torsionally Flexible Aluminium Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAluminium AL-D (Die Cast)
Dimension [L]66
Dimension [L1]25
Dimension [b]25
Dimension [E]16
Dimension [b]12
Dimension [S]2
Dimension [DH]41
Dimension [dH]18
Dimension [D]32
Dimension [N]20
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1 - 1
Shore Hardness98 Sh-A
Torque (Nm)17
Max. Torque (Nm)34
Hub 1 Min. Bore Diameter [d]6
Hub 1 Max. Bore Diameter [d]19
Coupling Size19

Product specifications

MaterialAluminium AL-D (Die Cast)
Dimension [L]66
Dimension [L1]25
Dimension [b]25
Dimension [E]16
Dimension [b]12
Dimension [S]2
Dimension [DH]41
Dimension [dH]18
Dimension [D]32
Dimension [N]20
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1 - 1
Shore Hardness98 Sh-A
Torque (Nm)17
Max. Torque (Nm)34
Hub 1 Min. Bore Diameter [d]6
Hub 1 Max. Bore Diameter [d]19
Coupling Size19
