Spiral Bevel Gears
Precision Ground Spiral Bevel Gears
PSBG5.0-30
PSBG5.0-30

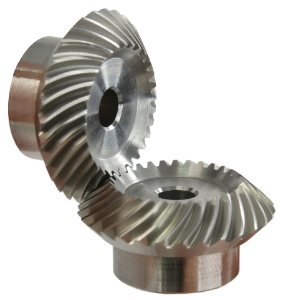

1:1 Precision ground spiral bevel gear sets. DIN 3965 DIN 3967 Q4f24 Includes L left hand spiral pinion and R right hand spiral gear.
Product specifications
Material
805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Gear Tooth Type
Spiral Ground
Quality DIN 3965 DIN 3967
Q4f24
Gear Ratio [i=]
1:1
Normal Module mn
5
No. of Teeth [z]
30
Pressure Angle
20°
Output Torque T₂n [Nm]
800.00
Backlash (mm) jt.i (min)
0.054
Δ 0.1mm Mounting dist.
Δ 0.051 Backlash
Backlash (mm) jt.e (max)
0.116
Spiral Direction
Left & Right, Left Pinion, Right Gear
Spiral Angle
35°
Bore Diameter [di] H6
50
Mass [kg]
3.94
Specifications
Technical
CAD
Overview
Product specifications
Material
805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Gear Tooth Type
Spiral Ground
Quality DIN 3965 DIN 3967
Q4f24
Gear Ratio [i=]
1:1
Normal Module mn
5
No. of Teeth [z]
30
Pressure Angle
20°
Output Torque T₂n [Nm]
800.00
Backlash (mm) jt.i (min)
0.054
Δ 0.1mm Mounting dist.
Δ 0.051 Backlash
Backlash (mm) jt.e (max)
0.116
Spiral Direction
Left & Right, Left Pinion, Right Gear
Spiral Angle
35°
Bore Diameter [di] H6
50
Mass [kg]
3.94
