Precision Ground Spiral Bevel Gears
Ground Spiral Bevel Gears
Ground spiral bevel gears manufactured by Ondrives at our UK factory.
| Sku (Part No.) | Gear Ratio [i=] | Normal Module mn | No. of Teeth [z] | Bore Diameter [di] H6 | Output Torque T₂n [Nm] | Material |
|---|---|---|---|---|---|---|
| PSBG1.0-30 | 1:1 | 1 | 30 | 10 | 6.00 | 17-4PH (EN1.4542 AISI 630) Stainless Steel Hrc40 |
| PSBG1.5-30 | 1:1 | 1.5 | 30 | 12 | 20.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG2.0-30 | 1:1 | 2 | 30 | 14 | 50.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG2.5-30 | 1:1 | 2.5 | 30 | 20 | 120.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |

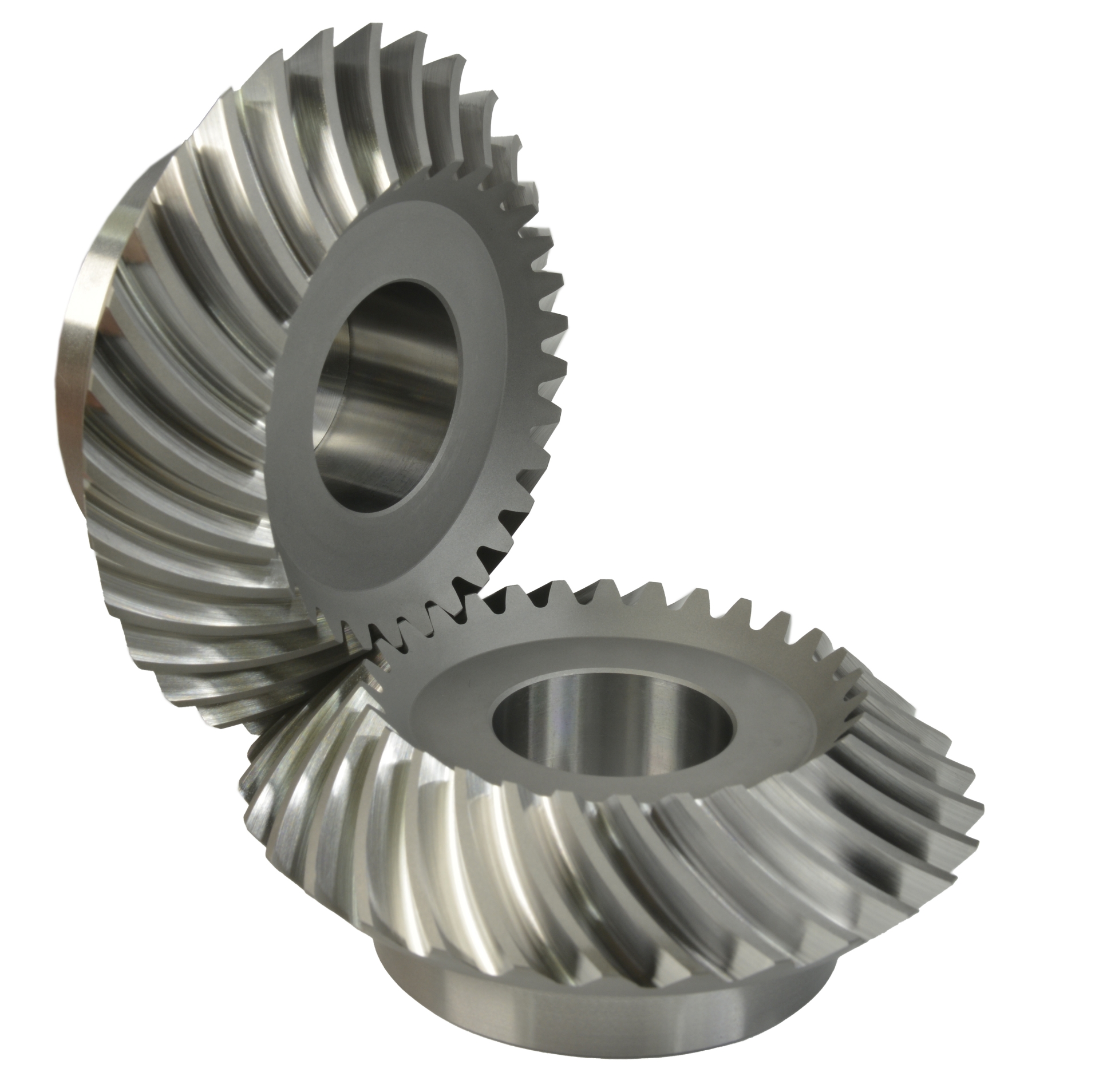

| PSBG3.0-30 | 1:1 | 3 | 30 | 30 | 200.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG4.0-30 | 1:1 | 4 | 30 | 40 | 400.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |

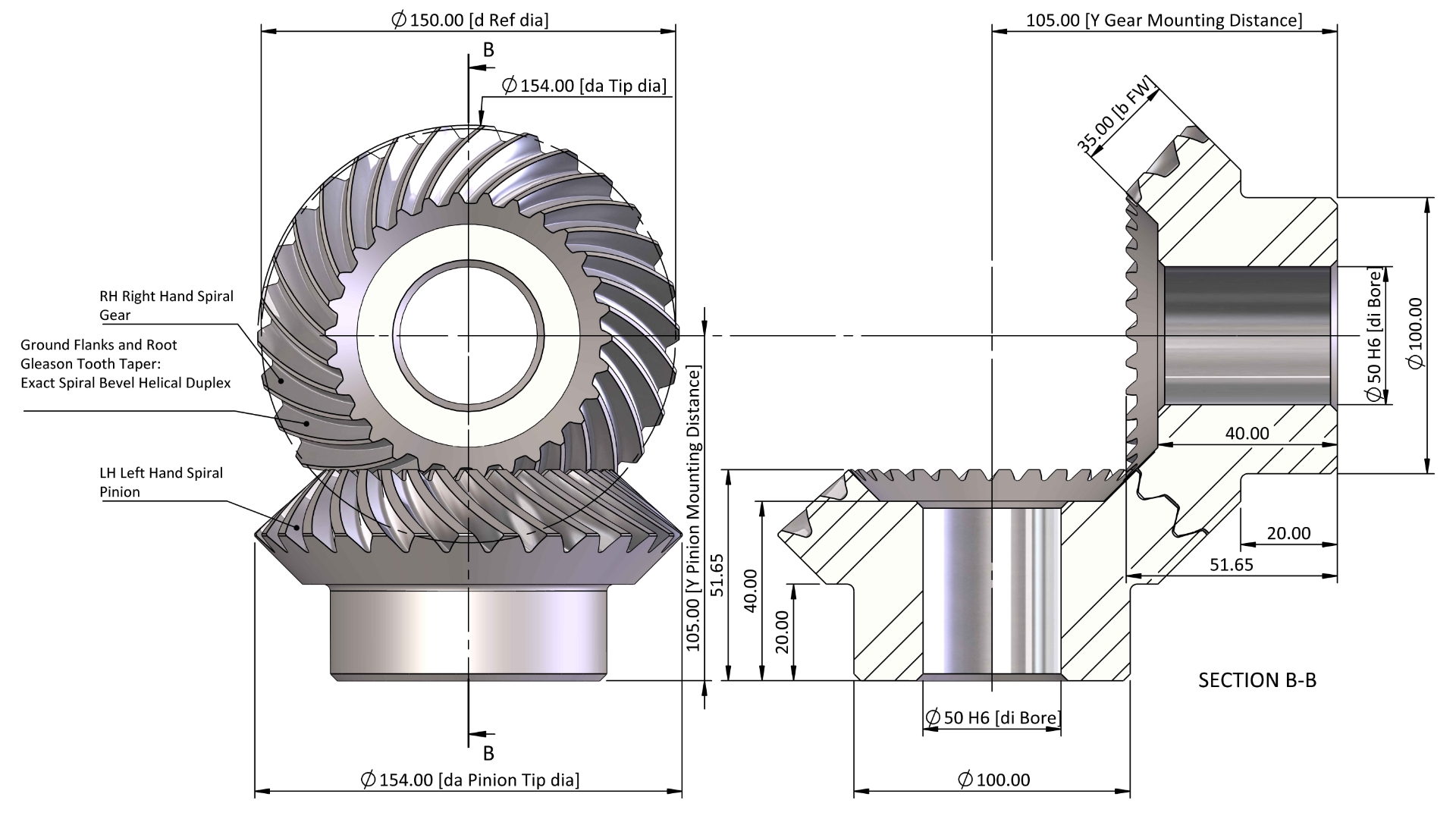

| PSBG5.0-30 | 1:1 | 5 | 30 | 50 | 800.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
