PSBG2.0-30

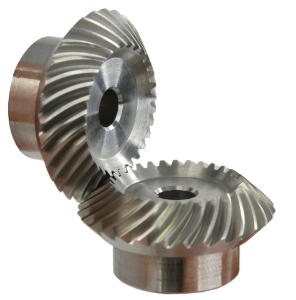

1:1 Precision ground spiral bevel gear sets. DIN 3965 DIN 3967 Q4f24 Includes L left hand spiral pinion and R right hand spiral gear.

Product specifications

Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Gear Tooth Type	Spiral Ground
Quality DIN 3965 DIN 3967	Q4f24
Gear Ratio [i=]	1:1
Normal Module mn	2
No. of Teeth [z]	30
Pressure Angle	20°
Output Torque T₂n [Nm]	50.00
Backlash (mm) jt.i (min)	0.050
Backlash (mm) jt.e (max)	0.081
Δ 0.1mm Mounting dist.	Δ 0.051 Backlash
Spiral Direction	Left & Right, Left Pinion, Right Gear
Spiral Angle	35°
Bore Diameter [di] H6	14
Mass [kg]	0.275
