PWG2.5-38-4DL

Ondrives Precision Gears and Gearboxes Part number PWG2.5-38-4DL

PWG2.5-38-4DL

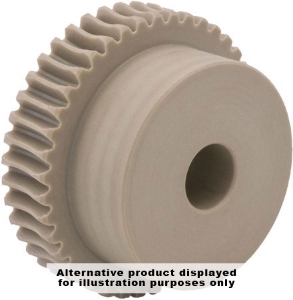

2.5 Module Delrin POM (White) 4 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.5-38-4DL Ondrives Precision Gears and Gearboxes Part number PWG2.5-38-4DL

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Pressure Angle20°
No. of Teeth [z]38
Centre Distance [a]65
Torque T₂ [Nm] n1 100 r/min63.68
Ref. Diameter [d2]95
Wheel Throat [da2]100
Tip Diameter [de2]102.5
Bore Diameter [di] H714
Hub Diameter [Dhub]55
Backlash (mm) jt.i (min)0.047
Backlash (mm) jt.e (max)0.144
