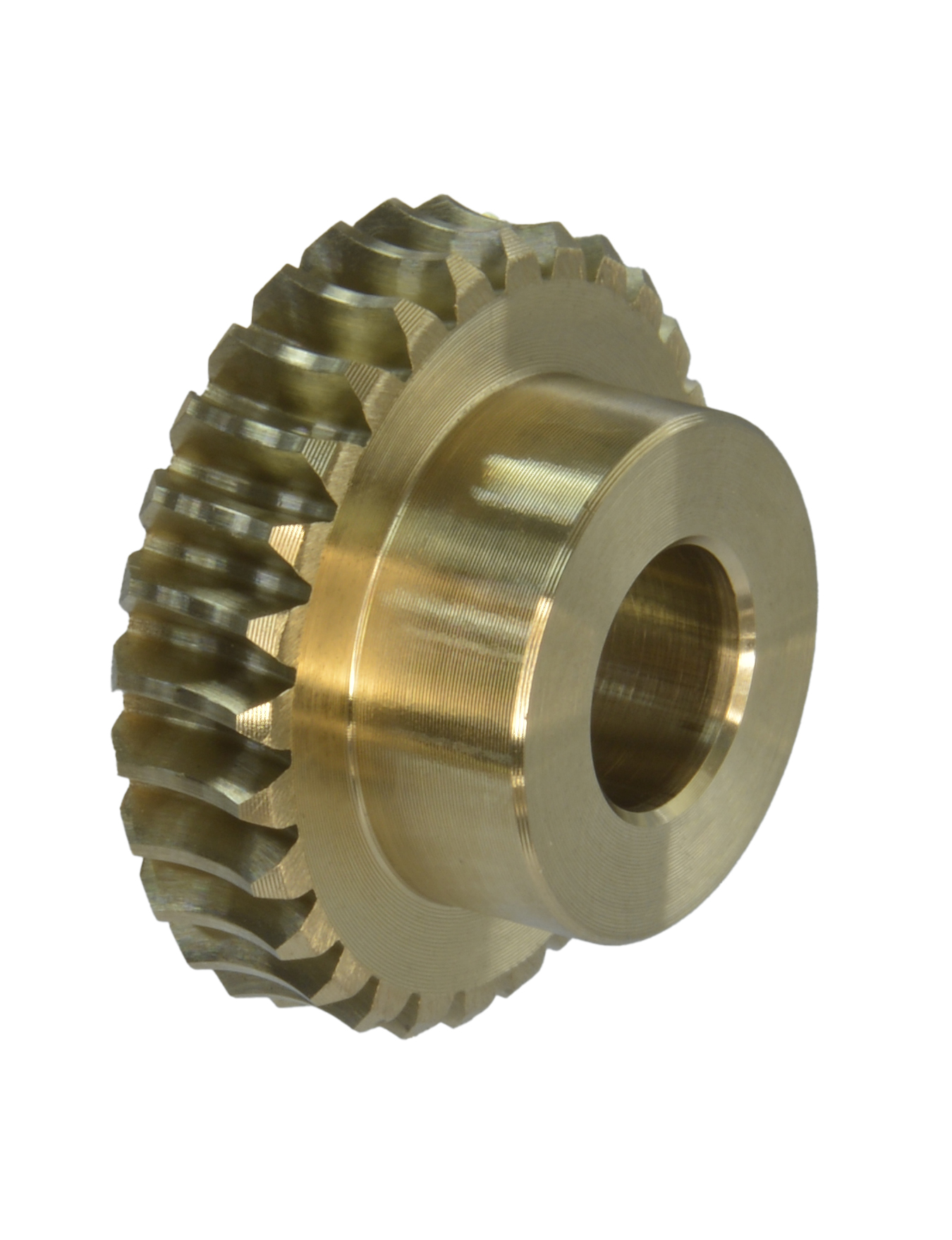

Precision Wormwheels
Precision WormWheels to work on centres with Worms
Ondrives is the UK manufacturer of worms and wheel.
Sku (Part No.) | Gear Tooth Type | Axial Module mx | No. of Starts worm [z1] | No. of Teeth [z] | Centre Distance [a] | Bore Diameter [di] H7 | Torque T₂ [Nm] n1 100 r/min | Material |
---|---|---|---|---|---|---|---|---|
PWG0.5-18-1 | Wormwheel | 0.5 | 1 | 18 | 9.5 | 3 | 0.47 | Bronze CA104 |
PWG0.5-19-1 | Wormwheel | 0.5 | 1 | 19 | 9.75 | 4 | 0.52 | Bronze CA104 |
PWG0.5-20-1 | Wormwheel | 0.5 | 1 | 20 | 10 | 4 | 0.53 | Bronze CA104 |
PWG0.5-21-1 | Wormwheel | 0.5 | 1 | 21 | 10.25 | 4 | 0.58 | Bronze CA104 |
PWG0.5-22-1 | Wormwheel | 0.5 | 1 | 22 | 10.5 | 4 | 0.64 | Bronze CA104 |
PWG0.5-23-1 | Wormwheel | 0.5 | 1 | 23 | 10.75 | 4 | 0.7 | Bronze CA104 |
PWG0.5-24-1 | Wormwheel | 0.5 | 1 | 24 | 11 | 5 | 0.76 | Bronze CA104 |
PWG0.5-25-1 | Wormwheel | 0.5 | 1 | 25 | 11.25 | 5 | 0.82 | Bronze CA104 |
PWG0.5-26-1 | Wormwheel | 0.5 | 1 | 26 | 11.5 | 5 | 0.89 | Bronze CA104 |
PWG0.5-27-1 | Wormwheel | 0.5 | 1 | 27 | 11.75 | 5 | 0.96 | Bronze CA104 |
PWG0.5-28-1 | Wormwheel | 0.5 | 1 | 28 | 12 | 5 | 1.03 | Bronze CA104 |
PWG0.5-29-1 | Wormwheel | 0.5 | 1 | 29 | 12.25 | 6 | 1.1 | Bronze CA104 |
PWG0.5-30-1 | Wormwheel | 0.5 | 1 | 30 | 12.5 | 6 | 1.18 | Bronze CA104 |
PWG0.5-32-1 | Wormwheel | 0.5 | 1 | 32 | 13 | 6 | 1.33 | Bronze CA104 |
PWG0.5-35-1 | Wormwheel | 0.5 | 1 | 35 | 13.75 | 6 | 1.58 | Bronze CA104 |
PWG0.5-38-1 | Wormwheel | 0.5 | 1 | 38 | 14.5 | 6 | 1.85 | Bronze CA104 |
PWG0.5-40-1 | Wormwheel | 0.5 | 1 | 40 | 15 | 6 | 2.04 | Bronze CA104 |
PWG0.5-42-1 | Wormwheel | 0.5 | 1 | 42 | 15.5 | 6 | 2.24 | Bronze CA104 |
PWG0.5-45-1 | Wormwheel | 0.5 | 1 | 45 | 16.25 | 6 | 2.55 | Bronze CA104 |
PWG0.5-48-1 | Wormwheel | 0.5 | 1 | 48 | 17 | 6 | 2.87 | Bronze CA104 |
PWG0.5-50-1 | Wormwheel | 0.5 | 1 | 50 | 17.5 | 6 | 3.09 | Bronze CA104 |
PWG0.5-52-1 | Wormwheel | 0.5 | 1 | 52 | 18 | 6 | 3.32 | Bronze CA104 |
PWG0.5-55-1 | Wormwheel | 0.5 | 1 | 55 | 18.75 | 6 | 3.67 | Bronze CA104 |
PWG0.5-58-1 | Wormwheel | 0.5 | 1 | 58 | 19.5 | 8 | 4.04 | Bronze CA104 |
PWG0.5-60-1 | Wormwheel | 0.5 | 1 | 60 | 20 | 8 | 4.29 | Bronze CA104 |
PWG0.5-62-1 | Wormwheel | 0.5 | 1 | 62 | 20.5 | 8 | 4.55 | Bronze CA104 |
PWG0.5-65-1 | Wormwheel | 0.5 | 1 | 65 | 21.25 | 8 | 4.96 | Bronze CA104 |
PWG0.5-68-1 | Wormwheel | 0.5 | 1 | 68 | 22 | 8 | 5.38 | Bronze CA104 |
PWG0.5-70-1 | Wormwheel | 0.5 | 1 | 70 | 22.5 | 8 | 5.66 | Bronze CA104 |
PWG0.5-72-1 | Wormwheel | 0.5 | 1 | 72 | 23 | 8 | 5.96 | Bronze CA104 |
PWG0.5-75-1 | Wormwheel | 0.5 | 1 | 75 | 23.75 | 8 | 6.35 | Bronze CA104 |
PWG0.5-78-1 | Wormwheel | 0.5 | 1 | 78 | 24.5 | 8 | 6.62 | Bronze CA104 |
PWG0.5-80-1 | Wormwheel | 0.5 | 1 | 80 | 25 | 8 | 6.81 | Bronze CA104 |
PWG0.5-82-1 | Wormwheel | 0.5 | 1 | 82 | 25.5 | 10 | 7 | Bronze CA104 |
PWG0.5-85-1 | Wormwheel | 0.5 | 1 | 85 | 26.25 | 10 | 7.27 | Bronze CA104 |
PWG0.5-90-1 | Wormwheel | 0.5 | 1 | 90 | 27.5 | 10 | 7.74 | Bronze CA104 |
PWG0.5-95-1 | Wormwheel | 0.5 | 1 | 95 | 28.75 | 10 | 8.21 | Bronze CA104 |
PWG0.5-100-1 | Wormwheel | 0.5 | 1 | 100 | 30 | 12 | 8.68 | Bronze CA104 |
PWG0.5-105-1 | Wormwheel | 0.5 | 1 | 105 | 31.25 | 12 | 9.16 | Bronze CA104 |
PWG0.5-110-1 | Wormwheel | 0.5 | 1 | 110 | 32.5 | 12 | 9.64 | Bronze CA104 |
PWG0.5-115-1 | Wormwheel | 0.5 | 1 | 115 | 33.75 | 12 | 10.11 | Bronze CA104 |
PWG0.5-120-1 | Wormwheel | 0.5 | 1 | 120 | 35 | 12 | 10.59 | Bronze CA104 |
PWG0.5-130-1 | Wormwheel | 0.5 | 1 | 130 | 37.5 | 12 | 11.56 | Bronze CA104 |
PWG0.5-140-1 | Wormwheel | 0.5 | 1 | 140 | 40 | 12 | 12.53 | Bronze CA104 |
PWG0.5-150-1 | Wormwheel | 0.5 | 1 | 150 | 42.5 | 12 | 13.51 | Bronze CA104 |
PWG0.5-160-1 | Wormwheel | 0.5 | 1 | 160 | 45 | 14 | 14.5 | Bronze CA104 |
PWG0.5-170-1 | Wormwheel | 0.5 | 1 | 170 | 47.5 | 14 | 15.49 | Bronze CA104 |
PWG0.5-180-1 | Wormwheel | 0.5 | 1 | 180 | 50 | 14 | 16.48 | Bronze CA104 |
PWG0.5-190-1 | Wormwheel | 0.5 | 1 | 190 | 52.5 | 14 | 17.48 | Bronze CA104 |
PWG0.5-200-1 | Wormwheel | 0.5 | 1 | 200 | 55 | 16 | 18.49 | Bronze CA104 |
PWG0.5-210-1 | Wormwheel | 0.5 | 1 | 210 | 57.5 | 16 | 19.5 | Bronze CA104 |
PWG0.5-220-1 | Wormwheel | 0.5 | 1 | 220 | 60 | 16 | 20.51 | Bronze CA104 |
PWG0.5-230-1 | Wormwheel | 0.5 | 1 | 230 | 62.5 | 16 | 21.53 | Bronze CA104 |
PWG0.5-240-1 | Wormwheel | 0.5 | 1 | 240 | 65 | 16 | 22.55 | Bronze CA104 |
PWG0.5-250-1 | Wormwheel | 0.5 | 1 | 250 | 67.5 | 16 | 23.58 | Bronze CA104 |
PWG0.5-18-2 | Wormwheel | 0.5 | 2 | 18 | 9.5 | 3 | 0.44 | Bronze CA104 |
PWG0.5-19-2 | Wormwheel | 0.5 | 2 | 19 | 9.75 | 4 | 0.49 | Bronze CA104 |
PWG0.5-20-2 | Wormwheel | 0.5 | 2 | 20 | 10 | 4 | 0.54 | Bronze CA104 |
PWG0.5-21-2 | Wormwheel | 0.5 | 2 | 21 | 10.25 | 4 | 0.6 | Bronze CA104 |
PWG0.5-22-2 | Wormwheel | 0.5 | 2 | 22 | 10.5 | 4 | 0.66 | Bronze CA104 |
PWG0.5-23-2 | Wormwheel | 0.5 | 2 | 23 | 10.75 | 4 | 0.71 | Bronze CA104 |
PWG0.5-24-2 | Wormwheel | 0.5 | 2 | 24 | 11 | 5 | 0.78 | Bronze CA104 |
PWG0.5-25-2 | Wormwheel | 0.5 | 2 | 25 | 11.25 | 5 | 0.84 | Bronze CA104 |
PWG0.5-26-2 | Wormwheel | 0.5 | 2 | 26 | 11.5 | 5 | 0.9 | Bronze CA104 |
PWG0.5-27-2 | Wormwheel | 0.5 | 2 | 27 | 11.75 | 5 | 0.97 | Bronze CA104 |
PWG0.5-28-2 | Wormwheel | 0.5 | 2 | 28 | 12 | 5 | 1.04 | Bronze CA104 |
PWG0.5-29-2 | Wormwheel | 0.5 | 2 | 29 | 12.25 | 6 | 1.12 | Bronze CA104 |
PWG0.5-30-2 | Wormwheel | 0.5 | 2 | 30 | 12.5 | 6 | 1.19 | Bronze CA104 |
PWG0.5-32-2 | Wormwheel | 0.5 | 2 | 32 | 13 | 6 | 1.35 | Bronze CA104 |
PWG0.5-35-2 | Wormwheel | 0.5 | 2 | 35 | 13.75 | 6 | 1.61 | Bronze CA104 |
PWG0.5-38-2 | Wormwheel | 0.5 | 2 | 38 | 14.5 | 6 | 1.88 | Bronze CA104 |
PWG0.5-40-2 | Wormwheel | 0.5 | 2 | 40 | 15 | 6 | 1.92 | Bronze CA104 |
PWG0.5-42-2 | Wormwheel | 0.5 | 2 | 42 | 15.5 | 6 | 2.12 | Bronze CA104 |
PWG0.5-45-2 | Wormwheel | 0.5 | 2 | 45 | 16.25 | 6 | 2.43 | Bronze CA104 |
PWG0.5-48-2 | Wormwheel | 0.5 | 2 | 48 | 17 | 6 | 2.76 | Bronze CA104 |
PWG0.5-50-2 | Wormwheel | 0.5 | 2 | 50 | 17.5 | 6 | 2.99 | Bronze CA104 |
PWG0.5-52-2 | Wormwheel | 0.5 | 2 | 52 | 18 | 6 | 3.23 | Bronze CA104 |
PWG0.5-55-2 | Wormwheel | 0.5 | 2 | 55 | 18.75 | 6 | 3.61 | Bronze CA104 |
PWG0.5-58-2 | Wormwheel | 0.5 | 2 | 58 | 19.5 | 8 | 4 | Bronze CA104 |
PWG0.5-60-2 | Wormwheel | 0.5 | 2 | 60 | 20 | 8 | 4.27 | Bronze CA104 |
PWG0.5-62-2 | Wormwheel | 0.5 | 2 | 62 | 20.5 | 8 | 4.55 | Bronze CA104 |
PWG0.5-65-2 | Wormwheel | 0.5 | 2 | 65 | 21.25 | 8 | 4.99 | Bronze CA104 |
PWG0.5-68-2 | Wormwheel | 0.5 | 2 | 68 | 22 | 8 | 5.44 | Bronze CA104 |
PWG0.5-70-2 | Wormwheel | 0.5 | 2 | 70 | 22.5 | 8 | 5.7 | Bronze CA104 |
PWG0.5-72-2 | Wormwheel | 0.5 | 2 | 72 | 23 | 8 | 5.86 | Bronze CA104 |
PWG0.5-75-2 | Wormwheel | 0.5 | 2 | 75 | 23.75 | 8 | 6.11 | Bronze CA104 |
PWG0.5-78-2 | Wormwheel | 0.5 | 2 | 78 | 24.5 | 8 | 6.35 | Bronze CA104 |
PWG0.5-80-2 | Wormwheel | 0.5 | 2 | 80 | 25 | 8 | 6.52 | Bronze CA104 |
PWG0.5-82-2 | Wormwheel | 0.5 | 2 | 82 | 25.5 | 10 | 6.68 | Bronze CA104 |
PWG0.5-85-2 | Wormwheel | 0.5 | 2 | 85 | 26.25 | 10 | 6.92 | Bronze CA104 |
PWG0.5-90-2 | Wormwheel | 0.5 | 2 | 90 | 27.5 | 10 | 7.33 | Bronze CA104 |
PWG0.5-95-2 | Wormwheel | 0.5 | 2 | 95 | 28.75 | 10 | 7.74 | Bronze CA104 |
PWG0.5-100-2 | Wormwheel | 0.5 | 2 | 100 | 30 | 12 | 8.15 | Bronze CA104 |
PWG0.5-105-2 | Wormwheel | 0.5 | 2 | 105 | 31.25 | 12 | 8.59 | Bronze CA104 |
PWG0.5-110-2 | Wormwheel | 0.5 | 2 | 110 | 32.5 | 12 | 9.04 | Bronze CA104 |
PWG0.5-115-2 | Wormwheel | 0.5 | 2 | 115 | 33.75 | 12 | 9.49 | Bronze CA104 |
PWG0.5-120-2 | Wormwheel | 0.5 | 2 | 120 | 35 | 12 | 9.94 | Bronze CA104 |
PWG0.5-130-2 | Wormwheel | 0.5 | 2 | 130 | 37.5 | 12 | 10.84 | Bronze CA104 |
PWG0.5-140-2 | Wormwheel | 0.5 | 2 | 140 | 40 | 12 | 11.75 | Bronze CA104 |
PWG0.5-150-2 | Wormwheel | 0.5 | 2 | 150 | 42.5 | 12 | 12.67 | Bronze CA104 |
PWG0.5-160-2 | Wormwheel | 0.5 | 2 | 160 | 45 | 14 | 13.6 | Bronze CA104 |
PWG0.5-170-2 | Wormwheel | 0.5 | 2 | 170 | 47.5 | 14 | 14.52 | Bronze CA104 |
PWG0.5-180-2 | Wormwheel | 0.5 | 2 | 180 | 50 | 14 | 15.46 | Bronze CA104 |
PWG0.5-190-2 | Wormwheel | 0.5 | 2 | 190 | 52.5 | 14 | 16.4 | Bronze CA104 |
PWG0.5-200-2 | Wormwheel | 0.5 | 2 | 200 | 55 | 16 | 17.34 | Bronze CA104 |
PWG0.5-210-2 | Wormwheel | 0.5 | 2 | 210 | 57.5 | 16 | 18.29 | Bronze CA104 |
PWG0.5-220-2 | Wormwheel | 0.5 | 2 | 220 | 60 | 16 | 19.24 | Bronze CA104 |
PWG0.5-230-2 | Wormwheel | 0.5 | 2 | 230 | 62.5 | 16 | 20.19 | Bronze CA104 |
PWG0.5-240-2 | Wormwheel | 0.5 | 2 | 240 | 65 | 16 | 21.15 | Bronze CA104 |
PWG0.5-250-2 | Wormwheel | 0.5 | 2 | 250 | 67.5 | 16 | 22.11 | Bronze CA104 |
PWG0.5-18-3 | Wormwheel | 0.5 | 3 | 18 | 9.5 | 3 | 0.45 | Bronze CA104 |
PWG0.5-19-3 | Wormwheel | 0.5 | 3 | 19 | 9.75 | 4 | 0.49 | Bronze CA104 |
PWG0.5-20-3 | Wormwheel | 0.5 | 3 | 20 | 10 | 4 | 0.55 | Bronze CA104 |
PWG0.5-21-3 | Wormwheel | 0.5 | 3 | 21 | 10.25 | 4 | 0.6 | Bronze CA104 |
PWG0.5-22-3 | Wormwheel | 0.5 | 3 | 22 | 10.5 | 4 | 0.66 | Bronze CA104 |
PWG0.5-23-3 | Wormwheel | 0.5 | 3 | 23 | 10.75 | 4 | 0.72 | Bronze CA104 |
PWG0.5-24-3 | Wormwheel | 0.5 | 3 | 24 | 11 | 5 | 0.78 | Bronze CA104 |
PWG0.5-25-3 | Wormwheel | 0.5 | 3 | 25 | 11.25 | 5 | 0.84 | Bronze CA104 |
PWG0.5-26-3 | Wormwheel | 0.5 | 3 | 26 | 11.5 | 5 | 0.91 | Bronze CA104 |
PWG0.5-27-3 | Wormwheel | 0.5 | 3 | 27 | 11.75 | 5 | 0.98 | Bronze CA104 |
PWG0.5-28-3 | Wormwheel | 0.5 | 3 | 28 | 12 | 5 | 1.05 | Bronze CA104 |
PWG0.5-29-3 | Wormwheel | 0.5 | 3 | 29 | 12.25 | 6 | 1.12 | Bronze CA104 |
PWG0.5-30-3 | Wormwheel | 0.5 | 3 | 30 | 12.5 | 6 | 1.2 | Bronze CA104 |
PWG0.5-32-3 | Wormwheel | 0.5 | 3 | 32 | 13 | 6 | 1.36 | Bronze CA104 |
PWG0.5-35-3 | Wormwheel | 0.5 | 3 | 35 | 13.75 | 6 | 1.62 | Bronze CA104 |
PWG0.5-38-3 | Wormwheel | 0.5 | 3 | 38 | 14.5 | 6 | 1.9 | Bronze CA104 |
PWG0.5-40-3 | Wormwheel | 0.5 | 3 | 40 | 15 | 6 | 2.09 | Bronze CA104 |
PWG0.5-42-3 | Wormwheel | 0.5 | 3 | 42 | 15.5 | 6 | 2.3 | Bronze CA104 |
PWG0.5-45-3 | Wormwheel | 0.5 | 3 | 45 | 16.25 | 6 | 2.63 | Bronze CA104 |
PWG0.5-48-3 | Wormwheel | 0.5 | 3 | 48 | 17 | 6 | 2.98 | Bronze CA104 |
PWG0.5-50-3 | Wormwheel | 0.5 | 3 | 50 | 17.5 | 6 | 3.22 | Bronze CA104 |
PWG0.5-52-3 | Wormwheel | 0.5 | 3 | 52 | 18 | 6 | 3.47 | Bronze CA104 |
PWG0.5-55-3 | Wormwheel | 0.5 | 3 | 55 | 18.75 | 6 | 3.87 | Bronze CA104 |
PWG0.5-58-3 | Wormwheel | 0.5 | 3 | 58 | 19.5 | 8 | 4.29 | Bronze CA104 |
PWG0.5-60-3 | Wormwheel | 0.5 | 3 | 60 | 20 | 8 | 4.23 | Bronze CA104 |
PWG0.5-62-3 | Wormwheel | 0.5 | 3 | 62 | 20.5 | 8 | 4.52 | Bronze CA104 |
PWG0.5-65-3 | Wormwheel | 0.5 | 3 | 65 | 21.25 | 8 | 4.97 | Bronze CA104 |
PWG0.5-68-3 | Wormwheel | 0.5 | 3 | 68 | 22 | 8 | 5.43 | Bronze CA104 |
PWG0.5-70-3 | Wormwheel | 0.5 | 3 | 70 | 22.5 | 8 | 5.69 | Bronze CA104 |
PWG0.5-72-3 | Wormwheel | 0.5 | 3 | 72 | 23 | 8 | 5.85 | Bronze CA104 |
PWG0.5-75-3 | Wormwheel | 0.5 | 3 | 75 | 23.75 | 8 | 6.09 | Bronze CA104 |
PWG0.5-78-3 | Wormwheel | 0.5 | 3 | 78 | 24.5 | 8 | 6.34 | Bronze CA104 |
PWG0.5-80-3 | Wormwheel | 0.5 | 3 | 80 | 25 | 8 | 6.5 | Bronze CA104 |
PWG0.5-82-3 | Wormwheel | 0.5 | 3 | 82 | 25.5 | 10 | 6.66 | Bronze CA104 |
PWG0.5-85-3 | Wormwheel | 0.5 | 3 | 85 | 26.25 | 10 | 6.9 | Bronze CA104 |
PWG0.5-90-3 | Wormwheel | 0.5 | 3 | 90 | 27.5 | 10 | 7.31 | Bronze CA104 |
PWG0.5-95-3 | Wormwheel | 0.5 | 3 | 95 | 28.75 | 10 | 7.72 | Bronze CA104 |
PWG0.5-100-3 | Wormwheel | 0.5 | 3 | 100 | 30 | 12 | 8.12 | Bronze CA104 |
PWG0.5-105-3 | Wormwheel | 0.5 | 3 | 105 | 31.25 | 12 | N/A | Bronze CA104 |
PWG0.5-110-3 | Wormwheel | 0.5 | 3 | 110 | 32.5 | 12 | 8.94 | Bronze CA104 |
PWG0.5-115-3 | Wormwheel | 0.5 | 3 | 115 | 33.75 | 12 | 9.34 | Bronze CA104 |
PWG0.5-120-3 | Wormwheel | 0.5 | 3 | 120 | 35 | 12 | 9.75 | Bronze CA104 |
PWG0.5-130-3 | Wormwheel | 0.5 | 3 | 130 | 37.5 | 12 | 10.56 | Bronze CA104 |
PWG0.5-140-3 | Wormwheel | 0.5 | 3 | 140 | 40 | 12 | 11.37 | Bronze CA104 |
PWG0.5-150-3 | Wormwheel | 0.5 | 3 | 150 | 42.5 | 12 | 12.19 | Bronze CA104 |
PWG0.5-160-3 | Wormwheel | 0.5 | 3 | 160 | 45 | 14 | 13.07 | Bronze CA104 |
PWG0.5-170-3 | Wormwheel | 0.5 | 3 | 170 | 47.5 | 14 | 13.97 | Bronze CA104 |
PWG0.5-180-3 | Wormwheel | 0.5 | 3 | 180 | 50 | 14 | 14.86 | Bronze CA104 |
PWG0.5-190-3 | Wormwheel | 0.5 | 3 | 190 | 52.5 | 14 | 15.77 | Bronze CA104 |
PWG0.5-200-3 | Wormwheel | 0.5 | 3 | 200 | 55 | 16 | 16.67 | Bronze CA104 |
PWG0.5-210-3 | Wormwheel | 0.5 | 3 | 210 | 57.5 | 16 | 17.58 | Bronze CA104 |
PWG0.5-220-3 | Wormwheel | 0.5 | 3 | 220 | 60 | 16 | 18.5 | Bronze CA104 |
PWG0.5-230-3 | Wormwheel | 0.5 | 3 | 230 | 62.5 | 16 | 19.42 | Bronze CA104 |
PWG0.5-240-3 | Wormwheel | 0.5 | 3 | 240 | 65 | 16 | 20.34 | Bronze CA104 |
PWG0.5-250-3 | Wormwheel | 0.5 | 3 | 250 | 67.5 | 16 | 21.26 | Bronze CA104 |
PWG0.5-18-4 | Wormwheel | 0.5 | 4 | 18 | 9.5 | 3 | 0.46 | Bronze CA104 |
PWG0.5-19-4 | Wormwheel | 0.5 | 4 | 19 | 9.75 | 4 | 0.51 | Bronze CA104 |
PWG0.5-20-4 | Wormwheel | 0.5 | 4 | 20 | 10 | 4 | 0.56 | Bronze CA104 |
PWG0.5-21-4 | Wormwheel | 0.5 | 4 | 21 | 10.25 | 4 | 0.62 | Bronze CA104 |
PWG0.5-22-4 | Wormwheel | 0.5 | 4 | 22 | 10.5 | 4 | 0.68 | Bronze CA104 |
PWG0.5-23-4 | Wormwheel | 0.5 | 4 | 23 | 10.75 | 4 | 0.74 | Bronze CA104 |
PWG0.5-24-4 | Wormwheel | 0.5 | 4 | 24 | 11 | 5 | 0.8 | Bronze CA104 |
PWG0.5-25-4 | Wormwheel | 0.5 | 4 | 25 | 11.25 | 5 | 0.87 | Bronze CA104 |
PWG0.5-26-4 | Wormwheel | 0.5 | 4 | 26 | 11.5 | 5 | 0.94 | Bronze CA104 |
PWG0.5-27-4 | Wormwheel | 0.5 | 4 | 27 | 11.75 | 5 | 1.01 | Bronze CA104 |
PWG0.5-28-4 | Wormwheel | 0.5 | 4 | 28 | 12 | 5 | 1.08 | Bronze CA104 |
PWG0.5-29-4 | Wormwheel | 0.5 | 4 | 29 | 12.25 | 6 | 1.16 | Bronze CA104 |
PWG0.5-30-4 | Wormwheel | 0.5 | 4 | 30 | 12.5 | 6 | 1.24 | Bronze CA104 |
PWG0.5-32-4 | Wormwheel | 0.5 | 4 | 32 | 13 | 6 | 1.4 | Bronze CA104 |
PWG0.5-35-4 | Wormwheel | 0.5 | 4 | 35 | 13.75 | 6 | 1.67 | Bronze CA104 |
PWG0.5-38-4 | Wormwheel | 0.5 | 4 | 38 | 14.5 | 6 | 1.96 | Bronze CA104 |
PWG0.5-40-4 | Wormwheel | 0.5 | 4 | 40 | 15 | 6 | 2.16 | Bronze CA104 |
PWG0.5-42-4 | Wormwheel | 0.5 | 4 | 42 | 15.5 | 6 | 2.38 | Bronze CA104 |
PWG0.5-45-4 | Wormwheel | 0.5 | 4 | 45 | 16.25 | 6 | 2.72 | Bronze CA104 |
PWG0.5-48-4 | Wormwheel | 0.5 | 4 | 48 | 17 | 6 | 3.08 | Bronze CA104 |
PWG0.5-50-4 | Wormwheel | 0.5 | 4 | 50 | 17.5 | 6 | 3.33 | Bronze CA104 |
PWG0.5-52-4 | Wormwheel | 0.5 | 4 | 52 | 18 | 6 | 3.59 | Bronze CA104 |
PWG0.5-55-4 | Wormwheel | 0.5 | 4 | 55 | 18.75 | 6 | 4 | Bronze CA104 |
PWG0.5-58-4 | Wormwheel | 0.5 | 4 | 58 | 19.5 | 8 | 4.43 | Bronze CA104 |
PWG0.5-60-4 | Wormwheel | 0.5 | 4 | 60 | 20 | 8 | 4.73 | Bronze CA104 |
PWG0.5-62-4 | Wormwheel | 0.5 | 4 | 62 | 20.5 | 8 | 5.02 | Bronze CA104 |
PWG0.5-65-4 | Wormwheel | 0.5 | 4 | 65 | 21.25 | 8 | 5.26 | Bronze CA104 |
PWG0.5-68-4 | Wormwheel | 0.5 | 4 | 68 | 22 | 8 | 5.5 | Bronze CA104 |
PWG0.5-70-4 | Wormwheel | 0.5 | 4 | 70 | 22.5 | 8 | 5.67 | Bronze CA104 |
PWG0.5-72-4 | Wormwheel | 0.5 | 4 | 72 | 23 | 8 | 5.83 | Bronze CA104 |
PWG0.5-75-4 | Wormwheel | 0.5 | 4 | 75 | 23.75 | 8 | 6.07 | Bronze CA104 |
PWG0.5-78-4 | Wormwheel | 0.5 | 4 | 78 | 24.5 | 8 | 6.31 | Bronze CA104 |
PWG0.5-80-4 | Wormwheel | 0.5 | 4 | 80 | 25 | 8 | 6.47 | Bronze CA104 |
PWG0.5-82-4 | Wormwheel | 0.5 | 4 | 82 | 25.5 | 10 | 6.64 | Bronze CA104 |
PWG0.5-85-4 | Wormwheel | 0.5 | 4 | 85 | 26.25 | 10 | 6.88 | Bronze CA104 |
PWG0.5-90-4 | Wormwheel | 0.5 | 4 | 90 | 27.5 | 10 | 7.28 | Bronze CA104 |
PWG0.5-95-4 | Wormwheel | 0.5 | 4 | 95 | 28.75 | 10 | 7.69 | Bronze CA104 |
PWG0.5-100-4 | Wormwheel | 0.5 | 4 | 100 | 30 | 12 | 8.09 | Bronze CA104 |
PWG0.5-105-4 | Wormwheel | 0.5 | 4 | 105 | 31.25 | 12 | 8.5 | Bronze CA104 |
PWG0.5-110-4 | Wormwheel | 0.5 | 4 | 110 | 32.5 | 12 | 8.9 | Bronze CA104 |
PWG0.5-115-4 | Wormwheel | 0.5 | 4 | 115 | 33.75 | 12 | 9.31 | Bronze CA104 |
PWG0.5-120-4 | Wormwheel | 0.5 | 4 | 120 | 35 | 12 | 9.71 | Bronze CA104 |
PWG0.5-130-4 | Wormwheel | 0.5 | 4 | 130 | 37.5 | 12 | 10.52 | Bronze CA104 |
PWG0.5-140-4 | Wormwheel | 0.5 | 4 | 140 | 40 | 12 | 11.33 | Bronze CA104 |
PWG0.5-150-4 | Wormwheel | 0.5 | 4 | 150 | 42.5 | 12 | 12.14 | Bronze CA104 |
PWG0.5-160-4 | Wormwheel | 0.5 | 4 | 160 | 45 | 14 | 12.95 | Bronze CA104 |
PWG0.5-170-4 | Wormwheel | 0.5 | 4 | 170 | 47.5 | 14 | 13.76 | Bronze CA104 |
PWG0.5-180-4 | Wormwheel | 0.5 | 4 | 180 | 50 | 14 | 14.57 | Bronze CA104 |
PWG0.5-190-4 | Wormwheel | 0.5 | 4 | 190 | 52.5 | 14 | 15.38 | Bronze CA104 |
PWG0.5-200-4 | Wormwheel | 0.5 | 4 | 200 | 55 | 16 | 16.19 | Bronze CA104 |
PWG0.5-210-4 | Wormwheel | 0.5 | 4 | 210 | 57.5 | 16 | 17.07 | Bronze CA104 |
PWG0.5-220-4 | Wormwheel | 0.5 | 4 | 220 | 60 | 16 | 17.96 | Bronze CA104 |
PWG0.5-230-4 | Wormwheel | 0.5 | 4 | 230 | 62.5 | 16 | 18.85 | Bronze CA104 |
PWG0.5-240-4 | Wormwheel | 0.5 | 4 | 240 | 65 | 16 | 19.75 | Bronze CA104 |
PWG0.5-250-4 | Wormwheel | 0.5 | 4 | 250 | 67.5 | 16 | 20.64 | Bronze CA104 |
PWG0.5-18-1PK | Wormwheel | 0.5 | 1 | 18 | 9.5 | 3 | 0.28 | PEEK GF 30 |
PWG0.5-19-1PK | Wormwheel | 0.5 | 1 | 19 | 9.75 | 4 | 0.31 | PEEK GF 30 |
PWG0.5-20-1PK | Wormwheel | 0.5 | 1 | 20 | 10 | 4 | 0.32 | PEEK GF 30 |
PWG0.5-21-1PK | Wormwheel | 0.5 | 1 | 21 | 10.25 | 4 | 0.35 | PEEK GF 30 |
PWG0.5-22-1PK | Wormwheel | 0.5 | 1 | 22 | 10.5 | 4 | 0.38 | PEEK GF 30 |
PWG0.5-23-1PK | Wormwheel | 0.5 | 1 | 23 | 10.75 | 4 | 0.42 | PEEK GF 30 |
PWG0.5-24-1PK | Wormwheel | 0.5 | 1 | 24 | 11 | 5 | 0.46 | PEEK GF 30 |
PWG0.5-25-1PK | Wormwheel | 0.5 | 1 | 25 | 11.25 | 5 | 0.49 | PEEK GF 30 |
PWG0.5-26-1PK | Wormwheel | 0.5 | 1 | 26 | 11.5 | 5 | 0.53 | PEEK GF 30 |
PWG0.5-27-1PK | Wormwheel | 0.5 | 1 | 27 | 11.75 | 5 | 0.57 | PEEK GF 30 |
PWG0.5-28-1PK | Wormwheel | 0.5 | 1 | 28 | 12 | 5 | 0.62 | PEEK GF 30 |
PWG0.5-29-1PK | Wormwheel | 0.5 | 1 | 29 | 12.25 | 6 | 0.66 | PEEK GF 30 |
PWG0.5-30-1PK | Wormwheel | 0.5 | 1 | 30 | 12.5 | 6 | 0.71 | PEEK GF 30 |
PWG0.5-32-1PK | Wormwheel | 0.5 | 1 | 32 | 13 | 6 | 0.8 | PEEK GF 30 |
PWG0.5-35-1PK | Wormwheel | 0.5 | 1 | 35 | 13.75 | 6 | 0.95 | PEEK GF 30 |
PWG0.5-38-1PK | Wormwheel | 0.5 | 1 | 38 | 14.5 | 6 | 1.11 | PEEK GF 30 |
PWG0.5-40-1PK | Wormwheel | 0.5 | 1 | 40 | 15 | 6 | 1.23 | PEEK GF 30 |
PWG0.5-42-1PK | Wormwheel | 0.5 | 1 | 42 | 15.5 | 6 | 1.34 | PEEK GF 30 |
PWG0.5-45-1PK | Wormwheel | 0.5 | 1 | 45 | 16.25 | 6 | 1.53 | PEEK GF 30 |
PWG0.5-48-1PK | Wormwheel | 0.5 | 1 | 48 | 17 | 6 | 1.72 | PEEK GF 30 |
PWG0.5-50-1PK | Wormwheel | 0.5 | 1 | 50 | 17.5 | 6 | 1.85 | PEEK GF 30 |
PWG0.5-52-1PK | Wormwheel | 0.5 | 1 | 52 | 18 | 6 | 1.99 | PEEK GF 30 |
PWG0.5-55-1PK | Wormwheel | 0.5 | 1 | 55 | 18.75 | 6 | 2.2 | PEEK GF 30 |
PWG0.5-58-1PK | Wormwheel | 0.5 | 1 | 58 | 19.5 | 8 | 2.42 | PEEK GF 30 |
PWG0.5-60-1PK | Wormwheel | 0.5 | 1 | 60 | 20 | 8 | 2.57 | PEEK GF 30 |
PWG0.5-62-1PK | Wormwheel | 0.5 | 1 | 62 | 20.5 | 8 | 2.73 | PEEK GF 30 |
PWG0.5-65-1PK | Wormwheel | 0.5 | 1 | 65 | 21.25 | 8 | 2.97 | PEEK GF 30 |
PWG0.5-68-1PK | Wormwheel | 0.5 | 1 | 68 | 22 | 8 | 3.23 | PEEK GF 30 |
PWG0.5-70-1PK | Wormwheel | 0.5 | 1 | 70 | 22.5 | 8 | 3.4 | PEEK GF 30 |
PWG0.5-72-1PK | Wormwheel | 0.5 | 1 | 72 | 23 | 8 | 3.57 | PEEK GF 30 |
PWG0.5-75-1PK | Wormwheel | 0.5 | 1 | 75 | 23.75 | 8 | 3.81 | PEEK GF 30 |
PWG0.5-78-1PK | Wormwheel | 0.5 | 1 | 78 | 24.5 | 8 | 3.97 | PEEK GF 30 |
PWG0.5-80-1PK | Wormwheel | 0.5 | 1 | 80 | 25 | 8 | 4.09 | PEEK GF 30 |
PWG0.5-82-1PK | Wormwheel | 0.5 | 1 | 82 | 25.5 | 10 | 4.2 | PEEK GF 30 |
PWG0.5-85-1PK | Wormwheel | 0.5 | 1 | 85 | 26.25 | 10 | 4.36 | PEEK GF 30 |
PWG0.5-90-1PK | Wormwheel | 0.5 | 1 | 90 | 27.5 | 10 | 4.65 | PEEK GF 30 |
PWG0.5-95-1PK | Wormwheel | 0.5 | 1 | 95 | 28.75 | 10 | 4.93 | PEEK GF 30 |
PWG0.5-100-1PK | Wormwheel | 0.5 | 1 | 100 | 30 | 12 | 5.21 | PEEK GF 30 |
PWG0.5-105-1PK | Wormwheel | 0.5 | 1 | 105 | 31.25 | 12 | 5.5 | PEEK GF 30 |
PWG0.5-110-1PK | Wormwheel | 0.5 | 1 | 110 | 32.5 | 12 | 5.78 | PEEK GF 30 |
PWG0.5-115-1PK | Wormwheel | 0.5 | 1 | 115 | 33.75 | 12 | 6.07 | PEEK GF 30 |
PWG0.5-120-1PK | Wormwheel | 0.5 | 1 | 120 | 35 | 12 | 6.36 | PEEK GF 30 |
PWG0.5-130-1PK | Wormwheel | 0.5 | 1 | 130 | 37.5 | 12 | 6.94 | PEEK GF 30 |
PWG0.5-140-1PK | Wormwheel | 0.5 | 1 | 140 | 40 | 12 | 7.52 | PEEK GF 30 |
PWG0.5-150-1PK | Wormwheel | 0.5 | 1 | 150 | 42.5 | 12 | 8.11 | PEEK GF 30 |
PWG0.5-160-1PK | Wormwheel | 0.5 | 1 | 160 | 45 | 14 | 8.7 | PEEK GF 30 |
PWG0.5-170-1PK | Wormwheel | 0.5 | 1 | 170 | 47.5 | 14 | 9.29 | PEEK GF 30 |
PWG0.5-180-1PK | Wormwheel | 0.5 | 1 | 180 | 50 | 14 | 9.89 | PEEK GF 30 |
PWG0.5-190-1PK | Wormwheel | 0.5 | 1 | 190 | 52.5 | 14 | 10.49 | PEEK GF 30 |
PWG0.5-200-1PK | Wormwheel | 0.5 | 1 | 200 | 55 | 16 | 11.09 | PEEK GF 30 |
PWG0.5-210-1PK | Wormwheel | 0.5 | 1 | 210 | 57.5 | 16 | 11.7 | PEEK GF 30 |
PWG0.5-220-1PK | Wormwheel | 0.5 | 1 | 220 | 60 | 16 | 12.31 | PEEK GF 30 |
PWG0.5-230-1PK | Wormwheel | 0.5 | 1 | 230 | 62.5 | 16 | 12.92 | PEEK GF 30 |
PWG0.5-240-1PK | Wormwheel | 0.5 | 1 | 240 | 65 | 16 | 13.53 | PEEK GF 30 |
PWG0.5-250-1PK | Wormwheel | 0.5 | 1 | 250 | 67.5 | 16 | 14.15 | PEEK GF 30 |
PWG0.5-18-2PK | Wormwheel | 0.5 | 2 | 18 | 9.5 | 3 | 0.27 | PEEK GF 30 |
PWG0.5-19-2PK | Wormwheel | 0.5 | 2 | 19 | 9.75 | 4 | 0.3 | PEEK GF 30 |
PWG0.5-20-2PK | Wormwheel | 0.5 | 2 | 20 | 10 | 4 | 0.33 | PEEK GF 30 |
PWG0.5-21-2PK | Wormwheel | 0.5 | 2 | 21 | 10.25 | 4 | 0.36 | PEEK GF 30 |
PWG0.5-22-2PK | Wormwheel | 0.5 | 2 | 22 | 10.5 | 4 | 0.39 | PEEK GF 30 |
PWG0.5-23-2PK | Wormwheel | 0.5 | 2 | 23 | 10.75 | 4 | 0.43 | PEEK GF 30 |
PWG0.5-24-2PK | Wormwheel | 0.5 | 2 | 24 | 11 | 5 | 0.47 | PEEK GF 30 |
PWG0.5-25-2PK | Wormwheel | 0.5 | 2 | 25 | 11.25 | 5 | 0.5 | PEEK GF 30 |
PWG0.5-26-2PK | Wormwheel | 0.5 | 2 | 26 | 11.5 | 5 | 0.54 | PEEK GF 30 |
PWG0.5-27-2PK | Wormwheel | 0.5 | 2 | 27 | 11.75 | 5 | 0.58 | PEEK GF 30 |
PWG0.5-28-2PK | Wormwheel | 0.5 | 2 | 28 | 12 | 5 | 0.63 | PEEK GF 30 |
PWG0.5-29-2PK | Wormwheel | 0.5 | 2 | 29 | 12.25 | 6 | 0.67 | PEEK GF 30 |
PWG0.5-30-2PK | Wormwheel | 0.5 | 2 | 30 | 12.5 | 6 | 0.72 | PEEK GF 30 |
PWG0.5-32-2PK | Wormwheel | 0.5 | 2 | 32 | 13 | 6 | 0.81 | PEEK GF 30 |
PWG0.5-35-2PK | Wormwheel | 0.5 | 2 | 35 | 13.75 | 6 | 0.96 | PEEK GF 30 |
PWG0.5-38-2PK | Wormwheel | 0.5 | 2 | 38 | 14.5 | 6 | 1.13 | PEEK GF 30 |
PWG0.5-40-2PK | Wormwheel | 0.5 | 2 | 40 | 15 | 6 | 1.15 | PEEK GF 30 |
PWG0.5-42-2PK | Wormwheel | 0.5 | 2 | 42 | 15.5 | 6 | 1.27 | PEEK GF 30 |
PWG0.5-45-2PK | Wormwheel | 0.5 | 2 | 45 | 16.25 | 6 | 1.46 | PEEK GF 30 |
PWG0.5-48-2PK | Wormwheel | 0.5 | 2 | 48 | 17 | 6 | 1.66 | PEEK GF 30 |
PWG0.5-50-2PK | Wormwheel | 0.5 | 2 | 50 | 17.5 | 6 | 1.8 | PEEK GF 30 |
PWG0.5-52-2PK | Wormwheel | 0.5 | 2 | 52 | 18 | 6 | 1.94 | PEEK GF 30 |
PWG0.5-55-2PK | Wormwheel | 0.5 | 2 | 55 | 18.75 | 6 | 2.16 | PEEK GF 30 |
PWG0.5-58-2PK | Wormwheel | 0.5 | 2 | 58 | 19.5 | 8 | 2.4 | PEEK GF 30 |
PWG0.5-60-2PK | Wormwheel | 0.5 | 2 | 60 | 20 | 8 | 2.56 | PEEK GF 30 |
PWG0.5-62-2PK | Wormwheel | 0.5 | 2 | 62 | 20.5 | 8 | 2.73 | PEEK GF 30 |
PWG0.5-65-2PK | Wormwheel | 0.5 | 2 | 65 | 21.25 | 8 | 2.99 | PEEK GF 30 |
PWG0.5-68-2PK | Wormwheel | 0.5 | 2 | 68 | 22 | 8 | 3.26 | PEEK GF 30 |
PWG0.5-70-2PK | Wormwheel | 0.5 | 2 | 70 | 22.5 | 8 | 3.42 | PEEK GF 30 |
PWG0.5-72-2PK | Wormwheel | 0.5 | 2 | 72 | 23 | 8 | 3.52 | PEEK GF 30 |
PWG0.5-75-2PK | Wormwheel | 0.5 | 2 | 75 | 23.75 | 8 | 3.67 | PEEK GF 30 |
PWG0.5-78-2PK | Wormwheel | 0.5 | 2 | 78 | 24.5 | 8 | 3.81 | PEEK GF 30 |
PWG0.5-80-2PK | Wormwheel | 0.5 | 2 | 80 | 25 | 8 | 3.91 | PEEK GF 30 |
PWG0.5-82-2PK | Wormwheel | 0.5 | 2 | 82 | 25.5 | 10 | 4.01 | PEEK GF 30 |
PWG0.5-85-2PK | Wormwheel | 0.5 | 2 | 85 | 26.25 | 10 | 4.15 | PEEK GF 30 |
PWG0.5-90-2PK | Wormwheel | 0.5 | 2 | 90 | 27.5 | 10 | 4.4 | PEEK GF 30 |
PWG0.5-95-2PK | Wormwheel | 0.5 | 2 | 95 | 28.75 | 10 | 4.64 | PEEK GF 30 |
PWG0.5-100-2PK | Wormwheel | 0.5 | 2 | 100 | 30 | 12 | 4.89 | PEEK GF 30 |
PWG0.5-105-2PK | Wormwheel | 0.5 | 2 | 105 | 31.25 | 12 | 5.15 | PEEK GF 30 |
PWG0.5-110-2PK | Wormwheel | 0.5 | 2 | 110 | 32.5 | 12 | 5.42 | PEEK GF 30 |
PWG0.5-115-2PK | Wormwheel | 0.5 | 2 | 115 | 33.75 | 12 | 5.69 | PEEK GF 30 |
PWG0.5-120-2PK | Wormwheel | 0.5 | 2 | 120 | 35 | 12 | 5.96 | PEEK GF 30 |
PWG0.5-130-2PK | Wormwheel | 0.5 | 2 | 130 | 37.5 | 12 | 6.51 | PEEK GF 30 |
PWG0.5-140-2PK | Wormwheel | 0.5 | 2 | 140 | 40 | 12 | 7.05 | PEEK GF 30 |
PWG0.5-150-2PK | Wormwheel | 0.5 | 2 | 150 | 42.5 | 12 | 7.6 | PEEK GF 30 |
PWG0.5-160-2PK | Wormwheel | 0.5 | 2 | 160 | 45 | 14 | 8.16 | PEEK GF 30 |
PWG0.5-170-2PK | Wormwheel | 0.5 | 2 | 170 | 47.5 | 14 | 8.71 | PEEK GF 30 |
PWG0.5-180-2PK | Wormwheel | 0.5 | 2 | 180 | 50 | 14 | 9.28 | PEEK GF 30 |
PWG0.5-190-2PK | Wormwheel | 0.5 | 2 | 190 | 52.5 | 14 | 9.84 | PEEK GF 30 |
PWG0.5-200-2PK | Wormwheel | 0.5 | 2 | 200 | 55 | 16 | 10.4 | PEEK GF 30 |
PWG0.5-210-2PK | Wormwheel | 0.5 | 2 | 210 | 57.5 | 16 | 10.97 | PEEK GF 30 |
PWG0.5-220-2PK | Wormwheel | 0.5 | 2 | 220 | 60 | 16 | 11.54 | PEEK GF 30 |
PWG0.5-230-2PK | Wormwheel | 0.5 | 2 | 230 | 62.5 | 16 | 12.12 | PEEK GF 30 |
PWG0.5-240-2PK | Wormwheel | 0.5 | 2 | 240 | 65 | 16 | 12.69 | PEEK GF 30 |
PWG0.5-250-2PK | Wormwheel | 0.5 | 2 | 250 | 67.5 | 16 | 13.27 | PEEK GF 30 |
PWG0.5-18-3PK | Wormwheel | 0.5 | 3 | 18 | 9.5 | 3 | 0.27 | PEEK GF 30 |
PWG0.5-19-3PK | Wormwheel | 0.5 | 3 | 19 | 9.75 | 4 | 0.3 | PEEK GF 30 |
PWG0.5-20-3PK | Wormwheel | 0.5 | 3 | 20 | 10 | 4 | 0.33 | PEEK GF 30 |
PWG0.5-21-3PK | Wormwheel | 0.5 | 3 | 21 | 10.25 | 4 | 0.36 | PEEK GF 30 |
PWG0.5-22-3PK | Wormwheel | 0.5 | 3 | 22 | 10.5 | 4 | 0.39 | PEEK GF 30 |
PWG0.5-23-3PK | Wormwheel | 0.5 | 3 | 23 | 10.75 | 4 | 0.43 | PEEK GF 30 |
PWG0.5-24-3PK | Wormwheel | 0.5 | 3 | 24 | 11 | 5 | 0.47 | PEEK GF 30 |
PWG0.5-25-3PK | Wormwheel | 0.5 | 3 | 25 | 11.25 | 5 | 0.51 | PEEK GF 30 |
PWG0.5-26-3PK | Wormwheel | 0.5 | 3 | 26 | 11.5 | 5 | 0.55 | PEEK GF 30 |
PWG0.5-27-3PK | Wormwheel | 0.5 | 3 | 27 | 11.75 | 5 | 0.59 | PEEK GF 30 |
PWG0.5-28-3PK | Wormwheel | 0.5 | 3 | 28 | 12 | 5 | 0.63 | PEEK GF 30 |
PWG0.5-29-3PK | Wormwheel | 0.5 | 3 | 29 | 12.25 | 6 | 0.67 | PEEK GF 30 |
PWG0.5-30-3PK | Wormwheel | 0.5 | 3 | 30 | 12.5 | 6 | 0.72 | PEEK GF 30 |
PWG0.5-32-3PK | Wormwheel | 0.5 | 3 | 32 | 13 | 6 | 0.82 | PEEK GF 30 |
PWG0.5-35-3PK | Wormwheel | 0.5 | 3 | 35 | 13.75 | 6 | 0.97 | PEEK GF 30 |
PWG0.5-38-3PK | Wormwheel | 0.5 | 3 | 38 | 14.5 | 6 | 1.14 | PEEK GF 30 |
PWG0.5-40-3PK | Wormwheel | 0.5 | 3 | 40 | 15 | 6 | 1.26 | PEEK GF 30 |
PWG0.5-42-3PK | Wormwheel | 0.5 | 3 | 42 | 15.5 | 6 | 1.38 | PEEK GF 30 |
PWG0.5-45-3PK | Wormwheel | 0.5 | 3 | 45 | 16.25 | 6 | 1.58 | PEEK GF 30 |
PWG0.5-48-3PK | Wormwheel | 0.5 | 3 | 48 | 17 | 6 | 1.79 | PEEK GF 30 |
PWG0.5-50-3PK | Wormwheel | 0.5 | 3 | 50 | 17.5 | 6 | 1.93 | PEEK GF 30 |
PWG0.5-52-3PK | Wormwheel | 0.5 | 3 | 52 | 18 | 6 | 2.08 | PEEK GF 30 |
PWG0.5-55-3PK | Wormwheel | 0.5 | 3 | 55 | 18.75 | 6 | 2.32 | PEEK GF 30 |
PWG0.5-58-3PK | Wormwheel | 0.5 | 3 | 58 | 19.5 | 8 | 2.57 | PEEK GF 30 |
PWG0.5-60-3PK | Wormwheel | 0.5 | 3 | 60 | 20 | 8 | 2.54 | PEEK GF 30 |
PWG0.5-62-3PK | Wormwheel | 0.5 | 3 | 62 | 20.5 | 8 | 2.71 | PEEK GF 30 |
PWG0.5-65-3PK | Wormwheel | 0.5 | 3 | 65 | 21.25 | 8 | 2.98 | PEEK GF 30 |
PWG0.5-68-3PK | Wormwheel | 0.5 | 3 | 68 | 22 | 8 | 3.26 | PEEK GF 30 |
PWG0.5-70-3PK | Wormwheel | 0.5 | 3 | 70 | 22.5 | 8 | 3.41 | PEEK GF 30 |
PWG0.5-72-3PK | Wormwheel | 0.5 | 3 | 72 | 23 | 8 | 3.51 | PEEK GF 30 |
PWG0.5-75-3PK | Wormwheel | 0.5 | 3 | 75 | 23.75 | 8 | 3.66 | PEEK GF 30 |
PWG0.5-78-3PK | Wormwheel | 0.5 | 3 | 78 | 24.5 | 8 | 3.8 | PEEK GF 30 |
PWG0.5-80-3PK | Wormwheel | 0.5 | 3 | 80 | 25 | 8 | 3.9 | PEEK GF 30 |
PWG0.5-82-3PK | Wormwheel | 0.5 | 3 | 82 | 25.5 | 10 | 4 | PEEK GF 30 |
PWG0.5-85-3PK | Wormwheel | 0.5 | 3 | 85 | 26.25 | 10 | 4.14 | PEEK GF 30 |
PWG0.5-90-3PK | Wormwheel | 0.5 | 3 | 90 | 27.5 | 10 | 4.39 | PEEK GF 30 |
PWG0.5-95-3PK | Wormwheel | 0.5 | 3 | 95 | 28.75 | 10 | 4.63 | PEEK GF 30 |
PWG0.5-100-3PK | Wormwheel | 0.5 | 3 | 100 | 30 | 12 | 4.87 | PEEK GF 30 |
PWG0.5-105-3PK | Wormwheel | 0.5 | 3 | 105 | 31.25 | 12 | 5.12 | PEEK GF 30 |
PWG0.5-110-3PK | Wormwheel | 0.5 | 3 | 110 | 32.5 | 12 | 5.36 | PEEK GF 30 |
PWG0.5-115-3PK | Wormwheel | 0.5 | 3 | 115 | 33.75 | 12 | 5.61 | PEEK GF 30 |
PWG0.5-120-3PK | Wormwheel | 0.5 | 3 | 120 | 35 | 12 | 5.85 | PEEK GF 30 |
PWG0.5-130-3PK | Wormwheel | 0.5 | 3 | 130 | 37.5 | 12 | 6.34 | PEEK GF 30 |
PWG0.5-140-3PK | Wormwheel | 0.5 | 3 | 140 | 40 | 12 | 6.82 | PEEK GF 30 |
PWG0.5-150-3PK | Wormwheel | 0.5 | 3 | 150 | 42.5 | 12 | 7.31 | PEEK GF 30 |
PWG0.5-160-3PK | Wormwheel | 0.5 | 3 | 160 | 45 | 14 | 7.84 | PEEK GF 30 |
PWG0.5-170-3PK | Wormwheel | 0.5 | 3 | 170 | 47.5 | 14 | 8.38 | PEEK GF 30 |
PWG0.5-180-3PK | Wormwheel | 0.5 | 3 | 180 | 50 | 14 | 8.92 | PEEK GF 30 |
PWG0.5-190-3PK | Wormwheel | 0.5 | 3 | 190 | 52.5 | 14 | 9.46 | PEEK GF 30 |
PWG0.5-200-3PK | Wormwheel | 0.5 | 3 | 200 | 55 | 16 | 10 | PEEK GF 30 |
PWG0.5-210-3PK | Wormwheel | 0.5 | 3 | 210 | 57.5 | 16 | 10.55 | PEEK GF 30 |
PWG0.5-220-3PK | Wormwheel | 0.5 | 3 | 220 | 60 | 16 | 11.1 | PEEK GF 30 |
PWG0.5-230-3PK | Wormwheel | 0.5 | 3 | 230 | 62.5 | 16 | 11.65 | PEEK GF 30 |
PWG0.5-240-3PK | Wormwheel | 0.5 | 3 | 240 | 65 | 16 | 12.2 | PEEK GF 30 |
PWG0.5-250-3PK | Wormwheel | 0.5 | 3 | 250 | 67.5 | 16 | 12.76 | PEEK GF 30 |
PWG0.5-18-4PK | Wormwheel | 0.5 | 4 | 18 | 9.5 | 3 | 0.27 | PEEK GF 30 |
PWG0.5-19-4PK | Wormwheel | 0.5 | 4 | 19 | 9.75 | 4 | 0.31 | PEEK GF 30 |
PWG0.5-20-4PK | Wormwheel | 0.5 | 4 | 20 | 10 | 4 | 0.34 | PEEK GF 30 |
PWG0.5-21-4PK | Wormwheel | 0.5 | 4 | 21 | 10.25 | 4 | 0.37 | PEEK GF 30 |
PWG0.5-22-4PK | Wormwheel | 0.5 | 4 | 22 | 10.5 | 4 | 0.41 | PEEK GF 30 |
PWG0.5-23-4PK | Wormwheel | 0.5 | 4 | 23 | 10.75 | 4 | 0.44 | PEEK GF 30 |
PWG0.5-24-4PK | Wormwheel | 0.5 | 4 | 24 | 11 | 5 | 0.48 | PEEK GF 30 |
PWG0.5-25-4PK | Wormwheel | 0.5 | 4 | 25 | 11.25 | 5 | 0.52 | PEEK GF 30 |
PWG0.5-26-4PK | Wormwheel | 0.5 | 4 | 26 | 11.5 | 5 | 0.56 | PEEK GF 30 |
PWG0.5-27-4PK | Wormwheel | 0.5 | 4 | 27 | 11.75 | 5 | 0.61 | PEEK GF 30 |
PWG0.5-28-4PK | Wormwheel | 0.5 | 4 | 28 | 12 | 5 | 0.65 | PEEK GF 30 |
PWG0.5-29-4PK | Wormwheel | 0.5 | 4 | 29 | 12.25 | 6 | 0.7 | PEEK GF 30 |
PWG0.5-30-4PK | Wormwheel | 0.5 | 4 | 30 | 12.5 | 6 | 0.74 | PEEK GF 30 |
PWG0.5-32-4PK | Wormwheel | 0.5 | 4 | 32 | 13 | 6 | 0.84 | PEEK GF 30 |
PWG0.5-35-4PK | Wormwheel | 0.5 | 4 | 35 | 13.75 | 6 | 1 | PEEK GF 30 |
PWG0.5-38-4PK | Wormwheel | 0.5 | 4 | 38 | 14.5 | 6 | 1.17 | PEEK GF 30 |
PWG0.5-40-4PK | Wormwheel | 0.5 | 4 | 40 | 15 | 6 | 1.3 | PEEK GF 30 |
PWG0.5-42-4PK | Wormwheel | 0.5 | 4 | 42 | 15.5 | 6 | 1.43 | PEEK GF 30 |
PWG0.5-45-4PK | Wormwheel | 0.5 | 4 | 45 | 16.25 | 6 | 1.63 | PEEK GF 30 |
PWG0.5-48-4PK | Wormwheel | 0.5 | 4 | 48 | 17 | 6 | 1.85 | PEEK GF 30 |
PWG0.5-50-4PK | Wormwheel | 0.5 | 4 | 50 | 17.5 | 6 | 2 | PEEK GF 30 |
PWG0.5-52-4PK | Wormwheel | 0.5 | 4 | 52 | 18 | 6 | 2.15 | PEEK GF 30 |
PWG0.5-55-4PK | Wormwheel | 0.5 | 4 | 55 | 18.75 | 6 | 2.4 | PEEK GF 30 |
PWG0.5-58-4PK | Wormwheel | 0.5 | 4 | 58 | 19.5 | 8 | 2.66 | PEEK GF 30 |
PWG0.5-60-4PK | Wormwheel | 0.5 | 4 | 60 | 20 | 8 | 2.84 | PEEK GF 30 |
PWG0.5-62-4PK | Wormwheel | 0.5 | 4 | 62 | 20.5 | 8 | 3.01 | PEEK GF 30 |
PWG0.5-65-4PK | Wormwheel | 0.5 | 4 | 65 | 21.25 | 8 | 3.16 | PEEK GF 30 |
PWG0.5-68-4PK | Wormwheel | 0.5 | 4 | 68 | 22 | 8 | 3.3 | PEEK GF 30 |
PWG0.5-70-4PK | Wormwheel | 0.5 | 4 | 70 | 22.5 | 8 | 3.4 | PEEK GF 30 |
PWG0.5-72-4PK | Wormwheel | 0.5 | 4 | 72 | 23 | 8 | 3.5 | PEEK GF 30 |
PWG0.5-75-4PK | Wormwheel | 0.5 | 4 | 75 | 23.75 | 8 | 3.64 | PEEK GF 30 |
PWG0.5-78-4PK | Wormwheel | 0.5 | 4 | 78 | 24.5 | 8 | 3.79 | PEEK GF 30 |
PWG0.5-80-4PK | Wormwheel | 0.5 | 4 | 80 | 25 | 8 | 3.88 | PEEK GF 30 |
PWG0.5-82-4PK | Wormwheel | 0.5 | 4 | 82 | 25.5 | 10 | 3.98 | PEEK GF 30 |
PWG0.5-85-4PK | Wormwheel | 0.5 | 4 | 85 | 26.25 | 10 | 4.13 | PEEK GF 30 |
PWG0.5-90-4PK | Wormwheel | 0.5 | 4 | 90 | 27.5 | 10 | 4.37 | PEEK GF 30 |
PWG0.5-95-4PK | Wormwheel | 0.5 | 4 | 95 | 28.75 | 10 | 4.61 | PEEK GF 30 |
PWG0.5-100-4PK | Wormwheel | 0.5 | 4 | 100 | 30 | 12 | 4.86 | PEEK GF 30 |
PWG0.5-105-4PK | Wormwheel | 0.5 | 4 | 105 | 31.25 | 12 | 5.1 | PEEK GF 30 |
PWG0.5-110-4PK | Wormwheel | 0.5 | 4 | 110 | 32.5 | 12 | 5.34 | PEEK GF 30 |
PWG0.5-115-4PK | Wormwheel | 0.5 | 4 | 115 | 33.75 | 12 | 5.58 | PEEK GF 30 |
PWG0.5-120-4PK | Wormwheel | 0.5 | 4 | 120 | 35 | 12 | 5.83 | PEEK GF 30 |
PWG0.5-130-4PK | Wormwheel | 0.5 | 4 | 130 | 37.5 | 12 | 6.31 | PEEK GF 30 |
PWG0.5-140-4PK | Wormwheel | 0.5 | 4 | 140 | 40 | 12 | 6.8 | PEEK GF 30 |
PWG0.5-150-4PK | Wormwheel | 0.5 | 4 | 150 | 42.5 | 12 | 7.28 | PEEK GF 30 |
PWG0.5-160-4PK | Wormwheel | 0.5 | 4 | 160 | 45 | 14 | 7.77 | PEEK GF 30 |
PWG0.5-170-4PK | Wormwheel | 0.5 | 4 | 170 | 47.5 | 14 | 8.26 | PEEK GF 30 |
PWG0.5-180-4PK | Wormwheel | 0.5 | 4 | 180 | 50 | 14 | 8.74 | PEEK GF 30 |
PWG0.5-190-4PK | Wormwheel | 0.5 | 4 | 190 | 52.5 | 14 | 9.23 | PEEK GF 30 |
PWG0.5-200-4PK | Wormwheel | 0.5 | 4 | 200 | 55 | 16 | 9.71 | PEEK GF 30 |
PWG0.5-210-4PK | Wormwheel | 0.5 | 4 | 210 | 57.5 | 16 | 10.24 | PEEK GF 30 |
PWG0.5-220-4PK | Wormwheel | 0.5 | 4 | 220 | 60 | 16 | 10.78 | PEEK GF 30 |
PWG0.5-230-4PK | Wormwheel | 0.5 | 4 | 230 | 62.5 | 16 | 11.31 | PEEK GF 30 |
PWG0.5-240-4PK | Wormwheel | 0.5 | 4 | 240 | 65 | 16 | 11.85 | PEEK GF 30 |
PWG0.5-250-4PK | Wormwheel | 0.5 | 4 | 250 | 67.5 | 16 | 12.39 | PEEK GF 30 |
PWG0.5-18-1DL | Wormwheel | 0.5 | 1 | 18 | 9.5 | 3 | 0.23 | Delrin POM |
PWG0.5-19-1DL | Wormwheel | 0.5 | 1 | 19 | 9.75 | 4 | 0.26 | Delrin POM |
PWG0.5-20-1DL | Wormwheel | 0.5 | 1 | 20 | 10 | 4 | 0.26 | Delrin POM |
PWG0.5-21-1DL | Wormwheel | 0.5 | 1 | 21 | 10.25 | 4 | 0.29 | Delrin POM |
PWG0.5-22-1DL | Wormwheel | 0.5 | 1 | 22 | 10.5 | 4 | 0.32 | Delrin POM |
PWG0.5-23-1DL | Wormwheel | 0.5 | 1 | 23 | 10.75 | 4 | 0.35 | Delrin POM |
PWG0.5-24-1DL | Wormwheel | 0.5 | 1 | 24 | 11 | 5 | 0.38 | Delrin POM |
PWG0.5-25-1DL | Wormwheel | 0.5 | 1 | 25 | 11.25 | 5 | 0.41 | Delrin POM |
PWG0.5-26-1DL | Wormwheel | 0.5 | 1 | 26 | 11.5 | 5 | 0.44 | Delrin POM |
PWG0.5-27-1DL | Wormwheel | 0.5 | 1 | 27 | 11.75 | 5 | 0.48 | Delrin POM |
PWG0.5-28-1DL | Wormwheel | 0.5 | 1 | 28 | 12 | 5 | 0.51 | Delrin POM |
PWG0.5-29-1DL | Wormwheel | 0.5 | 1 | 29 | 12.25 | 6 | 0.55 | Delrin POM |
PWG0.5-30-1DL | Wormwheel | 0.5 | 1 | 30 | 12.5 | 6 | 0.59 | Delrin POM |
PWG0.5-32-1DL | Wormwheel | 0.5 | 1 | 32 | 13 | 6 | 0.67 | Delrin POM |
PWG0.5-35-1DL | Wormwheel | 0.5 | 1 | 35 | 13.75 | 6 | 0.79 | Delrin POM |
PWG0.5-38-1DL | Wormwheel | 0.5 | 1 | 38 | 14.5 | 6 | 0.93 | Delrin POM |
PWG0.5-40-1DL | Wormwheel | 0.5 | 1 | 40 | 15 | 6 | 1.02 | Delrin POM |
PWG0.5-42-1DL | Wormwheel | 0.5 | 1 | 42 | 15.5 | 6 | 1.12 | Delrin POM |
PWG0.5-45-1DL | Wormwheel | 0.5 | 1 | 45 | 16.25 | 6 | 1.28 | Delrin POM |
PWG0.5-48-1DL | Wormwheel | 0.5 | 1 | 48 | 17 | 6 | 1.44 | Delrin POM |
PWG0.5-50-1DL | Wormwheel | 0.5 | 1 | 50 | 17.5 | 6 | 1.55 | Delrin POM |
PWG0.5-52-1DL | Wormwheel | 0.5 | 1 | 52 | 18 | 6 | 1.66 | Delrin POM |
PWG0.5-55-1DL | Wormwheel | 0.5 | 1 | 55 | 18.75 | 6 | 1.83 | Delrin POM |
PWG0.5-58-1DL | Wormwheel | 0.5 | 1 | 58 | 19.5 | 8 | 2.02 | Delrin POM |
PWG0.5-60-1DL | Wormwheel | 0.5 | 1 | 60 | 20 | 8 | 2.15 | Delrin POM |
PWG0.5-62-1DL | Wormwheel | 0.5 | 1 | 62 | 20.5 | 8 | 2.28 | Delrin POM |
PWG0.5-65-1DL | Wormwheel | 0.5 | 1 | 65 | 21.25 | 8 | 2.48 | Delrin POM |
PWG0.5-68-1DL | Wormwheel | 0.5 | 1 | 68 | 22 | 8 | 2.69 | Delrin POM |
PWG0.5-70-1DL | Wormwheel | 0.5 | 1 | 70 | 22.5 | 8 | 2.83 | Delrin POM |
PWG0.5-72-1DL | Wormwheel | 0.5 | 1 | 72 | 23 | 8 | 2.98 | Delrin POM |
PWG0.5-75-1DL | Wormwheel | 0.5 | 1 | 75 | 23.75 | 8 | 3.17 | Delrin POM |
PWG0.5-78-1DL | Wormwheel | 0.5 | 1 | 78 | 24.5 | 8 | 3.31 | Delrin POM |
PWG0.5-80-1DL | Wormwheel | 0.5 | 1 | 80 | 25 | 8 | 3.4 | Delrin POM |
PWG0.5-82-1DL | Wormwheel | 0.5 | 1 | 82 | 25.5 | 10 | 3.5 | Delrin POM |
PWG0.5-85-1DL | Wormwheel | 0.5 | 1 | 85 | 26.25 | 10 | 3.64 | Delrin POM |
PWG0.5-90-1DL | Wormwheel | 0.5 | 1 | 90 | 27.5 | 10 | 3.87 | Delrin POM |
PWG0.5-95-1DL | Wormwheel | 0.5 | 1 | 95 | 28.75 | 10 | 4.11 | Delrin POM |
PWG0.5-100-1DL | Wormwheel | 0.5 | 1 | 100 | 30 | 12 | 4.34 | Delrin POM |
PWG0.5-105-1DL | Wormwheel | 0.5 | 1 | 105 | 31.25 | 12 | 4.58 | Delrin POM |
PWG0.5-110-1DL | Wormwheel | 0.5 | 1 | 110 | 32.5 | 12 | 4.82 | Delrin POM |
PWG0.5-115-1DL | Wormwheel | 0.5 | 1 | 115 | 33.75 | 12 | 5.06 | Delrin POM |
PWG0.5-120-1DL | Wormwheel | 0.5 | 1 | 120 | 35 | 12 | 5.3 | Delrin POM |
PWG0.5-130-1DL | Wormwheel | 0.5 | 1 | 130 | 37.5 | 12 | 5.78 | Delrin POM |
PWG0.5-140-1DL | Wormwheel | 0.5 | 1 | 140 | 40 | 12 | 6.27 | Delrin POM |
PWG0.5-150-1DL | Wormwheel | 0.5 | 1 | 150 | 42.5 | 12 | 6.76 | Delrin POM |
PWG0.5-160-1DL | Wormwheel | 0.5 | 1 | 160 | 45 | 14 | 7.25 | Delrin POM |
PWG0.5-170-1DL | Wormwheel | 0.5 | 1 | 170 | 47.5 | 14 | 7.74 | Delrin POM |
PWG0.5-180-1DL | Wormwheel | 0.5 | 1 | 180 | 50 | 14 | 8.24 | Delrin POM |
PWG0.5-190-1DL | Wormwheel | 0.5 | 1 | 190 | 52.5 | 14 | 8.74 | Delrin POM |
PWG0.5-200-1DL | Wormwheel | 0.5 | 1 | 200 | 55 | 16 | 9.24 | Delrin POM |
PWG0.5-210-1DL | Wormwheel | 0.5 | 1 | 210 | 57.5 | 16 | 9.75 | Delrin POM |
PWG0.5-220-1DL | Wormwheel | 0.5 | 1 | 220 | 60 | 16 | 10.26 | Delrin POM |
PWG0.5-230-1DL | Wormwheel | 0.5 | 1 | 230 | 62.5 | 16 | 10.76 | Delrin POM |
PWG0.5-240-1DL | Wormwheel | 0.5 | 1 | 240 | 65 | 16 | 11.28 | Delrin POM |
PWG0.5-250-1DL | Wormwheel | 0.5 | 1 | 250 | 67.5 | 16 | 11.79 | Delrin POM |
PWG0.5-18-2DL | Wormwheel | 0.5 | 2 | 18 | 9.5 | 3 | 0.22 | Delrin POM |
PWG0.5-19-2DL | Wormwheel | 0.5 | 2 | 19 | 9.75 | 4 | 0.25 | Delrin POM |
PWG0.5-20-2DL | Wormwheel | 0.5 | 2 | 20 | 10 | 4 | 0.27 | Delrin POM |
PWG0.5-21-2DL | Wormwheel | 0.5 | 2 | 21 | 10.25 | 4 | 0.3 | Delrin POM |
PWG0.5-22-2DL | Wormwheel | 0.5 | 2 | 22 | 10.5 | 4 | 0.33 | Delrin POM |
PWG0.5-23-2DL | Wormwheel | 0.5 | 2 | 23 | 10.75 | 4 | 0.36 | Delrin POM |
PWG0.5-24-2DL | Wormwheel | 0.5 | 2 | 24 | 11 | 5 | 0.39 | Delrin POM |
PWG0.5-25-2DL | Wormwheel | 0.5 | 2 | 25 | 11.25 | 5 | 0.42 | Delrin POM |
PWG0.5-26-2DL | Wormwheel | 0.5 | 2 | 26 | 11.5 | 5 | 0.45 | Delrin POM |
PWG0.5-27-2DL | Wormwheel | 0.5 | 2 | 27 | 11.75 | 5 | 0.49 | Delrin POM |
PWG0.5-28-2DL | Wormwheel | 0.5 | 2 | 28 | 12 | 5 | 0.52 | Delrin POM |
PWG0.5-29-2DL | Wormwheel | 0.5 | 2 | 29 | 12.25 | 6 | 0.56 | Delrin POM |
PWG0.5-30-2DL | Wormwheel | 0.5 | 2 | 30 | 12.5 | 6 | 0.6 | Delrin POM |
PWG0.5-32-2DL | Wormwheel | 0.5 | 2 | 32 | 13 | 6 | 0.68 | Delrin POM |
PWG0.5-35-2DL | Wormwheel | 0.5 | 2 | 35 | 13.75 | 6 | 0.8 | Delrin POM |
PWG0.5-38-2DL | Wormwheel | 0.5 | 2 | 38 | 14.5 | 6 | 0.94 | Delrin POM |
PWG0.5-40-2DL | Wormwheel | 0.5 | 2 | 40 | 15 | 6 | 0.96 | Delrin POM |
PWG0.5-42-2DL | Wormwheel | 0.5 | 2 | 42 | 15.5 | 6 | 1.06 | Delrin POM |
PWG0.5-45-2DL | Wormwheel | 0.5 | 2 | 45 | 16.25 | 6 | 1.21 | Delrin POM |
PWG0.5-48-2DL | Wormwheel | 0.5 | 2 | 48 | 17 | 6 | 1.38 | Delrin POM |
PWG0.5-50-2DL | Wormwheel | 0.5 | 2 | 50 | 17.5 | 6 | 1.5 | Delrin POM |
PWG0.5-52-2DL | Wormwheel | 0.5 | 2 | 52 | 18 | 6 | 1.62 | Delrin POM |
PWG0.5-55-2DL | Wormwheel | 0.5 | 2 | 55 | 18.75 | 6 | 1.8 | Delrin POM |
PWG0.5-58-2DL | Wormwheel | 0.5 | 2 | 58 | 19.5 | 8 | 2 | Delrin POM |
PWG0.5-60-2DL | Wormwheel | 0.5 | 2 | 60 | 20 | 8 | 2.14 | Delrin POM |
PWG0.5-62-2DL | Wormwheel | 0.5 | 2 | 62 | 20.5 | 8 | 2.28 | Delrin POM |
PWG0.5-65-2DL | Wormwheel | 0.5 | 2 | 65 | 21.25 | 8 | 2.49 | Delrin POM |
PWG0.5-68-2DL | Wormwheel | 0.5 | 2 | 68 | 22 | 8 | 2.72 | Delrin POM |
PWG0.5-70-2DL | Wormwheel | 0.5 | 2 | 70 | 22.5 | 8 | 2.85 | Delrin POM |
PWG0.5-72-2DL | Wormwheel | 0.5 | 2 | 72 | 23 | 8 | 2.93 | Delrin POM |
PWG0.5-75-2DL | Wormwheel | 0.5 | 2 | 75 | 23.75 | 8 | 3.05 | Delrin POM |
PWG0.5-78-2DL | Wormwheel | 0.5 | 2 | 78 | 24.5 | 8 | 3.18 | Delrin POM |
PWG0.5-80-2DL | Wormwheel | 0.5 | 2 | 80 | 25 | 8 | 3.26 | Delrin POM |
PWG0.5-82-2DL | Wormwheel | 0.5 | 2 | 82 | 25.5 | 10 | 3.34 | Delrin POM |
PWG0.5-85-2DL | Wormwheel | 0.5 | 2 | 85 | 26.25 | 10 | 3.46 | Delrin POM |
PWG0.5-90-2DL | Wormwheel | 0.5 | 2 | 90 | 27.5 | 10 | 3.67 | Delrin POM |
PWG0.5-95-2DL | Wormwheel | 0.5 | 2 | 95 | 28.75 | 10 | 3.87 | Delrin POM |
PWG0.5-100-2DL | Wormwheel | 0.5 | 2 | 100 | 30 | 12 | 4.07 | Delrin POM |
PWG0.5-105-2DL | Wormwheel | 0.5 | 2 | 105 | 31.25 | 12 | 4.3 | Delrin POM |
PWG0.5-110-2DL | Wormwheel | 0.5 | 2 | 110 | 32.5 | 12 | 4.52 | Delrin POM |
PWG0.5-115-2DL | Wormwheel | 0.5 | 2 | 115 | 33.75 | 12 | 4.74 | Delrin POM |
PWG0.5-120-2DL | Wormwheel | 0.5 | 2 | 120 | 35 | 12 | 4.97 | Delrin POM |
PWG0.5-130-2DL | Wormwheel | 0.5 | 2 | 130 | 37.5 | 12 | 5.42 | Delrin POM |
PWG0.5-140-2DL | Wormwheel | 0.5 | 2 | 140 | 40 | 12 | 5.88 | Delrin POM |
PWG0.5-150-2DL | Wormwheel | 0.5 | 2 | 150 | 42.5 | 12 | 6.34 | Delrin POM |
PWG0.5-160-2DL | Wormwheel | 0.5 | 2 | 160 | 45 | 14 | 6.8 | Delrin POM |
PWG0.5-170-2DL | Wormwheel | 0.5 | 2 | 170 | 47.5 | 14 | 7.26 | Delrin POM |
PWG0.5-180-2DL | Wormwheel | 0.5 | 2 | 180 | 50 | 14 | 7.73 | Delrin POM |
PWG0.5-190-2DL | Wormwheel | 0.5 | 2 | 190 | 52.5 | 14 | 8.2 | Delrin POM |
PWG0.5-200-2DL | Wormwheel | 0.5 | 2 | 200 | 55 | 16 | 8.67 | Delrin POM |
PWG0.5-210-2DL | Wormwheel | 0.5 | 2 | 210 | 57.5 | 16 | 9.14 | Delrin POM |
PWG0.5-220-2DL | Wormwheel | 0.5 | 2 | 220 | 60 | 16 | 9.62 | Delrin POM |
PWG0.5-230-2DL | Wormwheel | 0.5 | 2 | 230 | 62.5 | 16 | 10.1 | Delrin POM |
PWG0.5-240-2DL | Wormwheel | 0.5 | 2 | 240 | 65 | 16 | 10.58 | Delrin POM |
PWG0.5-250-2DL | Wormwheel | 0.5 | 2 | 250 | 67.5 | 16 | 11.06 | Delrin POM |
PWG0.5-18-3DL | Wormwheel | 0.5 | 3 | 18 | 9.5 | 3 | 0.22 | Delrin POM |
PWG0.5-19-3DL | Wormwheel | 0.5 | 3 | 19 | 9.75 | 4 | 0.25 | Delrin POM |
PWG0.5-20-3DL | Wormwheel | 0.5 | 3 | 20 | 10 | 4 | 0.27 | Delrin POM |
PWG0.5-21-3DL | Wormwheel | 0.5 | 3 | 21 | 10.25 | 4 | 0.3 | Delrin POM |
PWG0.5-22-3DL | Wormwheel | 0.5 | 3 | 22 | 10.5 | 4 | 0.33 | Delrin POM |
PWG0.5-23-3DL | Wormwheel | 0.5 | 3 | 23 | 10.75 | 4 | 0.36 | Delrin POM |
PWG0.5-24-3DL | Wormwheel | 0.5 | 3 | 24 | 11 | 5 | 0.39 | Delrin POM |
PWG0.5-25-3DL | Wormwheel | 0.5 | 3 | 25 | 11.25 | 5 | 0.42 | Delrin POM |
PWG0.5-26-3DL | Wormwheel | 0.5 | 3 | 26 | 11.5 | 5 | 0.45 | Delrin POM |
PWG0.5-27-3DL | Wormwheel | 0.5 | 3 | 27 | 11.75 | 5 | 0.49 | Delrin POM |
PWG0.5-28-3DL | Wormwheel | 0.5 | 3 | 28 | 12 | 5 | 0.53 | Delrin POM |
PWG0.5-29-3DL | Wormwheel | 0.5 | 3 | 29 | 12.25 | 6 | 0.56 | Delrin POM |
PWG0.5-30-3DL | Wormwheel | 0.5 | 3 | 30 | 12.5 | 6 | 0.6 | Delrin POM |
PWG0.5-32-3DL | Wormwheel | 0.5 | 3 | 32 | 13 | 6 | 0.68 | Delrin POM |
PWG0.5-35-3DL | Wormwheel | 0.5 | 3 | 35 | 13.75 | 6 | 0.81 | Delrin POM |
PWG0.5-38-3DL | Wormwheel | 0.5 | 3 | 38 | 14.5 | 6 | 0.95 | Delrin POM |
PWG0.5-40-3DL | Wormwheel | 0.5 | 3 | 40 | 15 | 6 | 1.05 | Delrin POM |
PWG0.5-42-3DL | Wormwheel | 0.5 | 3 | 42 | 15.5 | 6 | 1.15 | Delrin POM |
PWG0.5-45-3DL | Wormwheel | 0.5 | 3 | 45 | 16.25 | 6 | 1.31 | Delrin POM |
PWG0.5-48-3DL | Wormwheel | 0.5 | 3 | 48 | 17 | 6 | 1.49 | Delrin POM |
PWG0.5-50-3DL | Wormwheel | 0.5 | 3 | 50 | 17.5 | 6 | 1.61 | Delrin POM |
PWG0.5-52-3DL | Wormwheel | 0.5 | 3 | 52 | 18 | 6 | 1.74 | Delrin POM |
PWG0.5-55-3DL | Wormwheel | 0.5 | 3 | 55 | 18.75 | 6 | 1.93 | Delrin POM |
PWG0.5-58-3DL | Wormwheel | 0.5 | 3 | 58 | 19.5 | 8 | 2.14 | Delrin POM |
PWG0.5-60-3DL | Wormwheel | 0.5 | 3 | 60 | 20 | 8 | 2.12 | Delrin POM |
PWG0.5-62-3DL | Wormwheel | 0.5 | 3 | 62 | 20.5 | 8 | 2.26 | Delrin POM |
PWG0.5-65-3DL | Wormwheel | 0.5 | 3 | 65 | 21.25 | 8 | 2.48 | Delrin POM |
PWG0.5-68-3DL | Wormwheel | 0.5 | 3 | 68 | 22 | 8 | 2.72 | Delrin POM |
PWG0.5-70-3DL | Wormwheel | 0.5 | 3 | 70 | 22.5 | 8 | 2.84 | Delrin POM |
PWG0.5-72-3DL | Wormwheel | 0.5 | 3 | 72 | 23 | 8 | 2.92 | Delrin POM |
PWG0.5-75-3DL | Wormwheel | 0.5 | 3 | 75 | 23.75 | 8 | 3.05 | Delrin POM |
PWG0.5-78-3DL | Wormwheel | 0.5 | 3 | 78 | 24.5 | 8 | 3.17 | Delrin POM |
PWG0.5-80-3DL | Wormwheel | 0.5 | 3 | 80 | 25 | 8 | 3.25 | Delrin POM |
PWG0.5-82-3DL | Wormwheel | 0.5 | 3 | 82 | 25.5 | 10 | 3.33 | Delrin POM |
PWG0.5-85-3DL | Wormwheel | 0.5 | 3 | 85 | 26.25 | 10 | 3.45 | Delrin POM |
PWG0.5-90-3DL | Wormwheel | 0.5 | 3 | 90 | 27.5 | 10 | 3.66 | Delrin POM |
PWG0.5-95-3DL | Wormwheel | 0.5 | 3 | 95 | 28.75 | 10 | 3.86 | Delrin POM |
PWG0.5-100-3DL | Wormwheel | 0.5 | 3 | 100 | 30 | 12 | 4.06 | Delrin POM |
PWG0.5-105-3DL | Wormwheel | 0.5 | 3 | 105 | 31.25 | 12 | 4.26 | Delrin POM |
PWG0.5-110-3DL | Wormwheel | 0.5 | 3 | 110 | 32.5 | 12 | 4.47 | Delrin POM |
PWG0.5-115-3DL | Wormwheel | 0.5 | 3 | 115 | 33.75 | 12 | 4.67 | Delrin POM |
PWG0.5-120-3DL | Wormwheel | 0.5 | 3 | 120 | 35 | 12 | 4.87 | Delrin POM |
PWG0.5-130-3DL | Wormwheel | 0.5 | 3 | 130 | 37.5 | 12 | 5.28 | Delrin POM |
PWG0.5-140-3DL | Wormwheel | 0.5 | 3 | 140 | 40 | 12 | 5.69 | Delrin POM |
PWG0.5-150-3DL | Wormwheel | 0.5 | 3 | 150 | 42.5 | 12 | 6.09 | Delrin POM |
PWG0.5-160-3DL | Wormwheel | 0.5 | 3 | 160 | 45 | 14 | 6.54 | Delrin POM |
PWG0.5-170-3DL | Wormwheel | 0.5 | 3 | 170 | 47.5 | 14 | 6.98 | Delrin POM |
PWG0.5-180-3DL | Wormwheel | 0.5 | 3 | 180 | 50 | 14 | 7.43 | Delrin POM |
PWG0.5-190-3DL | Wormwheel | 0.5 | 3 | 190 | 52.5 | 14 | 7.88 | Delrin POM |
PWG0.5-200-3DL | Wormwheel | 0.5 | 3 | 200 | 55 | 16 | 8.34 | Delrin POM |
PWG0.5-210-3DL | Wormwheel | 0.5 | 3 | 210 | 57.5 | 16 | 8.79 | Delrin POM |
PWG0.5-220-3DL | Wormwheel | 0.5 | 3 | 220 | 60 | 16 | 9.25 | Delrin POM |
PWG0.5-230-3DL | Wormwheel | 0.5 | 3 | 230 | 62.5 | 16 | 9.71 | Delrin POM |
PWG0.5-240-3DL | Wormwheel | 0.5 | 3 | 240 | 65 | 16 | 10.17 | Delrin POM |
PWG0.5-250-3DL | Wormwheel | 0.5 | 3 | 250 | 67.5 | 16 | 10.63 | Delrin POM |
PWG0.5-18-4DL | Wormwheel | 0.5 | 4 | 18 | 9.5 | 3 | 0.23 | Delrin POM |
PWG0.5-19-4DL | Wormwheel | 0.5 | 4 | 19 | 9.75 | 4 | 0.25 | Delrin POM |
PWG0.5-20-4DL | Wormwheel | 0.5 | 4 | 20 | 10 | 4 | 0.28 | Delrin POM |
PWG0.5-21-4DL | Wormwheel | 0.5 | 4 | 21 | 10.25 | 4 | 0.31 | Delrin POM |
PWG0.5-22-4DL | Wormwheel | 0.5 | 4 | 22 | 10.5 | 4 | 0.34 | Delrin POM |
PWG0.5-23-4DL | Wormwheel | 0.5 | 4 | 23 | 10.75 | 4 | 0.37 | Delrin POM |
PWG0.5-24-4DL | Wormwheel | 0.5 | 4 | 24 | 11 | 5 | 0.4 | Delrin POM |
PWG0.5-25-4DL | Wormwheel | 0.5 | 4 | 25 | 11.25 | 5 | 0.43 | Delrin POM |
PWG0.5-26-4DL | Wormwheel | 0.5 | 4 | 26 | 11.5 | 5 | 0.47 | Delrin POM |
PWG0.5-27-4DL | Wormwheel | 0.5 | 4 | 27 | 11.75 | 5 | 0.5 | Delrin POM |
PWG0.5-28-4DL | Wormwheel | 0.5 | 4 | 28 | 12 | 5 | 0.54 | Delrin POM |
PWG0.5-29-4DL | Wormwheel | 0.5 | 4 | 29 | 12.25 | 6 | 0.58 | Delrin POM |
PWG0.5-30-4DL | Wormwheel | 0.5 | 4 | 30 | 12.5 | 6 | 0.62 | Delrin POM |
PWG0.5-32-4DL | Wormwheel | 0.5 | 4 | 32 | 13 | 6 | 0.7 | Delrin POM |
PWG0.5-35-4DL | Wormwheel | 0.5 | 4 | 35 | 13.75 | 6 | 0.83 | Delrin POM |
PWG0.5-38-4DL | Wormwheel | 0.5 | 4 | 38 | 14.5 | 6 | 0.98 | Delrin POM |
PWG0.5-40-4DL | Wormwheel | 0.5 | 4 | 40 | 15 | 6 | 1.08 | Delrin POM |
PWG0.5-42-4DL | Wormwheel | 0.5 | 4 | 42 | 15.5 | 6 | 1.19 | Delrin POM |
PWG0.5-45-4DL | Wormwheel | 0.5 | 4 | 45 | 16.25 | 6 | 1.36 | Delrin POM |
PWG0.5-48-4DL | Wormwheel | 0.5 | 4 | 48 | 17 | 6 | 1.54 | Delrin POM |
PWG0.5-50-4DL | Wormwheel | 0.5 | 4 | 50 | 17.5 | 6 | 1.66 | Delrin POM |
PWG0.5-52-4DL | Wormwheel | 0.5 | 4 | 52 | 18 | 6 | 1.8 | Delrin POM |
PWG0.5-55-4DL | Wormwheel | 0.5 | 4 | 55 | 18.75 | 6 | 2 | Delrin POM |
PWG0.5-58-4DL | Wormwheel | 0.5 | 4 | 58 | 19.5 | 8 | 2.22 | Delrin POM |
PWG0.5-60-4DL | Wormwheel | 0.5 | 4 | 60 | 20 | 8 | 2.37 | Delrin POM |
PWG0.5-62-4DL | Wormwheel | 0.5 | 4 | 62 | 20.5 | 8 | 2.51 | Delrin POM |
PWG0.5-65-4DL | Wormwheel | 0.5 | 4 | 65 | 21.25 | 8 | 2.63 | Delrin POM |
PWG0.5-68-4DL | Wormwheel | 0.5 | 4 | 68 | 22 | 8 | 2.75 | Delrin POM |
PWG0.5-70-4DL | Wormwheel | 0.5 | 4 | 70 | 22.5 | 8 | 2.83 | Delrin POM |
PWG0.5-72-4DL | Wormwheel | 0.5 | 4 | 72 | 23 | 8 | 2.91 | Delrin POM |
PWG0.5-75-4DL | Wormwheel | 0.5 | 4 | 75 | 23.75 | 8 | 3.03 | Delrin POM |
PWG0.5-78-4DL | Wormwheel | 0.5 | 4 | 78 | 24.5 | 8 | 3.16 | Delrin POM |
PWG0.5-80-4DL | Wormwheel | 0.5 | 4 | 80 | 25 | 8 | 3.24 | Delrin POM |
PWG0.5-82-4DL | Wormwheel | 0.5 | 4 | 82 | 25.5 | 10 | 3.32 | Delrin POM |
PWG0.5-85-4DL | Wormwheel | 0.5 | 4 | 85 | 26.25 | 10 | 3.44 | Delrin POM |
PWG0.5-90-4DL | Wormwheel | 0.5 | 4 | 90 | 27.5 | 10 | 3.64 | Delrin POM |
PWG0.5-95-4DL | Wormwheel | 0.5 | 4 | 95 | 28.75 | 10 | 3.84 | Delrin POM |
PWG0.5-100-4DL | Wormwheel | 0.5 | 4 | 100 | 30 | 12 | 4.05 | Delrin POM |
PWG0.5-105-4DL | Wormwheel | 0.5 | 4 | 105 | 31.25 | 12 | 4.25 | Delrin POM |
PWG0.5-110-4DL | Wormwheel | 0.5 | 4 | 110 | 32.5 | 12 | 4.45 | Delrin POM |
PWG0.5-115-4DL | Wormwheel | 0.5 | 4 | 115 | 33.75 | 12 | 4.65 | Delrin POM |
PWG0.5-120-4DL | Wormwheel | 0.5 | 4 | 120 | 35 | 12 | 4.86 | Delrin POM |
PWG0.5-130-4DL | Wormwheel | 0.5 | 4 | 130 | 37.5 | 12 | 5.26 | Delrin POM |
PWG0.5-140-4DL | Wormwheel | 0.5 | 4 | 140 | 40 | 12 | 5.67 | Delrin POM |
PWG0.5-150-4DL | Wormwheel | 0.5 | 4 | 150 | 42.5 | 12 | 6.07 | Delrin POM |
PWG0.5-160-4DL | Wormwheel | 0.5 | 4 | 160 | 45 | 14 | 6.47 | Delrin POM |
PWG0.5-170-4DL | Wormwheel | 0.5 | 4 | 170 | 47.5 | 14 | 6.88 | Delrin POM |
PWG0.5-180-4DL | Wormwheel | 0.5 | 4 | 180 | 50 | 14 | 7.28 | Delrin POM |
PWG0.5-190-4DL | Wormwheel | 0.5 | 4 | 190 | 52.5 | 14 | 7.69 | Delrin POM |
PWG0.5-200-4DL | Wormwheel | 0.5 | 4 | 200 | 55 | 16 | 8.09 | Delrin POM |
PWG0.5-210-4DL | Wormwheel | 0.5 | 4 | 210 | 57.5 | 16 | 8.54 | Delrin POM |
PWG0.5-220-4DL | Wormwheel | 0.5 | 4 | 220 | 60 | 16 | 8.98 | Delrin POM |
PWG0.5-230-4DL | Wormwheel | 0.5 | 4 | 230 | 62.5 | 16 | 9.42 | Delrin POM |
PWG0.5-240-4DL | Wormwheel | 0.5 | 4 | 240 | 65 | 16 | 9.87 | Delrin POM |
PWG0.5-250-4DL | Wormwheel | 0.5 | 4 | 250 | 67.5 | 16 | 10.32 | Delrin POM |
PWG1.0-15-1 | Wormwheel | 1.0 | 1 | 15 | 15 | 5 | 2.05 | Bronze CA104 |
PWG1.0-16-1 | Wormwheel | 1.0 | 1 | 16 | 15.5 | 5 | 2.31 | Bronze CA104 |
PWG1.0-17-1 | Wormwheel | 1.0 | 1 | 17 | 16 | 5 | 2.57 | Bronze CA104 |
PWG1.0-18-1 | Wormwheel | 1.0 | 1 | 18 | 16.5 | 5 | 2.85 | Bronze CA104 |
PWG1.0-19-1 | Wormwheel | 1.0 | 1 | 19 | 17 | 5 | 3.14 | Bronze CA104 |
PWG1.0-20-1 | Wormwheel | 1.0 | 1 | 20 | 17.5 | 5 | 3.45 | Bronze CA104 |
PWG1.0-21-1 | Wormwheel | 1.0 | 1 | 21 | 18 | 5 | 3.76 | Bronze CA104 |
PWG1.0-22-1 | Wormwheel | 1.0 | 1 | 22 | 18.5 | 5 | 4.09 | Bronze CA104 |
PWG1.0-23-1 | Wormwheel | 1.0 | 1 | 23 | 19 | 5 | 4.43 | Bronze CA104 |
PWG1.0-24-1 | Wormwheel | 1.0 | 1 | 24 | 19.5 | 6 | 4.79 | Bronze CA104 |
PWG1.0-25-1 | Wormwheel | 1.0 | 1 | 25 | 20 | 6 | 5.15 | Bronze CA104 |
PWG1.0-26-1 | Wormwheel | 1.0 | 1 | 26 | 20.5 | 6 | 5.53 | Bronze CA104 |
PWG1.0-27-1 | Wormwheel | 1.0 | 1 | 27 | 21 | 6 | 5.92 | Bronze CA104 |
PWG1.0-28-1 | Wormwheel | 1.0 | 1 | 28 | 21.5 | 6 | 6.32 | Bronze CA104 |
PWG1.0-29-1 | Wormwheel | 1.0 | 1 | 29 | 22 | 8 | 6.73 | Bronze CA104 |
PWG1.0-30-1 | Wormwheel | 1.0 | 1 | 30 | 22.5 | 8 | 7.15 | Bronze CA104 |
PWG1.0-32-1 | Wormwheel | 1.0 | 1 | 32 | 23.5 | 8 | 8.03 | Bronze CA104 |
PWG1.0-35-1 | Wormwheel | 1.0 | 1 | 35 | 25 | 8 | 9.44 | Bronze CA104 |
PWG1.0-38-1 | Wormwheel | 1.0 | 1 | 38 | 26.5 | 10 | 10.94 | Bronze CA104 |
PWG1.0-40-1 | Wormwheel | 1.0 | 1 | 40 | 27.5 | 10 | 12 | Bronze CA104 |
PWG1.0-42-1 | Wormwheel | 1.0 | 1 | 42 | 28.5 | 10 | 13.1 | Bronze CA104 |
PWG1.0-45-1 | Wormwheel | 1.0 | 1 | 45 | 30 | 10 | 14.84 | Bronze CA104 |
PWG1.0-48-1 | Wormwheel | 1.0 | 1 | 48 | 31.5 | 10 | 16.67 | Bronze CA104 |
PWG1.0-50-1 | Wormwheel | 1.0 | 1 | 50 | 32.5 | 10 | 17.94 | Bronze CA104 |
PWG1.0-52-1 | Wormwheel | 1.0 | 1 | 52 | 33.5 | 10 | 19.25 | Bronze CA104 |
PWG1.0-55-1 | Wormwheel | 1.0 | 1 | 55 | 35 | 10 | 21.29 | Bronze CA104 |
PWG1.0-58-1 | Wormwheel | 1.0 | 1 | 58 | 36.5 | 10 | 23.43 | Bronze CA104 |
PWG1.0-60-1 | Wormwheel | 1.0 | 1 | 60 | 37.5 | 10 | 24.9 | Bronze CA104 |
PWG1.0-62-1 | Wormwheel | 1.0 | 1 | 62 | 38.5 | 10 | 26.42 | Bronze CA104 |
PWG1.0-65-1 | Wormwheel | 1.0 | 1 | 65 | 40 | 10 | 28.76 | Bronze CA104 |
PWG1.0-68-1 | Wormwheel | 1.0 | 1 | 68 | 41.5 | 10 | 31.2 | Bronze CA104 |
PWG1.0-70-1 | Wormwheel | 1.0 | 1 | 70 | 42.5 | 10 | 32.87 | Bronze CA104 |
PWG1.0-72-1 | Wormwheel | 1.0 | 1 | 72 | 43.5 | 10 | 34.58 | Bronze CA104 |
PWG1.0-75-1 | Wormwheel | 1.0 | 1 | 75 | 45 | 10 | 37.21 | Bronze CA104 |
PWG1.0-78-1 | Wormwheel | 1.0 | 1 | 78 | 46.5 | 10 | 39.93 | Bronze CA104 |
PWG1.0-80-1 | Wormwheel | 1.0 | 1 | 80 | 47.5 | 10 | 41.8 | Bronze CA104 |
PWG1.0-82-1 | Wormwheel | 1.0 | 1 | 82 | 48.5 | 12 | 43.7 | Bronze CA104 |
PWG1.0-85-1 | Wormwheel | 1.0 | 1 | 85 | 50 | 12 | 46.62 | Bronze CA104 |
PWG1.0-90-1 | Wormwheel | 1.0 | 1 | 90 | 52.5 | 12 | 51.67 | Bronze CA104 |
PWG1.0-95-1 | Wormwheel | 1.0 | 1 | 95 | 55 | 12 | 56.95 | Bronze CA104 |
PWG1.0-100-1 | Wormwheel | 1.0 | 1 | 100 | 57.5 | 14 | 62.46 | Bronze CA104 |
PWG1.0-105-1 | Wormwheel | 1.0 | 1 | 105 | 60 | 14 | 68.19 | Bronze CA104 |
PWG1.0-110-1 | Wormwheel | 1.0 | 1 | 110 | 62.5 | 14 | 74.15 | Bronze CA104 |
PWG1.0-115-1 | Wormwheel | 1.0 | 1 | 115 | 65 | 14 | 80.32 | Bronze CA104 |
PWG1.0-120-1 | Wormwheel | 1.0 | 1 | 120 | 67.5 | 14 | 84.71 | Bronze CA104 |
PWG1.0-125-1 | Wormwheel | 1.0 | 1 | 125 | 70 | 14 | 88.57 | Bronze CA104 |
PWG1.0-15-2 | Wormwheel | 1.0 | 2 | 15 | 15 | 5 | 2.12 | Bronze CA104 |
PWG1.0-16-2 | Wormwheel | 1.0 | 2 | 16 | 15.5 | 5 | 2.38 | Bronze CA104 |
PWG1.0-17-2 | Wormwheel | 1.0 | 2 | 17 | 16 | 5 | 2.65 | Bronze CA104 |
PWG1.0-18-2 | Wormwheel | 1.0 | 2 | 18 | 16.5 | 5 | 2.94 | Bronze CA104 |
PWG1.0-19-2 | Wormwheel | 1.0 | 2 | 19 | 17 | 5 | 3.24 | Bronze CA104 |
PWG1.0-20-2 | Wormwheel | 1.0 | 2 | 20 | 17.5 | 5 | 3.56 | Bronze CA104 |
PWG1.0-21-2 | Wormwheel | 1.0 | 2 | 21 | 18 | 5 | 3.88 | Bronze CA104 |
PWG1.0-22-2 | Wormwheel | 1.0 | 2 | 22 | 18.5 | 5 | 4.22 | Bronze CA104 |
PWG1.0-23-2 | Wormwheel | 1.0 | 2 | 23 | 19 | 5 | 4.57 | Bronze CA104 |
PWG1.0-24-2 | Wormwheel | 1.0 | 2 | 24 | 19.5 | 6 | 4.94 | Bronze CA104 |
PWG1.0-25-2 | Wormwheel | 1.0 | 2 | 25 | 20 | 6 | 5.31 | Bronze CA104 |
PWG1.0-26-2 | Wormwheel | 1.0 | 2 | 26 | 20.5 | 6 | 5.7 | Bronze CA104 |
PWG1.0-27-2 | Wormwheel | 1.0 | 2 | 27 | 21 | 6 | 6.1 | Bronze CA104 |
PWG1.0-28-2 | Wormwheel | 1.0 | 2 | 28 | 21.5 | 6 | 6.52 | Bronze CA104 |
PWG1.0-29-2 | Wormwheel | 1.0 | 2 | 29 | 22 | 8 | 6.94 | Bronze CA104 |
PWG1.0-30-2 | Wormwheel | 1.0 | 2 | 30 | 22.5 | 8 | 7.38 | Bronze CA104 |
PWG1.0-32-2 | Wormwheel | 1.0 | 2 | 32 | 23.5 | 8 | 8.29 | Bronze CA104 |
PWG1.0-35-2 | Wormwheel | 1.0 | 2 | 35 | 25 | 8 | 9.74 | Bronze CA104 |
PWG1.0-38-2 | Wormwheel | 1.0 | 2 | 38 | 26.5 | 10 | 11.29 | Bronze CA104 |
PWG1.0-40-2 | Wormwheel | 1.0 | 2 | 40 | 27.5 | 10 | 12.39 | Bronze CA104 |
PWG1.0-42-2 | Wormwheel | 1.0 | 2 | 42 | 28.5 | 10 | 13.52 | Bronze CA104 |
PWG1.0-45-2 | Wormwheel | 1.0 | 2 | 45 | 30 | 10 | 15.31 | Bronze CA104 |
PWG1.0-48-2 | Wormwheel | 1.0 | 2 | 48 | 31.5 | 10 | 17.2 | Bronze CA104 |
PWG1.0-50-2 | Wormwheel | 1.0 | 2 | 50 | 32.5 | 10 | 18.51 | Bronze CA104 |
PWG1.0-52-2 | Wormwheel | 1.0 | 2 | 52 | 33.5 | 10 | 19.86 | Bronze CA104 |
PWG1.0-55-2 | Wormwheel | 1.0 | 2 | 55 | 35 | 10 | 21.97 | Bronze CA104 |
PWG1.0-58-2 | Wormwheel | 1.0 | 2 | 58 | 36.5 | 10 | 24.18 | Bronze CA104 |
PWG1.0-60-2 | Wormwheel | 1.0 | 2 | 60 | 37.5 | 10 | 25.7 | Bronze CA104 |
PWG1.0-62-2 | Wormwheel | 1.0 | 2 | 62 | 38.5 | 10 | 27.26 | Bronze CA104 |
PWG1.0-65-2 | Wormwheel | 1.0 | 2 | 65 | 40 | 10 | 29.68 | Bronze CA104 |
PWG1.0-68-2 | Wormwheel | 1.0 | 2 | 68 | 41.5 | 10 | 32.19 | Bronze CA104 |
PWG1.0-70-2 | Wormwheel | 1.0 | 2 | 70 | 42.5 | 10 | 33.91 | Bronze CA104 |
PWG1.0-72-2 | Wormwheel | 1.0 | 2 | 72 | 43.5 | 10 | 35.68 | Bronze CA104 |
PWG1.0-75-2 | Wormwheel | 1.0 | 2 | 75 | 45 | 10 | 38.4 | Bronze CA104 |
PWG1.0-78-2 | Wormwheel | 1.0 | 2 | 78 | 46.5 | 10 | 41.21 | Bronze CA104 |
PWG1.0-80-2 | Wormwheel | 1.0 | 2 | 80 | 47.5 | 10 | 43.13 | Bronze CA104 |
PWG1.0-82-2 | Wormwheel | 1.0 | 2 | 82 | 48.5 | 12 | 45.09 | Bronze CA104 |
PWG1.0-85-2 | Wormwheel | 1.0 | 2 | 85 | 50 | 12 | 48.1 | Bronze CA104 |
PWG1.0-90-2 | Wormwheel | 1.0 | 2 | 90 | 52.5 | 12 | 53.31 | Bronze CA104 |
PWG1.0-95-2 | Wormwheel | 1.0 | 2 | 95 | 55 | 12 | 58.76 | Bronze CA104 |
PWG1.0-100-2 | Wormwheel | 1.0 | 2 | 100 | 57.5 | 14 | 64.45 | Bronze CA104 |
PWG1.0-105-2 | Wormwheel | 1.0 | 2 | 105 | 60 | 14 | 68.61 | Bronze CA104 |
PWG1.0-110-2 | Wormwheel | 1.0 | 2 | 110 | 62.5 | 14 | 72.18 | Bronze CA104 |
PWG1.0-115-2 | Wormwheel | 1.0 | 2 | 115 | 65 | 14 | 75.76 | Bronze CA104 |
PWG1.0-120-2 | Wormwheel | 1.0 | 2 | 120 | 67.5 | 14 | 79.36 | Bronze CA104 |
PWG1.0-125-2 | Wormwheel | 1.0 | 2 | 125 | 70 | 14 | 82.97 | Bronze CA104 |
PWG1.0-15-3 | Wormwheel | 1.0 | 3 | 15 | 15 | 5 | 2.25 | Bronze CA104 |
PWG1.0-16-3 | Wormwheel | 1.0 | 3 | 16 | 15.5 | 5 | 2.52 | Bronze CA104 |
PWG1.0-17-3 | Wormwheel | 1.0 | 3 | 17 | 16 | 5 | 2.81 | Bronze CA104 |
PWG1.0-18-3 | Wormwheel | 1.0 | 3 | 18 | 16.5 | 5 | 3.12 | Bronze CA104 |
PWG1.0-19-3 | Wormwheel | 1.0 | 3 | 19 | 17 | 5 | 3.44 | Bronze CA104 |
PWG1.0-20-3 | Wormwheel | 1.0 | 3 | 20 | 17.5 | 5 | 3.77 | Bronze CA104 |
PWG1.0-21-3 | Wormwheel | 1.0 | 3 | 21 | 18 | 5 | 4.12 | Bronze CA104 |
PWG1.0-22-3 | Wormwheel | 1.0 | 3 | 22 | 18.5 | 5 | 4.48 | Bronze CA104 |
PWG1.0-23-3 | Wormwheel | 1.0 | 3 | 23 | 19 | 5 | 4.85 | Bronze CA104 |
PWG1.0-24-3 | Wormwheel | 1.0 | 3 | 24 | 19.5 | 6 | 5.24 | Bronze CA104 |
PWG1.0-25-3 | Wormwheel | 1.0 | 3 | 25 | 20 | 6 | 5.64 | Bronze CA104 |
PWG1.0-26-3 | Wormwheel | 1.0 | 3 | 26 | 20.5 | 6 | 6.05 | Bronze CA104 |
PWG1.0-27-3 | Wormwheel | 1.0 | 3 | 27 | 21 | 6 | 6.47 | Bronze CA104 |
PWG1.0-28-3 | Wormwheel | 1.0 | 3 | 28 | 21.5 | 6 | 6.91 | Bronze CA104 |
PWG1.0-29-3 | Wormwheel | 1.0 | 3 | 29 | 22 | 8 | 7.36 | Bronze CA104 |
PWG1.0-30-3 | Wormwheel | 1.0 | 3 | 30 | 22.5 | 8 | 7.82 | Bronze CA104 |
PWG1.0-32-3 | Wormwheel | 1.0 | 3 | 32 | 23.5 | 8 | 8.79 | Bronze CA104 |
PWG1.0-35-3 | Wormwheel | 1.0 | 3 | 35 | 25 | 8 | 10.33 | Bronze CA104 |
PWG1.0-38-3 | Wormwheel | 1.0 | 3 | 38 | 26.5 | 10 | 11.97 | Bronze CA104 |
PWG1.0-40-3 | Wormwheel | 1.0 | 3 | 40 | 27.5 | 10 | 13.13 | Bronze CA104 |
PWG1.0-42-3 | Wormwheel | 1.0 | 3 | 42 | 28.5 | 10 | 14.34 | Bronze CA104 |
PWG1.0-45-3 | Wormwheel | 1.0 | 3 | 45 | 30 | 10 | 16.23 | Bronze CA104 |
PWG1.0-48-3 | Wormwheel | 1.0 | 3 | 48 | 31.5 | 10 | 18.23 | Bronze CA104 |
PWG1.0-50-3 | Wormwheel | 1.0 | 3 | 50 | 32.5 | 10 | 19.62 | Bronze CA104 |
PWG1.0-52-3 | Wormwheel | 1.0 | 3 | 52 | 33.5 | 10 | 21.06 | Bronze CA104 |
PWG1.0-55-3 | Wormwheel | 1.0 | 3 | 55 | 35 | 10 | 23.3 | Bronze CA104 |
PWG1.0-58-3 | Wormwheel | 1.0 | 3 | 58 | 36.5 | 10 | 25.63 | Bronze CA104 |
PWG1.0-60-3 | Wormwheel | 1.0 | 3 | 60 | 37.5 | 10 | 27.25 | Bronze CA104 |
PWG1.0-62-3 | Wormwheel | 1.0 | 3 | 62 | 38.5 | 10 | 28.9 | Bronze CA104 |
PWG1.0-65-3 | Wormwheel | 1.0 | 3 | 65 | 40 | 10 | 31.47 | Bronze CA104 |
PWG1.0-68-3 | Wormwheel | 1.0 | 3 | 68 | 41.5 | 10 | 34.13 | Bronze CA104 |
PWG1.0-70-3 | Wormwheel | 1.0 | 3 | 70 | 42.5 | 10 | 35.96 | Bronze CA104 |
PWG1.0-72-3 | Wormwheel | 1.0 | 3 | 72 | 43.5 | 10 | 37.83 | Bronze CA104 |
PWG1.0-75-3 | Wormwheel | 1.0 | 3 | 75 | 45 | 10 | 40.71 | Bronze CA104 |
PWG1.0-78-3 | Wormwheel | 1.0 | 3 | 78 | 46.5 | 10 | 43.69 | Bronze CA104 |
PWG1.0-80-3 | Wormwheel | 1.0 | 3 | 80 | 47.5 | 10 | 45.73 | Bronze CA104 |
PWG1.0-82-3 | Wormwheel | 1.0 | 3 | 82 | 48.5 | 12 | 47.81 | Bronze CA104 |
PWG1.0-85-3 | Wormwheel | 1.0 | 3 | 85 | 50 | 12 | 51 | Bronze CA104 |
PWG1.0-90-3 | Wormwheel | 1.0 | 3 | 90 | 52.5 | 12 | 56.53 | Bronze CA104 |
PWG1.0-95-3 | Wormwheel | 1.0 | 3 | 95 | 55 | 12 | 61.05 | Bronze CA104 |
PWG1.0-100-3 | Wormwheel | 1.0 | 3 | 100 | 57.5 | 14 | 64.6 | Bronze CA104 |
PWG1.0-105-3 | Wormwheel | 1.0 | 3 | 105 | 60 | 14 | 67.98 | Bronze CA104 |
PWG1.0-110-3 | Wormwheel | 1.0 | 3 | 110 | 62.5 | 14 | 71.22 | Bronze CA104 |
PWG1.0-115-3 | Wormwheel | 1.0 | 3 | 115 | 65 | 14 | 74.46 | Bronze CA104 |
PWG1.0-120-3 | Wormwheel | 1.0 | 3 | 120 | 67.5 | 14 | 77.69 | Bronze CA104 |
PWG1.0-125-3 | Wormwheel | 1.0 | 3 | 125 | 70 | 14 | 80.93 | Bronze CA104 |
PWG1.0-15-4 | Wormwheel | 1.0 | 4 | 15 | 15 | 5 | 2.45 | Bronze CA104 |
PWG1.0-16-4 | Wormwheel | 1.0 | 4 | 16 | 15.5 | 5 | 2.75 | Bronze CA104 |
PWG1.0-17-4 | Wormwheel | 1.0 | 4 | 17 | 16 | 5 | 3.06 | Bronze CA104 |
PWG1.0-18-4 | Wormwheel | 1.0 | 4 | 18 | 16.5 | 5 | 3.4 | Bronze CA104 |
PWG1.0-19-4 | Wormwheel | 1.0 | 4 | 19 | 17 | 5 | 3.74 | Bronze CA104 |
PWG1.0-20-4 | Wormwheel | 1.0 | 4 | 20 | 17.5 | 5 | 4.11 | Bronze CA104 |
PWG1.0-21-4 | Wormwheel | 1.0 | 4 | 21 | 18 | 5 | 4.48 | Bronze CA104 |
PWG1.0-22-4 | Wormwheel | 1.0 | 4 | 22 | 18.5 | 5 | 4.87 | Bronze CA104 |
PWG1.0-23-4 | Wormwheel | 1.0 | 4 | 23 | 19 | 5 | 5.28 | Bronze CA104 |
PWG1.0-24-4 | Wormwheel | 1.0 | 4 | 24 | 19.5 | 6 | 5.7 | Bronze CA104 |
PWG1.0-25-4 | Wormwheel | 1.0 | 4 | 25 | 20 | 6 | 6.14 | Bronze CA104 |
PWG1.0-26-4 | Wormwheel | 1.0 | 4 | 26 | 20.5 | 6 | 6.58 | Bronze CA104 |
PWG1.0-27-4 | Wormwheel | 1.0 | 4 | 27 | 21 | 6 | 7.05 | Bronze CA104 |
PWG1.0-28-4 | Wormwheel | 1.0 | 4 | 28 | 21.5 | 6 | 7.52 | Bronze CA104 |
PWG1.0-29-4 | Wormwheel | 1.0 | 4 | 29 | 22 | 8 | 8.01 | Bronze CA104 |
PWG1.0-30-4 | Wormwheel | 1.0 | 4 | 30 | 22.5 | 8 | 8.52 | Bronze CA104 |
PWG1.0-32-4 | Wormwheel | 1.0 | 4 | 32 | 23.5 | 8 | 9.57 | Bronze CA104 |
PWG1.0-35-4 | Wormwheel | 1.0 | 4 | 35 | 25 | 8 | 11.24 | Bronze CA104 |
PWG1.0-38-4 | Wormwheel | 1.0 | 4 | 38 | 26.5 | 10 | 13.04 | Bronze CA104 |
PWG1.0-40-4 | Wormwheel | 1.0 | 4 | 40 | 27.5 | 10 | 14.3 | Bronze CA104 |
PWG1.0-42-4 | Wormwheel | 1.0 | 4 | 42 | 28.5 | 10 | 15.61 | Bronze CA104 |
PWG1.0-45-4 | Wormwheel | 1.0 | 4 | 45 | 30 | 10 | 17.67 | Bronze CA104 |
PWG1.0-48-4 | Wormwheel | 1.0 | 4 | 48 | 31.5 | 10 | 19.85 | Bronze CA104 |
PWG1.0-50-4 | Wormwheel | 1.0 | 4 | 50 | 32.5 | 10 | 21.37 | Bronze CA104 |
PWG1.0-52-4 | Wormwheel | 1.0 | 4 | 52 | 33.5 | 10 | 22.93 | Bronze CA104 |
PWG1.0-55-4 | Wormwheel | 1.0 | 4 | 55 | 35 | 10 | 25.36 | Bronze CA104 |
PWG1.0-58-4 | Wormwheel | 1.0 | 4 | 58 | 36.5 | 10 | 27.91 | Bronze CA104 |
PWG1.0-60-4 | Wormwheel | 1.0 | 4 | 60 | 37.5 | 10 | 29.66 | Bronze CA104 |
PWG1.0-62-4 | Wormwheel | 1.0 | 4 | 62 | 38.5 | 10 | 31.47 | Bronze CA104 |
PWG1.0-65-4 | Wormwheel | 1.0 | 4 | 65 | 40 | 10 | 34.26 | Bronze CA104 |
PWG1.0-68-4 | Wormwheel | 1.0 | 4 | 68 | 41.5 | 10 | 37.16 | Bronze CA104 |
PWG1.0-70-4 | Wormwheel | 1.0 | 4 | 70 | 42.5 | 10 | 39.15 | Bronze CA104 |
PWG1.0-72-4 | Wormwheel | 1.0 | 4 | 72 | 43.5 | 10 | 41.19 | Bronze CA104 |
PWG1.0-75-4 | Wormwheel | 1.0 | 4 | 75 | 45 | 10 | 44.33 | Bronze CA104 |
PWG1.0-78-4 | Wormwheel | 1.0 | 4 | 78 | 46.5 | 10 | 47 | Bronze CA104 |
PWG1.0-80-4 | Wormwheel | 1.0 | 4 | 80 | 47.5 | 10 | 48.33 | Bronze CA104 |
PWG1.0-82-4 | Wormwheel | 1.0 | 4 | 82 | 48.5 | 12 | 49.67 | Bronze CA104 |
PWG1.0-85-4 | Wormwheel | 1.0 | 4 | 85 | 50 | 12 | 51.68 | Bronze CA104 |
PWG1.0-90-4 | Wormwheel | 1.0 | 4 | 90 | 52.5 | 12 | 55.05 | Bronze CA104 |
PWG1.0-95-4 | Wormwheel | 1.0 | 4 | 95 | 55 | 12 | 58.43 | Bronze CA104 |
PWG1.0-100-4 | Wormwheel | 1.0 | 4 | 100 | 57.5 | 14 | 61.83 | Bronze CA104 |
PWG1.0-105-4 | Wormwheel | 1.0 | 4 | 105 | 60 | 14 | 65.25 | Bronze CA104 |
PWG1.0-110-4 | Wormwheel | 1.0 | 4 | 110 | 62.5 | 14 | 68.68 | Bronze CA104 |
PWG1.0-115-4 | Wormwheel | 1.0 | 4 | 115 | 65 | 14 | 72.12 | Bronze CA104 |
PWG1.0-120-4 | Wormwheel | 1.0 | 4 | 120 | 67.5 | 14 | 75.58 | Bronze CA104 |
PWG1.0-125-4 | Wormwheel | 1.0 | 4 | 125 | 70 | 14 | 79.05 | Bronze CA104 |
PWG1.0-15-1PK | Wormwheel | 1.0 | 1 | 15 | 15 | 5 | 1.23 | PEEK GF 30 |
PWG1.0-16-1PK | Wormwheel | 1.0 | 1 | 16 | 15.5 | 5 | 1.38 | PEEK GF 30 |
PWG1.0-17-1PK | Wormwheel | 1.0 | 1 | 17 | 16 | 5 | 1.54 | PEEK GF 30 |
PWG1.0-18-1PK | Wormwheel | 1.0 | 1 | 18 | 16.5 | 5 | 1.71 | PEEK GF 30 |
PWG1.0-19-1PK | Wormwheel | 1.0 | 1 | 19 | 17 | 5 | 1.89 | PEEK GF 30 |
PWG1.0-20-1PK | Wormwheel | 1.0 | 1 | 20 | 17.5 | 5 | 2.07 | PEEK GF 30 |
PWG1.0-21-1PK | Wormwheel | 1.0 | 1 | 21 | 18 | 5 | 2.26 | PEEK GF 30 |
PWG1.0-22-1PK | Wormwheel | 1.0 | 1 | 22 | 18.5 | 5 | 2.46 | PEEK GF 30 |
PWG1.0-23-1PK | Wormwheel | 1.0 | 1 | 23 | 19 | 5 | 2.66 | PEEK GF 30 |
PWG1.0-24-1PK | Wormwheel | 1.0 | 1 | 24 | 19.5 | 6 | 2.87 | PEEK GF 30 |
PWG1.0-25-1PK | Wormwheel | 1.0 | 1 | 25 | 20 | 6 | 3.09 | PEEK GF 30 |
PWG1.0-26-1PK | Wormwheel | 1.0 | 1 | 26 | 20.5 | 6 | 3.32 | PEEK GF 30 |
PWG1.0-27-1PK | Wormwheel | 1.0 | 1 | 27 | 21 | 6 | 3.55 | PEEK GF 30 |
PWG1.0-28-1PK | Wormwheel | 1.0 | 1 | 28 | 21.5 | 6 | 3.79 | PEEK GF 30 |
PWG1.0-29-1PK | Wormwheel | 1.0 | 1 | 29 | 22 | 8 | 4.04 | PEEK GF 30 |
PWG1.0-30-1PK | Wormwheel | 1.0 | 1 | 30 | 22.5 | 8 | 4.29 | PEEK GF 30 |
PWG1.0-32-1PK | Wormwheel | 1.0 | 1 | 32 | 23.5 | 8 | 4.82 | PEEK GF 30 |
PWG1.0-35-1PK | Wormwheel | 1.0 | 1 | 35 | 25 | 8 | 5.66 | PEEK GF 30 |
PWG1.0-38-1PK | Wormwheel | 1.0 | 1 | 38 | 26.5 | 10 | 6.57 | PEEK GF 30 |
PWG1.0-40-1PK | Wormwheel | 1.0 | 1 | 40 | 27.5 | 10 | 7.2 | PEEK GF 30 |
PWG1.0-42-1PK | Wormwheel | 1.0 | 1 | 42 | 28.5 | 10 | 7.86 | PEEK GF 30 |
PWG1.0-45-1PK | Wormwheel | 1.0 | 1 | 45 | 30 | 10 | 8.9 | PEEK GF 30 |
PWG1.0-48-1PK | Wormwheel | 1.0 | 1 | 48 | 31.5 | 10 | 10 | PEEK GF 30 |
PWG1.0-50-1PK | Wormwheel | 1.0 | 1 | 50 | 32.5 | 10 | 10.76 | PEEK GF 30 |
PWG1.0-52-1PK | Wormwheel | 1.0 | 1 | 52 | 33.5 | 10 | 11.55 | PEEK GF 30 |
PWG1.0-55-1PK | Wormwheel | 1.0 | 1 | 55 | 35 | 10 | 12.78 | PEEK GF 30 |
PWG1.0-58-1PK | Wormwheel | 1.0 | 1 | 58 | 36.5 | 10 | 14.06 | PEEK GF 30 |
PWG1.0-60-1PK | Wormwheel | 1.0 | 1 | 60 | 37.5 | 10 | 14.94 | PEEK GF 30 |
PWG1.0-62-1PK | Wormwheel | 1.0 | 1 | 62 | 38.5 | 10 | 15.85 | PEEK GF 30 |
PWG1.0-65-1PK | Wormwheel | 1.0 | 1 | 65 | 40 | 10 | 17.26 | PEEK GF 30 |
PWG1.0-68-1PK | Wormwheel | 1.0 | 1 | 68 | 41.5 | 10 | 18.72 | PEEK GF 30 |
PWG1.0-70-1PK | Wormwheel | 1.0 | 1 | 70 | 42.5 | 10 | 19.72 | PEEK GF 30 |
PWG1.0-72-1PK | Wormwheel | 1.0 | 1 | 72 | 43.5 | 10 | 20.75 | PEEK GF 30 |
PWG1.0-75-1PK | Wormwheel | 1.0 | 1 | 75 | 45 | 10 | 22.33 | PEEK GF 30 |
PWG1.0-78-1PK | Wormwheel | 1.0 | 1 | 78 | 46.5 | 10 | 23.96 | PEEK GF 30 |
PWG1.0-80-1PK | Wormwheel | 1.0 | 1 | 80 | 47.5 | 10 | 25.08 | PEEK GF 30 |
PWG1.0-82-1PK | Wormwheel | 1.0 | 1 | 82 | 48.5 | 12 | 26.22 | PEEK GF 30 |
PWG1.0-85-1PK | Wormwheel | 1.0 | 1 | 85 | 50 | 12 | 27.97 | PEEK GF 30 |
PWG1.0-90-1PK | Wormwheel | 1.0 | 1 | 90 | 52.5 | 12 | 31 | PEEK GF 30 |
PWG1.0-95-1PK | Wormwheel | 1.0 | 1 | 95 | 55 | 12 | 34.17 | PEEK GF 30 |
PWG1.0-100-1PK | Wormwheel | 1.0 | 1 | 100 | 57.5 | 14 | 37.47 | PEEK GF 30 |
PWG1.0-105-1PK | Wormwheel | 1.0 | 1 | 105 | 60 | 14 | 40.91 | PEEK GF 30 |
PWG1.0-110-1PK | Wormwheel | 1.0 | 1 | 110 | 62.5 | 14 | 44.49 | PEEK GF 30 |
PWG1.0-115-1PK | Wormwheel | 1.0 | 1 | 115 | 65 | 14 | 48.19 | PEEK GF 30 |
PWG1.0-120-1PK | Wormwheel | 1.0 | 1 | 120 | 67.5 | 14 | 50.83 | PEEK GF 30 |
PWG1.0-125-1PK | Wormwheel | 1.0 | 1 | 125 | 70 | 14 | 53.14 | PEEK GF 30 |
PWG1.0-15-2PK | Wormwheel | 1.0 | 2 | 15 | 15 | 5 | 1.27 | PEEK GF 30 |
PWG1.0-16-2PK | Wormwheel | 1.0 | 2 | 16 | 15.5 | 5 | 1.43 | PEEK GF 30 |
PWG1.0-17-2PK | Wormwheel | 1.0 | 2 | 17 | 16 | 5 | 1.59 | PEEK GF 30 |
PWG1.0-18-2PK | Wormwheel | 1.0 | 2 | 18 | 16.5 | 5 | 1.77 | PEEK GF 30 |
PWG1.0-19-2PK | Wormwheel | 1.0 | 2 | 19 | 17 | 5 | 1.95 | PEEK GF 30 |
PWG1.0-20-2PK | Wormwheel | 1.0 | 2 | 20 | 17.5 | 5 | 2.13 | PEEK GF 30 |
PWG1.0-21-2PK | Wormwheel | 1.0 | 2 | 21 | 18 | 5 | 2.33 | PEEK GF 30 |
PWG1.0-22-2PK | Wormwheel | 1.0 | 2 | 22 | 18.5 | 5 | 2.53 | PEEK GF 30 |
PWG1.0-23-2PK | Wormwheel | 1.0 | 2 | 23 | 19 | 5 | 2.74 | PEEK GF 30 |
PWG1.0-24-2PK | Wormwheel | 1.0 | 2 | 24 | 19.5 | 6 | 2.96 | PEEK GF 30 |
PWG1.0-25-2PK | Wormwheel | 1.0 | 2 | 25 | 20 | 6 | 3.19 | PEEK GF 30 |
PWG1.0-26-2PK | Wormwheel | 1.0 | 2 | 26 | 20.5 | 6 | 3.42 | PEEK GF 30 |
PWG1.0-27-2PK | Wormwheel | 1.0 | 2 | 27 | 21 | 6 | 3.66 | PEEK GF 30 |
PWG1.0-28-2PK | Wormwheel | 1.0 | 2 | 28 | 21.5 | 6 | 3.91 | PEEK GF 30 |
PWG1.0-29-2PK | Wormwheel | 1.0 | 2 | 29 | 22 | 8 | 4.17 | PEEK GF 30 |
PWG1.0-30-2PK | Wormwheel | 1.0 | 2 | 30 | 22.5 | 8 | 4.43 | PEEK GF 30 |
PWG1.0-32-2PK | Wormwheel | 1.0 | 2 | 32 | 23.5 | 8 | 4.97 | PEEK GF 30 |
PWG1.0-35-2PK | Wormwheel | 1.0 | 2 | 35 | 25 | 8 | 5.84 | PEEK GF 30 |
PWG1.0-38-2PK | Wormwheel | 1.0 | 2 | 38 | 26.5 | 10 | 6.78 | PEEK GF 30 |
PWG1.0-40-2PK | Wormwheel | 1.0 | 2 | 40 | 27.5 | 10 | 7.43 | PEEK GF 30 |
PWG1.0-42-2PK | Wormwheel | 1.0 | 2 | 42 | 28.5 | 10 | 8.11 | PEEK GF 30 |
PWG1.0-45-2PK | Wormwheel | 1.0 | 2 | 45 | 30 | 10 | 9.19 | PEEK GF 30 |
PWG1.0-48-2PK | Wormwheel | 1.0 | 2 | 48 | 31.5 | 10 | 10.32 | PEEK GF 30 |
PWG1.0-50-2PK | Wormwheel | 1.0 | 2 | 50 | 32.5 | 10 | 11.1 | PEEK GF 30 |
PWG1.0-52-2PK | Wormwheel | 1.0 | 2 | 52 | 33.5 | 10 | 11.92 | PEEK GF 30 |
PWG1.0-55-2PK | Wormwheel | 1.0 | 2 | 55 | 35 | 10 | 13.18 | PEEK GF 30 |
PWG1.0-58-2PK | Wormwheel | 1.0 | 2 | 58 | 36.5 | 10 | 14.51 | PEEK GF 30 |
PWG1.0-60-2PK | Wormwheel | 1.0 | 2 | 60 | 37.5 | 10 | 15.42 | PEEK GF 30 |
PWG1.0-62-2PK | Wormwheel | 1.0 | 2 | 62 | 38.5 | 10 | 16.36 | PEEK GF 30 |
PWG1.0-65-2PK | Wormwheel | 1.0 | 2 | 65 | 40 | 10 | 17.81 | PEEK GF 30 |
PWG1.0-68-2PK | Wormwheel | 1.0 | 2 | 68 | 41.5 | 10 | 19.31 | PEEK GF 30 |
PWG1.0-70-2PK | Wormwheel | 1.0 | 2 | 70 | 42.5 | 10 | 20.35 | PEEK GF 30 |
PWG1.0-72-2PK | Wormwheel | 1.0 | 2 | 72 | 43.5 | 10 | 21.41 | PEEK GF 30 |
PWG1.0-75-2PK | Wormwheel | 1.0 | 2 | 75 | 45 | 10 | 23.04 | PEEK GF 30 |
PWG1.0-78-2PK | Wormwheel | 1.0 | 2 | 78 | 46.5 | 10 | 24.72 | PEEK GF 30 |
PWG1.0-80-2PK | Wormwheel | 1.0 | 2 | 80 | 47.5 | 10 | 25.88 | PEEK GF 30 |
PWG1.0-82-2PK | Wormwheel | 1.0 | 2 | 82 | 48.5 | 12 | 27.05 | PEEK GF 30 |
PWG1.0-85-2PK | Wormwheel | 1.0 | 2 | 85 | 50 | 12 | 28.86 | PEEK GF 30 |
PWG1.0-90-2PK | Wormwheel | 1.0 | 2 | 90 | 52.5 | 12 | 31.99 | PEEK GF 30 |
PWG1.0-95-2PK | Wormwheel | 1.0 | 2 | 95 | 55 | 12 | 35.26 | PEEK GF 30 |
PWG1.0-100-2PK | Wormwheel | 1.0 | 2 | 100 | 57.5 | 14 | 38.67 | PEEK GF 30 |
PWG1.0-105-2PK | Wormwheel | 1.0 | 2 | 105 | 60 | 14 | 41.16 | PEEK GF 30 |
PWG1.0-110-2PK | Wormwheel | 1.0 | 2 | 110 | 62.5 | 14 | 43.31 | PEEK GF 30 |
PWG1.0-115-2PK | Wormwheel | 1.0 | 2 | 115 | 65 | 14 | 45.46 | PEEK GF 30 |
PWG1.0-120-2PK | Wormwheel | 1.0 | 2 | 120 | 67.5 | 14 | 47.61 | PEEK GF 30 |
PWG1.0-125-2PK | Wormwheel | 1.0 | 2 | 125 | 70 | 14 | 49.78 | PEEK GF 30 |
PWG1.0-15-3PK | Wormwheel | 1.0 | 3 | 15 | 15 | 5 | 1.35 | PEEK GF 30 |
PWG1.0-16-3PK | Wormwheel | 1.0 | 3 | 16 | 15.5 | 5 | 1.51 | PEEK GF 30 |
PWG1.0-17-3PK | Wormwheel | 1.0 | 3 | 17 | 16 | 5 | 1.69 | PEEK GF 30 |
PWG1.0-18-3PK | Wormwheel | 1.0 | 3 | 18 | 16.5 | 5 | 1.87 | PEEK GF 30 |
PWG1.0-19-3PK | Wormwheel | 1.0 | 3 | 19 | 17 | 5 | 2.06 | PEEK GF 30 |
PWG1.0-20-3PK | Wormwheel | 1.0 | 3 | 20 | 17.5 | 5 | 2.26 | PEEK GF 30 |
PWG1.0-21-3PK | Wormwheel | 1.0 | 3 | 21 | 18 | 5 | 2.47 | PEEK GF 30 |
PWG1.0-22-3PK | Wormwheel | 1.0 | 3 | 22 | 18.5 | 5 | 2.69 | PEEK GF 30 |
PWG1.0-23-3PK | Wormwheel | 1.0 | 3 | 23 | 19 | 5 | 2.91 | PEEK GF 30 |
PWG1.0-24-3PK | Wormwheel | 1.0 | 3 | 24 | 19.5 | 6 | 3.14 | PEEK GF 30 |
PWG1.0-25-3PK | Wormwheel | 1.0 | 3 | 25 | 20 | 6 | 3.38 | PEEK GF 30 |
PWG1.0-26-3PK | Wormwheel | 1.0 | 3 | 26 | 20.5 | 6 | 3.63 | PEEK GF 30 |
PWG1.0-27-3PK | Wormwheel | 1.0 | 3 | 27 | 21 | 6 | 3.88 | PEEK GF 30 |
PWG1.0-28-3PK | Wormwheel | 1.0 | 3 | 28 | 21.5 | 6 | 4.15 | PEEK GF 30 |
PWG1.0-29-3PK | Wormwheel | 1.0 | 3 | 29 | 22 | 8 | 4.42 | PEEK GF 30 |
PWG1.0-30-3PK | Wormwheel | 1.0 | 3 | 30 | 22.5 | 8 | 4.69 | PEEK GF 30 |
PWG1.0-32-3PK | Wormwheel | 1.0 | 3 | 32 | 23.5 | 8 | 5.27 | PEEK GF 30 |
PWG1.0-35-3PK | Wormwheel | 1.0 | 3 | 35 | 25 | 8 | 6.2 | PEEK GF 30 |
PWG1.0-38-3PK | Wormwheel | 1.0 | 3 | 38 | 26.5 | 10 | 7.18 | PEEK GF 30 |
PWG1.0-40-3PK | Wormwheel | 1.0 | 3 | 40 | 27.5 | 10 | 7.88 | PEEK GF 30 |
PWG1.0-42-3PK | Wormwheel | 1.0 | 3 | 42 | 28.5 | 10 | 8.6 | PEEK GF 30 |
PWG1.0-45-3PK | Wormwheel | 1.0 | 3 | 45 | 30 | 10 | 9.74 | PEEK GF 30 |
PWG1.0-48-3PK | Wormwheel | 1.0 | 3 | 48 | 31.5 | 10 | 10.94 | PEEK GF 30 |
PWG1.0-50-3PK | Wormwheel | 1.0 | 3 | 50 | 32.5 | 10 | 11.77 | PEEK GF 30 |
PWG1.0-52-3PK | Wormwheel | 1.0 | 3 | 52 | 33.5 | 10 | 12.64 | PEEK GF 30 |
PWG1.0-55-3PK | Wormwheel | 1.0 | 3 | 55 | 35 | 10 | 13.98 | PEEK GF 30 |
PWG1.0-58-3PK | Wormwheel | 1.0 | 3 | 58 | 36.5 | 10 | 15.38 | PEEK GF 30 |
PWG1.0-60-3PK | Wormwheel | 1.0 | 3 | 60 | 37.5 | 10 | 16.35 | PEEK GF 30 |
PWG1.0-62-3PK | Wormwheel | 1.0 | 3 | 62 | 38.5 | 10 | 17.34 | PEEK GF 30 |
PWG1.0-65-3PK | Wormwheel | 1.0 | 3 | 65 | 40 | 10 | 18.88 | PEEK GF 30 |
PWG1.0-68-3PK | Wormwheel | 1.0 | 3 | 68 | 41.5 | 10 | 20.48 | PEEK GF 30 |
PWG1.0-70-3PK | Wormwheel | 1.0 | 3 | 70 | 42.5 | 10 | 21.58 | PEEK GF 30 |
PWG1.0-72-3PK | Wormwheel | 1.0 | 3 | 72 | 43.5 | 10 | 22.7 | PEEK GF 30 |
PWG1.0-75-3PK | Wormwheel | 1.0 | 3 | 75 | 45 | 10 | 24.43 | PEEK GF 30 |
PWG1.0-78-3PK | Wormwheel | 1.0 | 3 | 78 | 46.5 | 10 | 26.21 | PEEK GF 30 |
PWG1.0-80-3PK | Wormwheel | 1.0 | 3 | 80 | 47.5 | 10 | 27.44 | PEEK GF 30 |
PWG1.0-82-3PK | Wormwheel | 1.0 | 3 | 82 | 48.5 | 12 | 28.68 | PEEK GF 30 |
PWG1.0-85-3PK | Wormwheel | 1.0 | 3 | 85 | 50 | 12 | 30.6 | PEEK GF 30 |
PWG1.0-90-3PK | Wormwheel | 1.0 | 3 | 90 | 52.5 | 12 | 33.92 | PEEK GF 30 |
PWG1.0-95-3PK | Wormwheel | 1.0 | 3 | 95 | 55 | 12 | 36.63 | PEEK GF 30 |
PWG1.0-100-3PK | Wormwheel | 1.0 | 3 | 100 | 57.5 | 14 | 38.76 | PEEK GF 30 |
PWG1.0-105-3PK | Wormwheel | 1.0 | 3 | 105 | 60 | 14 | 40.79 | PEEK GF 30 |
PWG1.0-110-3PK | Wormwheel | 1.0 | 3 | 110 | 62.5 | 14 | 42.73 | PEEK GF 30 |
PWG1.0-115-3PK | Wormwheel | 1.0 | 3 | 115 | 65 | 14 | 44.67 | PEEK GF 30 |
PWG1.0-120-3PK | Wormwheel | 1.0 | 3 | 120 | 67.5 | 14 | 46.62 | PEEK GF 30 |
PWG1.0-125-3PK | Wormwheel | 1.0 | 3 | 125 | 70 | 14 | 48.56 | PEEK GF 30 |
PWG1.0-15-4PK | Wormwheel | 1.0 | 4 | 15 | 15 | 5 | 1.47 | PEEK GF 30 |
PWG1.0-16-4PK | Wormwheel | 1.0 | 4 | 16 | 15.5 | 5 | 1.65 | PEEK GF 30 |
PWG1.0-17-4PK | Wormwheel | 1.0 | 4 | 17 | 16 | 5 | 1.84 | PEEK GF 30 |
PWG1.0-18-4PK | Wormwheel | 1.0 | 4 | 18 | 16.5 | 5 | 2.04 | PEEK GF 30 |
PWG1.0-19-4PK | Wormwheel | 1.0 | 4 | 19 | 17 | 5 | 2.25 | PEEK GF 30 |
PWG1.0-20-4PK | Wormwheel | 1.0 | 4 | 20 | 17.5 | 5 | 2.46 | PEEK GF 30 |
PWG1.0-21-4PK | Wormwheel | 1.0 | 4 | 21 | 18 | 5 | 2.69 | PEEK GF 30 |
PWG1.0-22-4PK | Wormwheel | 1.0 | 4 | 22 | 18.5 | 5 | 2.92 | PEEK GF 30 |
PWG1.0-23-4PK | Wormwheel | 1.0 | 4 | 23 | 19 | 5 | 3.17 | PEEK GF 30 |
PWG1.0-24-4PK | Wormwheel | 1.0 | 4 | 24 | 19.5 | 6 | 3.42 | PEEK GF 30 |
PWG1.0-25-4PK | Wormwheel | 1.0 | 4 | 25 | 20 | 6 | 3.68 | PEEK GF 30 |
PWG1.0-26-4PK | Wormwheel | 1.0 | 4 | 26 | 20.5 | 6 | 3.95 | PEEK GF 30 |
PWG1.0-27-4PK | Wormwheel | 1.0 | 4 | 27 | 21 | 6 | 4.23 | PEEK GF 30 |
PWG1.0-28-4PK | Wormwheel | 1.0 | 4 | 28 | 21.5 | 6 | 4.51 | PEEK GF 30 |
PWG1.0-29-4PK | Wormwheel | 1.0 | 4 | 29 | 22 | 8 | 4.81 | PEEK GF 30 |
PWG1.0-30-4PK | Wormwheel | 1.0 | 4 | 30 | 22.5 | 8 | 5.11 | PEEK GF 30 |
PWG1.0-32-4PK | Wormwheel | 1.0 | 4 | 32 | 23.5 | 8 | 5.74 | PEEK GF 30 |
PWG1.0-35-4PK | Wormwheel | 1.0 | 4 | 35 | 25 | 8 | 6.75 | PEEK GF 30 |
PWG1.0-38-4PK | Wormwheel | 1.0 | 4 | 38 | 26.5 | 10 | 7.82 | PEEK GF 30 |
PWG1.0-40-4PK | Wormwheel | 1.0 | 4 | 40 | 27.5 | 10 | 8.58 | PEEK GF 30 |
PWG1.0-42-4PK | Wormwheel | 1.0 | 4 | 42 | 28.5 | 10 | 9.37 | PEEK GF 30 |
PWG1.0-45-4PK | Wormwheel | 1.0 | 4 | 45 | 30 | 10 | 10.6 | PEEK GF 30 |
PWG1.0-48-4PK | Wormwheel | 1.0 | 4 | 48 | 31.5 | 10 | 11.91 | PEEK GF 30 |
PWG1.0-50-4PK | Wormwheel | 1.0 | 4 | 50 | 32.5 | 10 | 12.82 | PEEK GF 30 |
PWG1.0-52-4PK | Wormwheel | 1.0 | 4 | 52 | 33.5 | 10 | 13.76 | PEEK GF 30 |
PWG1.0-55-4PK | Wormwheel | 1.0 | 4 | 55 | 35 | 10 | 15.22 | PEEK GF 30 |
PWG1.0-58-4PK | Wormwheel | 1.0 | 4 | 58 | 36.5 | 10 | 16.74 | PEEK GF 30 |
PWG1.0-60-4PK | Wormwheel | 1.0 | 4 | 60 | 37.5 | 10 | 17.8 | PEEK GF 30 |
PWG1.0-62-4PK | Wormwheel | 1.0 | 4 | 62 | 38.5 | 10 | 18.88 | PEEK GF 30 |
PWG1.0-65-4PK | Wormwheel | 1.0 | 4 | 65 | 40 | 10 | 20.56 | PEEK GF 30 |
PWG1.0-68-4PK | Wormwheel | 1.0 | 4 | 68 | 41.5 | 10 | 22.3 | PEEK GF 30 |
PWG1.0-70-4PK | Wormwheel | 1.0 | 4 | 70 | 42.5 | 10 | 23.49 | PEEK GF 30 |
PWG1.0-72-4PK | Wormwheel | 1.0 | 4 | 72 | 43.5 | 10 | 24.71 | PEEK GF 30 |
PWG1.0-75-4PK | Wormwheel | 1.0 | 4 | 75 | 45 | 10 | 26.6 | PEEK GF 30 |
PWG1.0-78-4PK | Wormwheel | 1.0 | 4 | 78 | 46.5 | 10 | 28.2 | PEEK GF 30 |
PWG1.0-80-4PK | Wormwheel | 1.0 | 4 | 80 | 47.5 | 10 | 29 | PEEK GF 30 |
PWG1.0-82-4PK | Wormwheel | 1.0 | 4 | 82 | 48.5 | 12 | 29.8 | PEEK GF 30 |
PWG1.0-85-4PK | Wormwheel | 1.0 | 4 | 85 | 50 | 12 | 31.01 | PEEK GF 30 |
PWG1.0-90-4PK | Wormwheel | 1.0 | 4 | 90 | 52.5 | 12 | 33.03 | PEEK GF 30 |
PWG1.0-95-4PK | Wormwheel | 1.0 | 4 | 95 | 55 | 12 | 35.06 | PEEK GF 30 |
PWG1.0-100-4PK | Wormwheel | 1.0 | 4 | 100 | 57.5 | 14 | 37.1 | PEEK GF 30 |
PWG1.0-105-4PK | Wormwheel | 1.0 | 4 | 105 | 60 | 14 | 39.15 | PEEK GF 30 |
PWG1.0-110-4PK | Wormwheel | 1.0 | 4 | 110 | 62.5 | 14 | 41.21 | PEEK GF 30 |
PWG1.0-115-4PK | Wormwheel | 1.0 | 4 | 115 | 65 | 14 | 43.27 | PEEK GF 30 |
PWG1.0-120-4PK | Wormwheel | 1.0 | 4 | 120 | 67.5 | 14 | 45.35 | PEEK GF 30 |
PWG1.0-125-4PK | Wormwheel | 1.0 | 4 | 125 | 70 | 14 | 47.43 | PEEK GF 30 |
PWG1.0-15-1DL | Wormwheel | 1.0 | 1 | 15 | 15 | 5 | 1.03 | Delrin POM |
PWG1.0-16-1DL | Wormwheel | 1.0 | 1 | 16 | 15.5 | 5 | 1.15 | Delrin POM |
PWG1.0-17-1DL | Wormwheel | 1.0 | 1 | 17 | 16 | 5 | 1.29 | Delrin POM |
PWG1.0-18-1DL | Wormwheel | 1.0 | 1 | 18 | 16.5 | 5 | 1.43 | Delrin POM |
PWG1.0-19-1DL | Wormwheel | 1.0 | 1 | 19 | 17 | 5 | 1.57 | Delrin POM |
PWG1.0-20-1DL | Wormwheel | 1.0 | 1 | 20 | 17.5 | 5 | 1.72 | Delrin POM |
PWG1.0-21-1DL | Wormwheel | 1.0 | 1 | 21 | 18 | 5 | 1.88 | Delrin POM |
PWG1.0-22-1DL | Wormwheel | 1.0 | 1 | 22 | 18.5 | 5 | 2.05 | Delrin POM |
PWG1.0-23-1DL | Wormwheel | 1.0 | 1 | 23 | 19 | 5 | 2.22 | Delrin POM |
PWG1.0-24-1DL | Wormwheel | 1.0 | 1 | 24 | 19.5 | 6 | 2.39 | Delrin POM |
PWG1.0-25-1DL | Wormwheel | 1.0 | 1 | 25 | 20 | 6 | 2.58 | Delrin POM |
PWG1.0-26-1DL | Wormwheel | 1.0 | 1 | 26 | 20.5 | 6 | 2.76 | Delrin POM |
PWG1.0-27-1DL | Wormwheel | 1.0 | 1 | 27 | 21 | 6 | 2.96 | Delrin POM |
PWG1.0-28-1DL | Wormwheel | 1.0 | 1 | 28 | 21.5 | 6 | 3.16 | Delrin POM |
PWG1.0-29-1DL | Wormwheel | 1.0 | 1 | 29 | 22 | 8 | 3.36 | Delrin POM |
PWG1.0-30-1DL | Wormwheel | 1.0 | 1 | 30 | 22.5 | 8 | 3.58 | Delrin POM |
PWG1.0-32-1DL | Wormwheel | 1.0 | 1 | 32 | 23.5 | 8 | 4.02 | Delrin POM |
PWG1.0-35-1DL | Wormwheel | 1.0 | 1 | 35 | 25 | 8 | 4.72 | Delrin POM |
PWG1.0-38-1DL | Wormwheel | 1.0 | 1 | 38 | 26.5 | 10 | 5.47 | Delrin POM |
PWG1.0-40-1DL | Wormwheel | 1.0 | 1 | 40 | 27.5 | 10 | 6 | Delrin POM |
PWG1.0-42-1DL | Wormwheel | 1.0 | 1 | 42 | 28.5 | 10 | 6.55 | Delrin POM |
PWG1.0-45-1DL | Wormwheel | 1.0 | 1 | 45 | 30 | 10 | 7.42 | Delrin POM |
PWG1.0-48-1DL | Wormwheel | 1.0 | 1 | 48 | 31.5 | 10 | 8.33 | Delrin POM |
PWG1.0-50-1DL | Wormwheel | 1.0 | 1 | 50 | 32.5 | 10 | 8.97 | Delrin POM |
PWG1.0-52-1DL | Wormwheel | 1.0 | 1 | 52 | 33.5 | 10 | 9.62 | Delrin POM |
PWG1.0-55-1DL | Wormwheel | 1.0 | 1 | 55 | 35 | 10 | 10.65 | Delrin POM |
PWG1.0-58-1DL | Wormwheel | 1.0 | 1 | 58 | 36.5 | 10 | 11.71 | Delrin POM |
PWG1.0-60-1DL | Wormwheel | 1.0 | 1 | 60 | 37.5 | 10 | 12.45 | Delrin POM |
PWG1.0-62-1DL | Wormwheel | 1.0 | 1 | 62 | 38.5 | 10 | 13.21 | Delrin POM |
PWG1.0-65-1DL | Wormwheel | 1.0 | 1 | 65 | 40 | 10 | 14.38 | Delrin POM |
PWG1.0-68-1DL | Wormwheel | 1.0 | 1 | 68 | 41.5 | 10 | 15.6 | Delrin POM |
PWG1.0-70-1DL | Wormwheel | 1.0 | 1 | 70 | 42.5 | 10 | 16.43 | Delrin POM |
PWG1.0-72-1DL | Wormwheel | 1.0 | 1 | 72 | 43.5 | 10 | 17.29 | Delrin POM |
PWG1.0-75-1DL | Wormwheel | 1.0 | 1 | 75 | 45 | 10 | 18.61 | Delrin POM |
PWG1.0-78-1DL | Wormwheel | 1.0 | 1 | 78 | 46.5 | 10 | 19.97 | Delrin POM |
PWG1.0-80-1DL | Wormwheel | 1.0 | 1 | 80 | 47.5 | 10 | 20.9 | Delrin POM |
PWG1.0-82-1DL | Wormwheel | 1.0 | 1 | 82 | 48.5 | 12 | 21.85 | Delrin POM |
PWG1.0-85-1DL | Wormwheel | 1.0 | 1 | 85 | 50 | 12 | 23.31 | Delrin POM |
PWG1.0-90-1DL | Wormwheel | 1.0 | 1 | 90 | 52.5 | 12 | 25.83 | Delrin POM |
PWG1.0-95-1DL | Wormwheel | 1.0 | 1 | 95 | 55 | 12 | 28.47 | Delrin POM |
PWG1.0-100-1DL | Wormwheel | 1.0 | 1 | 100 | 57.5 | 14 | 31.23 | Delrin POM |
PWG1.0-105-1DL | Wormwheel | 1.0 | 1 | 105 | 60 | 14 | 34.09 | Delrin POM |
PWG1.0-110-1DL | Wormwheel | 1.0 | 1 | 110 | 62.5 | 14 | 37.07 | Delrin POM |
PWG1.0-115-1DL | Wormwheel | 1.0 | 1 | 115 | 65 | 14 | 40.16 | Delrin POM |
PWG1.0-120-1DL | Wormwheel | 1.0 | 1 | 120 | 67.5 | 14 | 42.36 | Delrin POM |
PWG1.0-125-1DL | Wormwheel | 1.0 | 1 | 125 | 70 | 14 | 44.28 | Delrin POM |
PWG1.0-15-2DL | Wormwheel | 1.0 | 2 | 15 | 15 | 5 | 1.06 | Delrin POM |
PWG1.0-16-2DL | Wormwheel | 1.0 | 2 | 16 | 15.5 | 5 | 1.19 | Delrin POM |
PWG1.0-17-2DL | Wormwheel | 1.0 | 2 | 17 | 16 | 5 | 1.33 | Delrin POM |
PWG1.0-18-2DL | Wormwheel | 1.0 | 2 | 18 | 16.5 | 5 | 1.47 | Delrin POM |
PWG1.0-19-2DL | Wormwheel | 1.0 | 2 | 19 | 17 | 5 | 1.62 | Delrin POM |
PWG1.0-20-2DL | Wormwheel | 1.0 | 2 | 20 | 17.5 | 5 | 1.78 | Delrin POM |
PWG1.0-21-2DL | Wormwheel | 1.0 | 2 | 21 | 18 | 5 | 1.94 | Delrin POM |
PWG1.0-22-2DL | Wormwheel | 1.0 | 2 | 22 | 18.5 | 5 | 2.11 | Delrin POM |
PWG1.0-23-2DL | Wormwheel | 1.0 | 2 | 23 | 19 | 5 | 2.29 | Delrin POM |
PWG1.0-24-2DL | Wormwheel | 1.0 | 2 | 24 | 19.5 | 6 | 2.47 | Delrin POM |
PWG1.0-25-2DL | Wormwheel | 1.0 | 2 | 25 | 20 | 6 | 2.66 | Delrin POM |
PWG1.0-26-2DL | Wormwheel | 1.0 | 2 | 26 | 20.5 | 6 | 2.85 | Delrin POM |
PWG1.0-27-2DL | Wormwheel | 1.0 | 2 | 27 | 21 | 6 | 3.05 | Delrin POM |
PWG1.0-28-2DL | Wormwheel | 1.0 | 2 | 28 | 21.5 | 6 | 3.26 | Delrin POM |
PWG1.0-29-2DL | Wormwheel | 1.0 | 2 | 29 | 22 | 8 | 3.47 | Delrin POM |
PWG1.0-30-2DL | Wormwheel | 1.0 | 2 | 30 | 22.5 | 8 | 3.69 | Delrin POM |
PWG1.0-32-2DL | Wormwheel | 1.0 | 2 | 32 | 23.5 | 8 | 4.14 | Delrin POM |
PWG1.0-35-2DL | Wormwheel | 1.0 | 2 | 35 | 25 | 8 | 4.87 | Delrin POM |
PWG1.0-38-2DL | Wormwheel | 1.0 | 2 | 38 | 26.5 | 10 | 5.65 | Delrin POM |
PWG1.0-40-2DL | Wormwheel | 1.0 | 2 | 40 | 27.5 | 10 | 6.19 | Delrin POM |
PWG1.0-42-2DL | Wormwheel | 1.0 | 2 | 42 | 28.5 | 10 | 6.76 | Delrin POM |
PWG1.0-45-2DL | Wormwheel | 1.0 | 2 | 45 | 30 | 10 | 7.66 | Delrin POM |
PWG1.0-48-2DL | Wormwheel | 1.0 | 2 | 48 | 31.5 | 10 | 8.6 | Delrin POM |
PWG1.0-50-2DL | Wormwheel | 1.0 | 2 | 50 | 32.5 | 10 | 9.25 | Delrin POM |
PWG1.0-52-2DL | Wormwheel | 1.0 | 2 | 52 | 33.5 | 10 | 9.93 | Delrin POM |
PWG1.0-55-2DL | Wormwheel | 1.0 | 2 | 55 | 35 | 10 | 10.99 | Delrin POM |
PWG1.0-58-2DL | Wormwheel | 1.0 | 2 | 58 | 36.5 | 10 | 12.09 | Delrin POM |
PWG1.0-60-2DL | Wormwheel | 1.0 | 2 | 60 | 37.5 | 10 | 12.85 | Delrin POM |
PWG1.0-62-2DL | Wormwheel | 1.0 | 2 | 62 | 38.5 | 10 | 13.63 | Delrin POM |
PWG1.0-65-2DL | Wormwheel | 1.0 | 2 | 65 | 40 | 10 | 14.84 | Delrin POM |
PWG1.0-68-2DL | Wormwheel | 1.0 | 2 | 68 | 41.5 | 10 | 16.09 | Delrin POM |
PWG1.0-70-2DL | Wormwheel | 1.0 | 2 | 70 | 42.5 | 10 | 16.96 | Delrin POM |
PWG1.0-72-2DL | Wormwheel | 1.0 | 2 | 72 | 43.5 | 10 | 17.84 | Delrin POM |
PWG1.0-75-2DL | Wormwheel | 1.0 | 2 | 75 | 45 | 10 | 19.2 | Delrin POM |
PWG1.0-78-2DL | Wormwheel | 1.0 | 2 | 78 | 46.5 | 10 | 20.6 | Delrin POM |
PWG1.0-80-2DL | Wormwheel | 1.0 | 2 | 80 | 47.5 | 10 | 21.56 | Delrin POM |
PWG1.0-82-2DL | Wormwheel | 1.0 | 2 | 82 | 48.5 | 12 | 22.54 | Delrin POM |
PWG1.0-85-2DL | Wormwheel | 1.0 | 2 | 85 | 50 | 12 | 24.05 | Delrin POM |
PWG1.0-90-2DL | Wormwheel | 1.0 | 2 | 90 | 52.5 | 12 | 26.66 | Delrin POM |
PWG1.0-95-2DL | Wormwheel | 1.0 | 2 | 95 | 55 | 12 | 29.38 | Delrin POM |
PWG1.0-100-2DL | Wormwheel | 1.0 | 2 | 100 | 57.5 | 14 | 32.22 | Delrin POM |
PWG1.0-105-2DL | Wormwheel | 1.0 | 2 | 105 | 60 | 14 | 34.3 | Delrin POM |
PWG1.0-110-2DL | Wormwheel | 1.0 | 2 | 110 | 62.5 | 14 | 36.09 | Delrin POM |
PWG1.0-115-2DL | Wormwheel | 1.0 | 2 | 115 | 65 | 14 | 37.88 | Delrin POM |
PWG1.0-120-2DL | Wormwheel | 1.0 | 2 | 120 | 67.5 | 14 | 39.68 | Delrin POM |
PWG1.0-125-2DL | Wormwheel | 1.0 | 2 | 125 | 70 | 14 | 41.48 | Delrin POM |
PWG1.0-15-3DL | Wormwheel | 1.0 | 3 | 15 | 15 | 5 | 1.12 | Delrin POM |
PWG1.0-16-3DL | Wormwheel | 1.0 | 3 | 16 | 15.5 | 5 | 1.26 | Delrin POM |
PWG1.0-17-3DL | Wormwheel | 1.0 | 3 | 17 | 16 | 5 | 1.41 | Delrin POM |
PWG1.0-18-3DL | Wormwheel | 1.0 | 3 | 18 | 16.5 | 5 | 1.56 | Delrin POM |
PWG1.0-19-3DL | Wormwheel | 1.0 | 3 | 19 | 17 | 5 | 1.72 | Delrin POM |
PWG1.0-20-3DL | Wormwheel | 1.0 | 3 | 20 | 17.5 | 5 | 1.89 | Delrin POM |
PWG1.0-21-3DL | Wormwheel | 1.0 | 3 | 21 | 18 | 5 | 2.06 | Delrin POM |
PWG1.0-22-3DL | Wormwheel | 1.0 | 3 | 22 | 18.5 | 5 | 2.24 | Delrin POM |
PWG1.0-23-3DL | Wormwheel | 1.0 | 3 | 23 | 19 | 5 | 2.42 | Delrin POM |
PWG1.0-24-3DL | Wormwheel | 1.0 | 3 | 24 | 19.5 | 6 | 2.62 | Delrin POM |
PWG1.0-25-3DL | Wormwheel | 1.0 | 3 | 25 | 20 | 6 | 2.82 | Delrin POM |
PWG1.0-26-3DL | Wormwheel | 1.0 | 3 | 26 | 20.5 | 6 | 3.02 | Delrin POM |
PWG1.0-27-3DL | Wormwheel | 1.0 | 3 | 27 | 21 | 6 | 3.24 | Delrin POM |
PWG1.0-28-3DL | Wormwheel | 1.0 | 3 | 28 | 21.5 | 6 | 3.46 | Delrin POM |
PWG1.0-29-3DL | Wormwheel | 1.0 | 3 | 29 | 22 | 8 | 3.68 | Delrin POM |
PWG1.0-30-3DL | Wormwheel | 1.0 | 3 | 30 | 22.5 | 8 | 3.91 | Delrin POM |
PWG1.0-32-3DL | Wormwheel | 1.0 | 3 | 32 | 23.5 | 8 | 4.39 | Delrin POM |
PWG1.0-35-3DL | Wormwheel | 1.0 | 3 | 35 | 25 | 8 | 5.16 | Delrin POM |
PWG1.0-38-3DL | Wormwheel | 1.0 | 3 | 38 | 26.5 | 10 | 5.99 | Delrin POM |
PWG1.0-40-3DL | Wormwheel | 1.0 | 3 | 40 | 27.5 | 10 | 6.57 | Delrin POM |
PWG1.0-42-3DL | Wormwheel | 1.0 | 3 | 42 | 28.5 | 10 | 7.17 | Delrin POM |
PWG1.0-45-3DL | Wormwheel | 1.0 | 3 | 45 | 30 | 10 | 8.12 | Delrin POM |
PWG1.0-48-3DL | Wormwheel | 1.0 | 3 | 48 | 31.5 | 10 | 9.12 | Delrin POM |
PWG1.0-50-3DL | Wormwheel | 1.0 | 3 | 50 | 32.5 | 10 | 9.81 | Delrin POM |
PWG1.0-52-3DL | Wormwheel | 1.0 | 3 | 52 | 33.5 | 10 | 10.53 | Delrin POM |
PWG1.0-55-3DL | Wormwheel | 1.0 | 3 | 55 | 35 | 10 | 11.65 | Delrin POM |
PWG1.0-58-3DL | Wormwheel | 1.0 | 3 | 58 | 36.5 | 10 | 12.82 | Delrin POM |
PWG1.0-60-3DL | Wormwheel | 1.0 | 3 | 60 | 37.5 | 10 | 13.62 | Delrin POM |
PWG1.0-62-3DL | Wormwheel | 1.0 | 3 | 62 | 38.5 | 10 | 14.45 | Delrin POM |
PWG1.0-65-3DL | Wormwheel | 1.0 | 3 | 65 | 40 | 10 | 15.73 | Delrin POM |
PWG1.0-68-3DL | Wormwheel | 1.0 | 3 | 68 | 41.5 | 10 | 17.07 | Delrin POM |
PWG1.0-70-3DL | Wormwheel | 1.0 | 3 | 70 | 42.5 | 10 | 17.98 | Delrin POM |
PWG1.0-72-3DL | Wormwheel | 1.0 | 3 | 72 | 43.5 | 10 | 18.91 | Delrin POM |
PWG1.0-75-3DL | Wormwheel | 1.0 | 3 | 75 | 45 | 10 | 20.36 | Delrin POM |
PWG1.0-78-3DL | Wormwheel | 1.0 | 3 | 78 | 46.5 | 10 | 21.85 | Delrin POM |
PWG1.0-80-3DL | Wormwheel | 1.0 | 3 | 80 | 47.5 | 10 | 22.86 | Delrin POM |
PWG1.0-82-3DL | Wormwheel | 1.0 | 3 | 82 | 48.5 | 12 | 23.9 | Delrin POM |
PWG1.0-85-3DL | Wormwheel | 1.0 | 3 | 85 | 50 | 12 | 25.5 | Delrin POM |
PWG1.0-90-3DL | Wormwheel | 1.0 | 3 | 90 | 52.5 | 12 | 28.26 | Delrin POM |
PWG1.0-95-3DL | Wormwheel | 1.0 | 3 | 95 | 55 | 12 | 30.53 | Delrin POM |
PWG1.0-100-3DL | Wormwheel | 1.0 | 3 | 100 | 57.5 | 14 | 32.3 | Delrin POM |
PWG1.0-105-3DL | Wormwheel | 1.0 | 3 | 105 | 60 | 14 | 33.99 | Delrin POM |
PWG1.0-110-3DL | Wormwheel | 1.0 | 3 | 110 | 62.5 | 14 | 35.61 | Delrin POM |
PWG1.0-115-3DL | Wormwheel | 1.0 | 3 | 115 | 65 | 14 | 37.23 | Delrin POM |
PWG1.0-120-3DL | Wormwheel | 1.0 | 3 | 120 | 67.5 | 14 | 38.85 | Delrin POM |
PWG1.0-125-3DL | Wormwheel | 1.0 | 3 | 125 | 70 | 14 | 40.47 | Delrin POM |
PWG1.0-15-4DL | Wormwheel | 1.0 | 4 | 15 | 15 | 5 | 1.22 | Delrin POM |
PWG1.0-16-4DL | Wormwheel | 1.0 | 4 | 16 | 15.5 | 5 | 1.37 | Delrin POM |
PWG1.0-17-4DL | Wormwheel | 1.0 | 4 | 17 | 16 | 5 | 1.53 | Delrin POM |
PWG1.0-18-4DL | Wormwheel | 1.0 | 4 | 18 | 16.5 | 5 | 1.7 | Delrin POM |
PWG1.0-19-4DL | Wormwheel | 1.0 | 4 | 19 | 17 | 5 | 1.87 | Delrin POM |
PWG1.0-20-4DL | Wormwheel | 1.0 | 4 | 20 | 17.5 | 5 | 2.05 | Delrin POM |
PWG1.0-21-4DL | Wormwheel | 1.0 | 4 | 21 | 18 | 5 | 2.24 | Delrin POM |
PWG1.0-22-4DL | Wormwheel | 1.0 | 4 | 22 | 18.5 | 5 | 2.44 | Delrin POM |
PWG1.0-23-4DL | Wormwheel | 1.0 | 4 | 23 | 19 | 5 | 2.64 | Delrin POM |
PWG1.0-24-4DL | Wormwheel | 1.0 | 4 | 24 | 19.5 | 6 | 2.85 | Delrin POM |
PWG1.0-25-4DL | Wormwheel | 1.0 | 4 | 25 | 20 | 6 | 3.07 | Delrin POM |
PWG1.0-26-4DL | Wormwheel | 1.0 | 4 | 26 | 20.5 | 6 | 3.29 | Delrin POM |
PWG1.0-27-4DL | Wormwheel | 1.0 | 4 | 27 | 21 | 6 | 3.52 | Delrin POM |
PWG1.0-28-4DL | Wormwheel | 1.0 | 4 | 28 | 21.5 | 6 | 3.76 | Delrin POM |
PWG1.0-29-4DL | Wormwheel | 1.0 | 4 | 29 | 22 | 8 | 4.01 | Delrin POM |
PWG1.0-30-4DL | Wormwheel | 1.0 | 4 | 30 | 22.5 | 8 | 4.26 | Delrin POM |
PWG1.0-32-4DL | Wormwheel | 1.0 | 4 | 32 | 23.5 | 8 | 4.78 | Delrin POM |
PWG1.0-35-4DL | Wormwheel | 1.0 | 4 | 35 | 25 | 8 | 5.62 | Delrin POM |
PWG1.0-38-4DL | Wormwheel | 1.0 | 4 | 38 | 26.5 | 10 | 6.52 | Delrin POM |
PWG1.0-40-4DL | Wormwheel | 1.0 | 4 | 40 | 27.5 | 10 | 7.15 | Delrin POM |
PWG1.0-42-4DL | Wormwheel | 1.0 | 4 | 42 | 28.5 | 10 | 7.81 | Delrin POM |
PWG1.0-45-4DL | Wormwheel | 1.0 | 4 | 45 | 30 | 10 | 8.84 | Delrin POM |
PWG1.0-48-4DL | Wormwheel | 1.0 | 4 | 48 | 31.5 | 10 | 9.93 | Delrin POM |
PWG1.0-50-4DL | Wormwheel | 1.0 | 4 | 50 | 32.5 | 10 | 10.68 | Delrin POM |
PWG1.0-52-4DL | Wormwheel | 1.0 | 4 | 52 | 33.5 | 10 | 11.46 | Delrin POM |
PWG1.0-55-4DL | Wormwheel | 1.0 | 4 | 55 | 35 | 10 | 12.68 | Delrin POM |
PWG1.0-58-4DL | Wormwheel | 1.0 | 4 | 58 | 36.5 | 10 | 13.95 | Delrin POM |
PWG1.0-60-4DL | Wormwheel | 1.0 | 4 | 60 | 37.5 | 10 | 14.83 | Delrin POM |
PWG1.0-62-4DL | Wormwheel | 1.0 | 4 | 62 | 38.5 | 10 | 15.73 | Delrin POM |
PWG1.0-65-4DL | Wormwheel | 1.0 | 4 | 65 | 40 | 10 | 17.13 | Delrin POM |
PWG1.0-68-4DL | Wormwheel | 1.0 | 4 | 68 | 41.5 | 10 | 18.58 | Delrin POM |
PWG1.0-70-4DL | Wormwheel | 1.0 | 4 | 70 | 42.5 | 10 | 19.58 | Delrin POM |
PWG1.0-72-4DL | Wormwheel | 1.0 | 4 | 72 | 43.5 | 10 | 20.59 | Delrin POM |
PWG1.0-75-4DL | Wormwheel | 1.0 | 4 | 75 | 45 | 10 | 22.16 | Delrin POM |
PWG1.0-78-4DL | Wormwheel | 1.0 | 4 | 78 | 46.5 | 10 | 23.5 | Delrin POM |
PWG1.0-80-4DL | Wormwheel | 1.0 | 4 | 80 | 47.5 | 10 | 24.17 | Delrin POM |
PWG1.0-82-4DL | Wormwheel | 1.0 | 4 | 82 | 48.5 | 12 | 24.83 | Delrin POM |
PWG1.0-85-4DL | Wormwheel | 1.0 | 4 | 85 | 50 | 12 | 25.84 | Delrin POM |
PWG1.0-90-4DL | Wormwheel | 1.0 | 4 | 90 | 52.5 | 12 | 27.52 | Delrin POM |
PWG1.0-95-4DL | Wormwheel | 1.0 | 4 | 95 | 55 | 12 | 29.22 | Delrin POM |
PWG1.0-100-4DL | Wormwheel | 1.0 | 4 | 100 | 57.5 | 14 | 30.92 | Delrin POM |
PWG1.0-105-4DL | Wormwheel | 1.0 | 4 | 105 | 60 | 14 | 32.62 | Delrin POM |
PWG1.0-110-4DL | Wormwheel | 1.0 | 4 | 110 | 62.5 | 14 | 34.34 | Delrin POM |
PWG1.0-115-4DL | Wormwheel | 1.0 | 4 | 115 | 65 | 14 | 36.06 | Delrin POM |
PWG1.0-120-4DL | Wormwheel | 1.0 | 4 | 120 | 67.5 | 14 | 37.79 | Delrin POM |
PWG1.0-125-4DL | Wormwheel | 1.0 | 4 | 125 | 70 | 14 | 39.53 | Delrin POM |
PWG1.5-15-1 | Wormwheel | 1.5 | 1 | 15 | 21.25 | 6 | 5.29 | Bronze CA104 |
PWG1.5-16-1 | Wormwheel | 1.5 | 1 | 16 | 22 | 6 | 5.95 | Bronze CA104 |
PWG1.5-17-1 | Wormwheel | 1.5 | 1 | 17 | 22.75 | 6 | 6.63 | Bronze CA104 |
PWG1.5-18-1 | Wormwheel | 1.5 | 1 | 18 | 23.5 | 6 | 7.35 | Bronze CA104 |
PWG1.5-19-1 | Wormwheel | 1.5 | 1 | 19 | 24.25 | 6 | 8.1 | Bronze CA104 |
PWG1.5-20-1 | Wormwheel | 1.5 | 1 | 20 | 25 | 6 | 8.89 | Bronze CA104 |
PWG1.5-21-1 | Wormwheel | 1.5 | 1 | 21 | 25.75 | 8 | 9.7 | Bronze CA104 |
PWG1.5-22-1 | Wormwheel | 1.5 | 1 | 22 | 26.5 | 8 | 10.72 | Bronze CA104 |
PWG1.5-23-1 | Wormwheel | 1.5 | 1 | 23 | 27.25 | 8 | 11.62 | Bronze CA104 |
PWG1.5-24-1 | Wormwheel | 1.5 | 1 | 24 | 28 | 8 | 12.54 | Bronze CA104 |
PWG1.5-25-1 | Wormwheel | 1.5 | 1 | 25 | 28.75 | 8 | 13.72 | Bronze CA104 |
PWG1.5-26-1 | Wormwheel | 1.5 | 1 | 26 | 29.5 | 8 | 14.72 | Bronze CA104 |
PWG1.5-27-1 | Wormwheel | 1.5 | 1 | 27 | 30.25 | 8 | 15.89 | Bronze CA104 |
PWG1.5-28-1 | Wormwheel | 1.5 | 1 | 28 | 31 | 8 | 16.96 | Bronze CA104 |
PWG1.5-29-1 | Wormwheel | 1.5 | 1 | 29 | 31.75 | 10 | 18.07 | Bronze CA104 |
PWG1.5-30-1 | Wormwheel | 1.5 | 1 | 30 | 32.5 | 10 | 19.36 | Bronze CA104 |
PWG1.5-32-1 | Wormwheel | 1.5 | 1 | 32 | 34 | 10 | 21.74 | Bronze CA104 |
PWG1.5-35-1 | Wormwheel | 1.5 | 1 | 35 | 36.25 | 10 | 25.55 | Bronze CA104 |
PWG1.5-38-1 | Wormwheel | 1.5 | 1 | 38 | 38.5 | 12 | 29.62 | Bronze CA104 |
PWG1.5-40-1 | Wormwheel | 1.5 | 1 | 40 | 40 | 12 | 32.49 | Bronze CA104 |
PWG1.5-42-1 | Wormwheel | 1.5 | 1 | 42 | 41.5 | 12 | 36.04 | Bronze CA104 |
PWG1.5-45-1 | Wormwheel | 1.5 | 1 | 45 | 43.75 | 12 | 40.8 | Bronze CA104 |
PWG1.5-48-1 | Wormwheel | 1.5 | 1 | 48 | 46 | 12 | 45.83 | Bronze CA104 |
PWG1.5-50-1 | Wormwheel | 1.5 | 1 | 50 | 47.5 | 14 | 50.09 | Bronze CA104 |
PWG1.5-52-1 | Wormwheel | 1.5 | 1 | 52 | 49 | 14 | 53.76 | Bronze CA104 |
PWG1.5-55-1 | Wormwheel | 1.5 | 1 | 55 | 51.25 | 14 | 59.47 | Bronze CA104 |
PWG1.5-58-1 | Wormwheel | 1.5 | 1 | 58 | 53.5 | 14 | 65.43 | Bronze CA104 |
PWG1.5-60-1 | Wormwheel | 1.5 | 1 | 60 | 55 | 14 | 69.55 | Bronze CA104 |
PWG1.5-62-1 | Wormwheel | 1.5 | 1 | 62 | 56.5 | 14 | 73.78 | Bronze CA104 |
PWG1.5-65-1 | Wormwheel | 1.5 | 1 | 65 | 58.75 | 14 | 83.42 | Bronze CA104 |
PWG1.5-68-1 | Wormwheel | 1.5 | 1 | 68 | 61 | 16 | 90.47 | Bronze CA104 |
PWG1.5-70-1 | Wormwheel | 1.5 | 1 | 70 | 62.5 | 16 | 95.32 | Bronze CA104 |
PWG1.5-72-1 | Wormwheel | 1.5 | 1 | 72 | 64 | 16 | 100.28 | Bronze CA104 |
PWG1.5-75-1 | Wormwheel | 1.5 | 1 | 75 | 66.25 | 16 | 107.92 | Bronze CA104 |
PWG1.5-78-1 | Wormwheel | 1.5 | 1 | 78 | 68.5 | 16 | 115.82 | Bronze CA104 |
PWG1.5-80-1 | Wormwheel | 1.5 | 1 | 80 | 70 | 16 | 121.32 | Bronze CA104 |
PWG1.5-82-1 | Wormwheel | 1.5 | 1 | 82 | 71.5 | 16 | 126.83 | Bronze CA104 |
PWG1.5-15-2 | Wormwheel | 1.5 | 2 | 15 | 21.25 | 6 | 5.18 | Bronze CA104 |
PWG1.5-16-2 | Wormwheel | 1.5 | 2 | 16 | 22 | 6 | 5.81 | Bronze CA104 |
PWG1.5-17-2 | Wormwheel | 1.5 | 2 | 17 | 22.75 | 6 | 6.48 | Bronze CA104 |
PWG1.5-18-2 | Wormwheel | 1.5 | 2 | 18 | 23.5 | 6 | 7.19 | Bronze CA104 |
PWG1.5-19-2 | Wormwheel | 1.5 | 2 | 19 | 24.25 | 6 | 8.06 | Bronze CA104 |
PWG1.5-20-2 | Wormwheel | 1.5 | 2 | 20 | 25 | 6 | 8.84 | Bronze CA104 |
PWG1.5-21-2 | Wormwheel | 1.5 | 2 | 21 | 25.75 | 8 | 9.66 | Bronze CA104 |
PWG1.5-22-2 | Wormwheel | 1.5 | 2 | 22 | 26.5 | 8 | 10.5 | Bronze CA104 |
PWG1.5-23-2 | Wormwheel | 1.5 | 2 | 23 | 27.25 | 8 | 11.57 | Bronze CA104 |
PWG1.5-24-2 | Wormwheel | 1.5 | 2 | 24 | 28 | 8 | 12.49 | Bronze CA104 |
PWG1.5-25-2 | Wormwheel | 1.5 | 2 | 25 | 28.75 | 8 | 13.45 | Bronze CA104 |
PWG1.5-26-2 | Wormwheel | 1.5 | 2 | 26 | 29.5 | 8 | 14.43 | Bronze CA104 |
PWG1.5-27-2 | Wormwheel | 1.5 | 2 | 27 | 30.25 | 8 | 15.71 | Bronze CA104 |
PWG1.5-28-2 | Wormwheel | 1.5 | 2 | 28 | 31 | 8 | 16.77 | Bronze CA104 |
PWG1.5-29-2 | Wormwheel | 1.5 | 2 | 29 | 31.75 | 10 | 17.87 | Bronze CA104 |
PWG1.5-30-2 | Wormwheel | 1.5 | 2 | 30 | 32.5 | 10 | 19.31 | Bronze CA104 |
PWG1.5-32-2 | Wormwheel | 1.5 | 2 | 32 | 34 | 10 | 21.69 | Bronze CA104 |
PWG1.5-35-2 | Wormwheel | 1.5 | 2 | 35 | 36.25 | 10 | 25.49 | Bronze CA104 |
PWG1.5-38-2 | Wormwheel | 1.5 | 2 | 38 | 38.5 | 12 | 29.56 | Bronze CA104 |
PWG1.5-40-2 | Wormwheel | 1.5 | 2 | 40 | 40 | 12 | 32.42 | Bronze CA104 |
PWG1.5-42-2 | Wormwheel | 1.5 | 2 | 42 | 41.5 | 12 | 35.39 | Bronze CA104 |
PWG1.5-45-2 | Wormwheel | 1.5 | 2 | 45 | 43.75 | 12 | 40.74 | Bronze CA104 |
PWG1.5-48-2 | Wormwheel | 1.5 | 2 | 48 | 46 | 12 | 45.76 | Bronze CA104 |
PWG1.5-50-2 | Wormwheel | 1.5 | 2 | 50 | 47.5 | 14 | 50.05 | Bronze CA104 |
PWG1.5-52-2 | Wormwheel | 1.5 | 2 | 52 | 49 | 14 | 53.72 | Bronze CA104 |
PWG1.5-55-2 | Wormwheel | 1.5 | 2 | 55 | 51.25 | 14 | 59.9 | Bronze CA104 |
PWG1.5-58-2 | Wormwheel | 1.5 | 2 | 58 | 53.5 | 14 | 65.91 | Bronze CA104 |
PWG1.5-60-2 | Wormwheel | 1.5 | 2 | 60 | 55 | 14 | 70.62 | Bronze CA104 |
PWG1.5-62-2 | Wormwheel | 1.5 | 2 | 62 | 56.5 | 14 | 74.91 | Bronze CA104 |
PWG1.5-65-2 | Wormwheel | 1.5 | 2 | 65 | 58.75 | 14 | 81.56 | Bronze CA104 |
PWG1.5-68-2 | Wormwheel | 1.5 | 2 | 68 | 61 | 16 | 88.46 | Bronze CA104 |
PWG1.5-70-2 | Wormwheel | 1.5 | 2 | 70 | 62.5 | 16 | 93.2 | Bronze CA104 |
PWG1.5-72-2 | Wormwheel | 1.5 | 2 | 72 | 64 | 16 | 98.05 | Bronze CA104 |
PWG1.5-75-2 | Wormwheel | 1.5 | 2 | 75 | 66.25 | 16 | 105.53 | Bronze CA104 |
PWG1.5-78-2 | Wormwheel | 1.5 | 2 | 78 | 68.5 | 16 | 113.24 | Bronze CA104 |
PWG1.5-80-2 | Wormwheel | 1.5 | 2 | 80 | 70 | 16 | 118.52 | Bronze CA104 |
PWG1.5-82-2 | Wormwheel | 1.5 | 2 | 82 | 71.5 | 16 | 123.91 | Bronze CA104 |
PWG1.5-15-3 | Wormwheel | 1.5 | 3 | 15 | 21.25 | 6 | 5.25 | Bronze CA104 |
PWG1.5-16-3 | Wormwheel | 1.5 | 3 | 16 | 22 | 6 | 5.9 | Bronze CA104 |
PWG1.5-17-3 | Wormwheel | 1.5 | 3 | 17 | 22.75 | 6 | 6.7 | Bronze CA104 |
PWG1.5-18-3 | Wormwheel | 1.5 | 3 | 18 | 23.5 | 6 | 7.43 | Bronze CA104 |
PWG1.5-19-3 | Wormwheel | 1.5 | 3 | 19 | 24.25 | 6 | 8.19 | Bronze CA104 |
PWG1.5-20-3 | Wormwheel | 1.5 | 3 | 20 | 25 | 6 | 9.15 | Bronze CA104 |
PWG1.5-21-3 | Wormwheel | 1.5 | 3 | 21 | 25.75 | 8 | 9.99 | Bronze CA104 |
PWG1.5-22-3 | Wormwheel | 1.5 | 3 | 22 | 26.5 | 8 | 10.87 | Bronze CA104 |
PWG1.5-23-3 | Wormwheel | 1.5 | 3 | 23 | 27.25 | 8 | 11.99 | Bronze CA104 |
PWG1.5-24-3 | Wormwheel | 1.5 | 3 | 24 | 28 | 8 | 12.94 | Bronze CA104 |
PWG1.5-25-3 | Wormwheel | 1.5 | 3 | 25 | 28.75 | 8 | 13.93 | Bronze CA104 |
PWG1.5-26-3 | Wormwheel | 1.5 | 3 | 26 | 29.5 | 8 | 15.22 | Bronze CA104 |
PWG1.5-27-3 | Wormwheel | 1.5 | 3 | 27 | 30.25 | 8 | 16.29 | Bronze CA104 |
PWG1.5-28-3 | Wormwheel | 1.5 | 3 | 28 | 31 | 8 | 17.39 | Bronze CA104 |
PWG1.5-29-3 | Wormwheel | 1.5 | 3 | 29 | 31.75 | 10 | 18.53 | Bronze CA104 |
PWG1.5-30-3 | Wormwheel | 1.5 | 3 | 30 | 32.5 | 10 | 19.69 | Bronze CA104 |
PWG1.5-32-3 | Wormwheel | 1.5 | 3 | 32 | 34 | 10 | 22.51 | Bronze CA104 |
PWG1.5-35-3 | Wormwheel | 1.5 | 3 | 35 | 36.25 | 10 | 26.45 | Bronze CA104 |
PWG1.5-38-3 | Wormwheel | 1.5 | 3 | 38 | 38.5 | 12 | 31.21 | Bronze CA104 |
PWG1.5-40-3 | Wormwheel | 1.5 | 3 | 40 | 40 | 12 | 34.23 | Bronze CA104 |
PWG1.5-42-3 | Wormwheel | 1.5 | 3 | 42 | 41.5 | 12 | 37.37 | Bronze CA104 |
PWG1.5-45-3 | Wormwheel | 1.5 | 3 | 45 | 43.75 | 12 | 43.05 | Bronze CA104 |
PWG1.5-48-3 | Wormwheel | 1.5 | 3 | 48 | 46 | 12 | 48.35 | Bronze CA104 |
PWG1.5-50-3 | Wormwheel | 1.5 | 3 | 50 | 47.5 | 14 | 52.03 | Bronze CA104 |
PWG1.5-52-3 | Wormwheel | 1.5 | 3 | 52 | 49 | 14 | 55.84 | Bronze CA104 |
PWG1.5-55-3 | Wormwheel | 1.5 | 3 | 55 | 51.25 | 14 | 61.77 | Bronze CA104 |
PWG1.5-58-3 | Wormwheel | 1.5 | 3 | 58 | 53.5 | 14 | 69.12 | Bronze CA104 |
PWG1.5-60-3 | Wormwheel | 1.5 | 3 | 60 | 55 | 14 | 73.47 | Bronze CA104 |
PWG1.5-62-3 | Wormwheel | 1.5 | 3 | 62 | 56.5 | 14 | 77.94 | Bronze CA104 |
PWG1.5-65-3 | Wormwheel | 1.5 | 3 | 65 | 58.75 | 14 | 84.86 | Bronze CA104 |
PWG1.5-68-3 | Wormwheel | 1.5 | 3 | 68 | 61 | 16 | 92.04 | Bronze CA104 |
PWG1.5-70-3 | Wormwheel | 1.5 | 3 | 70 | 62.5 | 16 | 96.97 | Bronze CA104 |
PWG1.5-72-3 | Wormwheel | 1.5 | 3 | 72 | 64 | 16 | 102.01 | Bronze CA104 |
PWG1.5-75-3 | Wormwheel | 1.5 | 3 | 75 | 66.25 | 16 | 111.62 | Bronze CA104 |
PWG1.5-78-3 | Wormwheel | 1.5 | 3 | 78 | 68.5 | 16 | 119.78 | Bronze CA104 |
PWG1.5-80-3 | Wormwheel | 1.5 | 3 | 80 | 70 | 16 | 125.37 | Bronze CA104 |
PWG1.5-82-3 | Wormwheel | 1.5 | 3 | 82 | 71.5 | 16 | 131.07 | Bronze CA104 |
PWG1.5-15-4 | Wormwheel | 1.5 | 4 | 15 | 21.25 | 6 | 5.63 | Bronze CA104 |
PWG1.5-16-4 | Wormwheel | 1.5 | 4 | 16 | 22 | 6 | 6.32 | Bronze CA104 |
PWG1.5-17-4 | Wormwheel | 1.5 | 4 | 17 | 22.75 | 6 | 7.05 | Bronze CA104 |
PWG1.5-18-4 | Wormwheel | 1.5 | 4 | 18 | 23.5 | 6 | 7.81 | Bronze CA104 |
PWG1.5-19-4 | Wormwheel | 1.5 | 4 | 19 | 24.25 | 6 | 8.69 | Bronze CA104 |
PWG1.5-20-4 | Wormwheel | 1.5 | 4 | 20 | 25 | 6 | 9.53 | Bronze CA104 |
PWG1.5-21-4 | Wormwheel | 1.5 | 4 | 21 | 25.75 | 8 | 10.41 | Bronze CA104 |
PWG1.5-22-4 | Wormwheel | 1.5 | 4 | 22 | 26.5 | 8 | 11.43 | Bronze CA104 |
PWG1.5-23-4 | Wormwheel | 1.5 | 4 | 23 | 27.25 | 8 | 12.38 | Bronze CA104 |
PWG1.5-24-4 | Wormwheel | 1.5 | 4 | 24 | 28 | 8 | 13.36 | Bronze CA104 |
PWG1.5-25-4 | Wormwheel | 1.5 | 4 | 25 | 28.75 | 8 | 14.65 | Bronze CA104 |
PWG1.5-26-4 | Wormwheel | 1.5 | 4 | 26 | 29.5 | 8 | 15.73 | Bronze CA104 |
PWG1.5-27-4 | Wormwheel | 1.5 | 4 | 27 | 30.25 | 8 | 16.83 | Bronze CA104 |
PWG1.5-28-4 | Wormwheel | 1.5 | 4 | 28 | 31 | 8 | 17.97 | Bronze CA104 |
PWG1.5-29-4 | Wormwheel | 1.5 | 4 | 29 | 31.75 | 10 | 19.5 | Bronze CA104 |
PWG1.5-30-4 | Wormwheel | 1.5 | 4 | 30 | 32.5 | 10 | 20.72 | Bronze CA104 |
PWG1.5-32-4 | Wormwheel | 1.5 | 4 | 32 | 34 | 10 | 23.7 | Bronze CA104 |
PWG1.5-35-4 | Wormwheel | 1.5 | 4 | 35 | 36.25 | 10 | 27.85 | Bronze CA104 |
PWG1.5-38-4 | Wormwheel | 1.5 | 4 | 38 | 38.5 | 12 | 32.29 | Bronze CA104 |
PWG1.5-40-4 | Wormwheel | 1.5 | 4 | 40 | 40 | 12 | 36.04 | Bronze CA104 |
PWG1.5-42-4 | Wormwheel | 1.5 | 4 | 42 | 41.5 | 12 | 39.35 | Bronze CA104 |
PWG1.5-45-4 | Wormwheel | 1.5 | 4 | 45 | 43.75 | 12 | 44.56 | Bronze CA104 |
PWG1.5-48-4 | Wormwheel | 1.5 | 4 | 48 | 46 | 12 | 50.05 | Bronze CA104 |
PWG1.5-50-4 | Wormwheel | 1.5 | 4 | 50 | 47.5 | 14 | 54.81 | Bronze CA104 |
PWG1.5-52-4 | Wormwheel | 1.5 | 4 | 52 | 49 | 14 | 58.82 | Bronze CA104 |
PWG1.5-55-4 | Wormwheel | 1.5 | 4 | 55 | 51.25 | 14 | 65.06 | Bronze CA104 |
PWG1.5-58-4 | Wormwheel | 1.5 | 4 | 58 | 53.5 | 14 | 72.83 | Bronze CA104 |
PWG1.5-60-4 | Wormwheel | 1.5 | 4 | 60 | 55 | 14 | 77.41 | Bronze CA104 |
PWG1.5-62-4 | Wormwheel | 1.5 | 4 | 62 | 56.5 | 14 | 82.11 | Bronze CA104 |
PWG1.5-65-4 | Wormwheel | 1.5 | 4 | 65 | 58.75 | 14 | 89.4 | Bronze CA104 |
PWG1.5-68-4 | Wormwheel | 1.5 | 4 | 68 | 61 | 16 | 96.97 | Bronze CA104 |
PWG1.5-70-4 | Wormwheel | 1.5 | 4 | 70 | 62.5 | 16 | 102.16 | Bronze CA104 |
PWG1.5-72-4 | Wormwheel | 1.5 | 4 | 72 | 64 | 16 | 107.48 | Bronze CA104 |
PWG1.5-75-4 | Wormwheel | 1.5 | 4 | 75 | 66.25 | 16 | 117.63 | Bronze CA104 |
PWG1.5-78-4 | Wormwheel | 1.5 | 4 | 78 | 68.5 | 16 | 126.24 | Bronze CA104 |
PWG1.5-80-4 | Wormwheel | 1.5 | 4 | 80 | 70 | 16 | 132.12 | Bronze CA104 |
PWG1.5-82-4 | Wormwheel | 1.5 | 4 | 82 | 71.5 | 16 | 138.13 | Bronze CA104 |
PWG1.5-15-1PK | Wormwheel | 1.5 | 1 | 15 | 21.25 | 6 | 3.18 | PEEK GF 30 |
PWG1.5-16-1PK | Wormwheel | 1.5 | 1 | 16 | 22 | 6 | 3.57 | PEEK GF 30 |
PWG1.5-17-1PK | Wormwheel | 1.5 | 1 | 17 | 22.75 | 6 | 3.98 | PEEK GF 30 |
PWG1.5-18-1PK | Wormwheel | 1.5 | 1 | 18 | 23.5 | 6 | 4.41 | PEEK GF 30 |
PWG1.5-19-1PK | Wormwheel | 1.5 | 1 | 19 | 24.25 | 6 | 4.86 | PEEK GF 30 |
PWG1.5-20-1PK | Wormwheel | 1.5 | 1 | 20 | 25 | 6 | 5.33 | PEEK GF 30 |
PWG1.5-21-1PK | Wormwheel | 1.5 | 1 | 21 | 25.75 | 8 | 5.82 | PEEK GF 30 |
PWG1.5-22-1PK | Wormwheel | 1.5 | 1 | 22 | 26.5 | 8 | 6.43 | PEEK GF 30 |
PWG1.5-23-1PK | Wormwheel | 1.5 | 1 | 23 | 27.25 | 8 | 6.97 | PEEK GF 30 |
PWG1.5-24-1PK | Wormwheel | 1.5 | 1 | 24 | 28 | 8 | 7.53 | PEEK GF 30 |
PWG1.5-25-1PK | Wormwheel | 1.5 | 1 | 25 | 28.75 | 8 | 8.23 | PEEK GF 30 |
PWG1.5-26-1PK | Wormwheel | 1.5 | 1 | 26 | 29.5 | 8 | 8.83 | PEEK GF 30 |
PWG1.5-27-1PK | Wormwheel | 1.5 | 1 | 27 | 30.25 | 8 | 9.53 | PEEK GF 30 |
PWG1.5-28-1PK | Wormwheel | 1.5 | 1 | 28 | 31 | 8 | 10.18 | PEEK GF 30 |
PWG1.5-29-1PK | Wormwheel | 1.5 | 1 | 29 | 31.75 | 10 | 10.84 | PEEK GF 30 |
PWG1.5-30-1PK | Wormwheel | 1.5 | 1 | 30 | 32.5 | 10 | 11.61 | PEEK GF 30 |
PWG1.5-32-1PK | Wormwheel | 1.5 | 1 | 32 | 34 | 10 | 13.05 | PEEK GF 30 |
PWG1.5-35-1PK | Wormwheel | 1.5 | 1 | 35 | 36.25 | 10 | 15.33 | PEEK GF 30 |
PWG1.5-38-1PK | Wormwheel | 1.5 | 1 | 38 | 38.5 | 12 | 17.77 | PEEK GF 30 |
PWG1.5-40-1PK | Wormwheel | 1.5 | 1 | 40 | 40 | 12 | 19.49 | PEEK GF 30 |
PWG1.5-42-1PK | Wormwheel | 1.5 | 1 | 42 | 41.5 | 12 | 21.62 | PEEK GF 30 |
PWG1.5-45-1PK | Wormwheel | 1.5 | 1 | 45 | 43.75 | 12 | 24.48 | PEEK GF 30 |
PWG1.5-48-1PK | Wormwheel | 1.5 | 1 | 48 | 46 | 12 | 27.5 | PEEK GF 30 |
PWG1.5-50-1PK | Wormwheel | 1.5 | 1 | 50 | 47.5 | 14 | 30.05 | PEEK GF 30 |
PWG1.5-52-1PK | Wormwheel | 1.5 | 1 | 52 | 49 | 14 | 32.25 | PEEK GF 30 |
PWG1.5-55-1PK | Wormwheel | 1.5 | 1 | 55 | 51.25 | 14 | 35.68 | PEEK GF 30 |
PWG1.5-58-1PK | Wormwheel | 1.5 | 1 | 58 | 53.5 | 14 | 39.26 | PEEK GF 30 |
PWG1.5-60-1PK | Wormwheel | 1.5 | 1 | 60 | 55 | 14 | 41.73 | PEEK GF 30 |
PWG1.5-62-1PK | Wormwheel | 1.5 | 1 | 62 | 56.5 | 14 | 44.27 | PEEK GF 30 |
PWG1.5-65-1PK | Wormwheel | 1.5 | 1 | 65 | 58.75 | 14 | 50.05 | PEEK GF 30 |
PWG1.5-68-1PK | Wormwheel | 1.5 | 1 | 68 | 61 | 16 | 54.28 | PEEK GF 30 |
PWG1.5-70-1PK | Wormwheel | 1.5 | 1 | 70 | 62.5 | 16 | 57.19 | PEEK GF 30 |
PWG1.5-72-1PK | Wormwheel | 1.5 | 1 | 72 | 64 | 16 | 60.17 | PEEK GF 30 |
PWG1.5-75-1PK | Wormwheel | 1.5 | 1 | 75 | 66.25 | 16 | 64.75 | PEEK GF 30 |
PWG1.5-78-1PK | Wormwheel | 1.5 | 1 | 78 | 68.5 | 16 | 69.49 | PEEK GF 30 |
PWG1.5-80-1PK | Wormwheel | 1.5 | 1 | 80 | 70 | 16 | 72.79 | PEEK GF 30 |
PWG1.5-82-1PK | Wormwheel | 1.5 | 1 | 82 | 71.5 | 16 | 76.1 | PEEK GF 30 |
PWG1.5-15-2PK | Wormwheel | 1.5 | 2 | 15 | 21.25 | 6 | 3.11 | PEEK GF 30 |
PWG1.5-16-2PK | Wormwheel | 1.5 | 2 | 16 | 22 | 6 | 3.49 | PEEK GF 30 |
PWG1.5-17-2PK | Wormwheel | 1.5 | 2 | 17 | 22.75 | 6 | 3.89 | PEEK GF 30 |
PWG1.5-18-2PK | Wormwheel | 1.5 | 2 | 18 | 23.5 | 6 | 4.31 | PEEK GF 30 |
PWG1.5-19-2PK | Wormwheel | 1.5 | 2 | 19 | 24.25 | 6 | 4.84 | PEEK GF 30 |
PWG1.5-20-2PK | Wormwheel | 1.5 | 2 | 20 | 25 | 6 | 5.31 | PEEK GF 30 |
PWG1.5-21-2PK | Wormwheel | 1.5 | 2 | 21 | 25.75 | 8 | 5.79 | PEEK GF 30 |
PWG1.5-22-2PK | Wormwheel | 1.5 | 2 | 22 | 26.5 | 8 | 6.3 | PEEK GF 30 |
PWG1.5-23-2PK | Wormwheel | 1.5 | 2 | 23 | 27.25 | 8 | 6.94 | PEEK GF 30 |
PWG1.5-24-2PK | Wormwheel | 1.5 | 2 | 24 | 28 | 8 | 7.5 | PEEK GF 30 |
PWG1.5-25-2PK | Wormwheel | 1.5 | 2 | 25 | 28.75 | 8 | 8.07 | PEEK GF 30 |
PWG1.5-26-2PK | Wormwheel | 1.5 | 2 | 26 | 29.5 | 8 | 8.66 | PEEK GF 30 |
PWG1.5-27-2PK | Wormwheel | 1.5 | 2 | 27 | 30.25 | 8 | 9.43 | PEEK GF 30 |
PWG1.5-28-2PK | Wormwheel | 1.5 | 2 | 28 | 31 | 8 | 10.06 | PEEK GF 30 |
PWG1.5-29-2PK | Wormwheel | 1.5 | 2 | 29 | 31.75 | 10 | 10.72 | PEEK GF 30 |
PWG1.5-30-2PK | Wormwheel | 1.5 | 2 | 30 | 32.5 | 10 | 11.59 | PEEK GF 30 |
PWG1.5-32-2PK | Wormwheel | 1.5 | 2 | 32 | 34 | 10 | 13.02 | PEEK GF 30 |
PWG1.5-35-2PK | Wormwheel | 1.5 | 2 | 35 | 36.25 | 10 | 15.29 | PEEK GF 30 |
PWG1.5-38-2PK | Wormwheel | 1.5 | 2 | 38 | 38.5 | 12 | 17.73 | PEEK GF 30 |
PWG1.5-40-2PK | Wormwheel | 1.5 | 2 | 40 | 40 | 12 | 19.45 | PEEK GF 30 |
PWG1.5-42-2PK | Wormwheel | 1.5 | 2 | 42 | 41.5 | 12 | 21.24 | PEEK GF 30 |
PWG1.5-45-2PK | Wormwheel | 1.5 | 2 | 45 | 43.75 | 12 | 24.44 | PEEK GF 30 |
PWG1.5-48-2PK | Wormwheel | 1.5 | 2 | 48 | 46 | 12 | 27.45 | PEEK GF 30 |
PWG1.5-50-2PK | Wormwheel | 1.5 | 2 | 50 | 47.5 | 14 | 30.03 | PEEK GF 30 |
PWG1.5-52-2PK | Wormwheel | 1.5 | 2 | 52 | 49 | 14 | 32.23 | PEEK GF 30 |
PWG1.5-55-2PK | Wormwheel | 1.5 | 2 | 55 | 51.25 | 14 | 35.94 | PEEK GF 30 |
PWG1.5-58-2PK | Wormwheel | 1.5 | 2 | 58 | 53.5 | 14 | 39.55 | PEEK GF 30 |
PWG1.5-60-2PK | Wormwheel | 1.5 | 2 | 60 | 55 | 14 | 42.37 | PEEK GF 30 |
PWG1.5-62-2PK | Wormwheel | 1.5 | 2 | 62 | 56.5 | 14 | 44.95 | PEEK GF 30 |
PWG1.5-65-2PK | Wormwheel | 1.5 | 2 | 65 | 58.75 | 14 | 48.94 | PEEK GF 30 |
PWG1.5-68-2PK | Wormwheel | 1.5 | 2 | 68 | 61 | 16 | 53.08 | PEEK GF 30 |
PWG1.5-70-2PK | Wormwheel | 1.5 | 2 | 70 | 62.5 | 16 | 55.92 | PEEK GF 30 |
PWG1.5-72-2PK | Wormwheel | 1.5 | 2 | 72 | 64 | 16 | 58.83 | PEEK GF 30 |
PWG1.5-75-2PK | Wormwheel | 1.5 | 2 | 75 | 66.25 | 16 | 63.32 | PEEK GF 30 |
PWG1.5-78-2PK | Wormwheel | 1.5 | 2 | 78 | 68.5 | 16 | 67.95 | PEEK GF 30 |
PWG1.5-80-2PK | Wormwheel | 1.5 | 2 | 80 | 70 | 16 | 71.11 | PEEK GF 30 |
PWG1.5-82-2PK | Wormwheel | 1.5 | 2 | 82 | 71.5 | 16 | 74.35 | PEEK GF 30 |
PWG1.5-15-3PK | Wormwheel | 1.5 | 3 | 15 | 21.25 | 6 | 3.15 | PEEK GF 30 |
PWG1.5-16-3PK | Wormwheel | 1.5 | 3 | 16 | 22 | 6 | 3.54 | PEEK GF 30 |
PWG1.5-17-3PK | Wormwheel | 1.5 | 3 | 17 | 22.75 | 6 | 4.02 | PEEK GF 30 |
PWG1.5-18-3PK | Wormwheel | 1.5 | 3 | 18 | 23.5 | 6 | 4.46 | PEEK GF 30 |
PWG1.5-19-3PK | Wormwheel | 1.5 | 3 | 19 | 24.25 | 6 | 4.91 | PEEK GF 30 |
PWG1.5-20-3PK | Wormwheel | 1.5 | 3 | 20 | 25 | 6 | 5.49 | PEEK GF 30 |
PWG1.5-21-3PK | Wormwheel | 1.5 | 3 | 21 | 25.75 | 8 | 6 | PEEK GF 30 |
PWG1.5-22-3PK | Wormwheel | 1.5 | 3 | 22 | 26.5 | 8 | 6.52 | PEEK GF 30 |
PWG1.5-23-3PK | Wormwheel | 1.5 | 3 | 23 | 27.25 | 8 | 7.19 | PEEK GF 30 |
PWG1.5-24-3PK | Wormwheel | 1.5 | 3 | 24 | 28 | 8 | 7.77 | PEEK GF 30 |
PWG1.5-25-3PK | Wormwheel | 1.5 | 3 | 25 | 28.75 | 8 | 8.36 | PEEK GF 30 |
PWG1.5-26-3PK | Wormwheel | 1.5 | 3 | 26 | 29.5 | 8 | 9.13 | PEEK GF 30 |
PWG1.5-27-3PK | Wormwheel | 1.5 | 3 | 27 | 30.25 | 8 | 9.77 | PEEK GF 30 |
PWG1.5-28-3PK | Wormwheel | 1.5 | 3 | 28 | 31 | 8 | 10.44 | PEEK GF 30 |
PWG1.5-29-3PK | Wormwheel | 1.5 | 3 | 29 | 31.75 | 10 | 11.12 | PEEK GF 30 |
PWG1.5-30-3PK | Wormwheel | 1.5 | 3 | 30 | 32.5 | 10 | 11.82 | PEEK GF 30 |
PWG1.5-32-3PK | Wormwheel | 1.5 | 3 | 32 | 34 | 10 | 13.51 | PEEK GF 30 |
PWG1.5-35-3PK | Wormwheel | 1.5 | 3 | 35 | 36.25 | 10 | 15.87 | PEEK GF 30 |
PWG1.5-38-3PK | Wormwheel | 1.5 | 3 | 38 | 38.5 | 12 | 18.73 | PEEK GF 30 |
PWG1.5-40-3PK | Wormwheel | 1.5 | 3 | 40 | 40 | 12 | 20.54 | PEEK GF 30 |
PWG1.5-42-3PK | Wormwheel | 1.5 | 3 | 42 | 41.5 | 12 | 22.42 | PEEK GF 30 |
PWG1.5-45-3PK | Wormwheel | 1.5 | 3 | 45 | 43.75 | 12 | 25.83 | PEEK GF 30 |
PWG1.5-48-3PK | Wormwheel | 1.5 | 3 | 48 | 46 | 12 | 29.01 | PEEK GF 30 |
PWG1.5-50-3PK | Wormwheel | 1.5 | 3 | 50 | 47.5 | 14 | 31.22 | PEEK GF 30 |
PWG1.5-52-3PK | Wormwheel | 1.5 | 3 | 52 | 49 | 14 | 33.5 | PEEK GF 30 |
PWG1.5-55-3PK | Wormwheel | 1.5 | 3 | 55 | 51.25 | 14 | 37.06 | PEEK GF 30 |
PWG1.5-58-3PK | Wormwheel | 1.5 | 3 | 58 | 53.5 | 14 | 41.47 | PEEK GF 30 |
PWG1.5-60-3PK | Wormwheel | 1.5 | 3 | 60 | 55 | 14 | 44.08 | PEEK GF 30 |
PWG1.5-62-3PK | Wormwheel | 1.5 | 3 | 62 | 56.5 | 14 | 46.76 | PEEK GF 30 |
PWG1.5-65-3PK | Wormwheel | 1.5 | 3 | 65 | 58.75 | 14 | 50.91 | PEEK GF 30 |
PWG1.5-68-3PK | Wormwheel | 1.5 | 3 | 68 | 61 | 16 | 55.22 | PEEK GF 30 |
PWG1.5-70-3PK | Wormwheel | 1.5 | 3 | 70 | 62.5 | 16 | 58.18 | PEEK GF 30 |
PWG1.5-72-3PK | Wormwheel | 1.5 | 3 | 72 | 64 | 16 | 61.21 | PEEK GF 30 |
PWG1.5-75-3PK | Wormwheel | 1.5 | 3 | 75 | 66.25 | 16 | 66.97 | PEEK GF 30 |
PWG1.5-78-3PK | Wormwheel | 1.5 | 3 | 78 | 68.5 | 16 | 71.87 | PEEK GF 30 |
PWG1.5-80-3PK | Wormwheel | 1.5 | 3 | 80 | 70 | 16 | 75.22 | PEEK GF 30 |
PWG1.5-82-3PK | Wormwheel | 1.5 | 3 | 82 | 71.5 | 16 | 78.64 | PEEK GF 30 |
PWG1.5-15-4PK | Wormwheel | 1.5 | 4 | 15 | 21.25 | 6 | 3.38 | PEEK GF 30 |
PWG1.5-16-4PK | Wormwheel | 1.5 | 4 | 16 | 22 | 6 | 3.79 | PEEK GF 30 |
PWG1.5-17-4PK | Wormwheel | 1.5 | 4 | 17 | 22.75 | 6 | 4.23 | PEEK GF 30 |
PWG1.5-18-4PK | Wormwheel | 1.5 | 4 | 18 | 23.5 | 6 | 4.69 | PEEK GF 30 |
PWG1.5-19-4PK | Wormwheel | 1.5 | 4 | 19 | 24.25 | 6 | 5.22 | PEEK GF 30 |
PWG1.5-20-4PK | Wormwheel | 1.5 | 4 | 20 | 25 | 6 | 5.72 | PEEK GF 30 |
PWG1.5-21-4PK | Wormwheel | 1.5 | 4 | 21 | 25.75 | 8 | 6.25 | PEEK GF 30 |
PWG1.5-22-4PK | Wormwheel | 1.5 | 4 | 22 | 26.5 | 8 | 6.86 | PEEK GF 30 |
PWG1.5-23-4PK | Wormwheel | 1.5 | 4 | 23 | 27.25 | 8 | 7.43 | PEEK GF 30 |
PWG1.5-24-4PK | Wormwheel | 1.5 | 4 | 24 | 28 | 8 | 8.02 | PEEK GF 30 |
PWG1.5-25-4PK | Wormwheel | 1.5 | 4 | 25 | 28.75 | 8 | 8.79 | PEEK GF 30 |
PWG1.5-26-4PK | Wormwheel | 1.5 | 4 | 26 | 29.5 | 8 | 9.44 | PEEK GF 30 |
PWG1.5-27-4PK | Wormwheel | 1.5 | 4 | 27 | 30.25 | 8 | 10.1 | PEEK GF 30 |
PWG1.5-28-4PK | Wormwheel | 1.5 | 4 | 28 | 31 | 8 | 10.78 | PEEK GF 30 |
PWG1.5-29-4PK | Wormwheel | 1.5 | 4 | 29 | 31.75 | 10 | 11.7 | PEEK GF 30 |
PWG1.5-30-4PK | Wormwheel | 1.5 | 4 | 30 | 32.5 | 10 | 12.43 | PEEK GF 30 |
PWG1.5-32-4PK | Wormwheel | 1.5 | 4 | 32 | 34 | 10 | 14.22 | PEEK GF 30 |
PWG1.5-35-4PK | Wormwheel | 1.5 | 4 | 35 | 36.25 | 10 | 16.71 | PEEK GF 30 |
PWG1.5-38-4PK | Wormwheel | 1.5 | 4 | 38 | 38.5 | 12 | 19.37 | PEEK GF 30 |
PWG1.5-40-4PK | Wormwheel | 1.5 | 4 | 40 | 40 | 12 | 21.63 | PEEK GF 30 |
PWG1.5-42-4PK | Wormwheel | 1.5 | 4 | 42 | 41.5 | 12 | 23.61 | PEEK GF 30 |
PWG1.5-45-4PK | Wormwheel | 1.5 | 4 | 45 | 43.75 | 12 | 26.73 | PEEK GF 30 |
PWG1.5-48-4PK | Wormwheel | 1.5 | 4 | 48 | 46 | 12 | 30.03 | PEEK GF 30 |
PWG1.5-50-4PK | Wormwheel | 1.5 | 4 | 50 | 47.5 | 14 | 32.88 | PEEK GF 30 |
PWG1.5-52-4PK | Wormwheel | 1.5 | 4 | 52 | 49 | 14 | 35.29 | PEEK GF 30 |
PWG1.5-55-4PK | Wormwheel | 1.5 | 4 | 55 | 51.25 | 14 | 39.04 | PEEK GF 30 |
PWG1.5-58-4PK | Wormwheel | 1.5 | 4 | 58 | 53.5 | 14 | 43.7 | PEEK GF 30 |
PWG1.5-60-4PK | Wormwheel | 1.5 | 4 | 60 | 55 | 14 | 46.44 | PEEK GF 30 |
PWG1.5-62-4PK | Wormwheel | 1.5 | 4 | 62 | 56.5 | 14 | 49.27 | PEEK GF 30 |
PWG1.5-65-4PK | Wormwheel | 1.5 | 4 | 65 | 58.75 | 14 | 53.64 | PEEK GF 30 |
PWG1.5-68-4PK | Wormwheel | 1.5 | 4 | 68 | 61 | 16 | 58.18 | PEEK GF 30 |
PWG1.5-70-4PK | Wormwheel | 1.5 | 4 | 70 | 62.5 | 16 | 61.3 | PEEK GF 30 |
PWG1.5-72-4PK | Wormwheel | 1.5 | 4 | 72 | 64 | 16 | 64.49 | PEEK GF 30 |
PWG1.5-75-4PK | Wormwheel | 1.5 | 4 | 75 | 66.25 | 16 | 70.58 | PEEK GF 30 |
PWG1.5-78-4PK | Wormwheel | 1.5 | 4 | 78 | 68.5 | 16 | 75.74 | PEEK GF 30 |
PWG1.5-80-4PK | Wormwheel | 1.5 | 4 | 80 | 70 | 16 | 79.27 | PEEK GF 30 |
PWG1.5-82-4PK | Wormwheel | 1.5 | 4 | 82 | 71.5 | 16 | 82.88 | PEEK GF 30 |
PWG1.5-15-1DL | Wormwheel | 1.5 | 1 | 15 | 21.25 | 6 | 2.65 | Delrin POM |
PWG1.5-16-1DL | Wormwheel | 1.5 | 1 | 16 | 22 | 6 | 2.97 | Delrin POM |
PWG1.5-17-1DL | Wormwheel | 1.5 | 1 | 17 | 22.75 | 6 | 3.32 | Delrin POM |
PWG1.5-18-1DL | Wormwheel | 1.5 | 1 | 18 | 23.5 | 6 | 3.68 | Delrin POM |
PWG1.5-19-1DL | Wormwheel | 1.5 | 1 | 19 | 24.25 | 6 | 4.05 | Delrin POM |
PWG1.5-20-1DL | Wormwheel | 1.5 | 1 | 20 | 25 | 6 | 4.44 | Delrin POM |
PWG1.5-21-1DL | Wormwheel | 1.5 | 1 | 21 | 25.75 | 8 | 4.85 | Delrin POM |
PWG1.5-22-1DL | Wormwheel | 1.5 | 1 | 22 | 26.5 | 8 | 5.36 | Delrin POM |
PWG1.5-23-1DL | Wormwheel | 1.5 | 1 | 23 | 27.25 | 8 | 5.81 | Delrin POM |
PWG1.5-24-1DL | Wormwheel | 1.5 | 1 | 24 | 28 | 8 | 6.27 | Delrin POM |
PWG1.5-25-1DL | Wormwheel | 1.5 | 1 | 25 | 28.75 | 8 | 6.86 | Delrin POM |
PWG1.5-26-1DL | Wormwheel | 1.5 | 1 | 26 | 29.5 | 8 | 7.36 | Delrin POM |
PWG1.5-27-1DL | Wormwheel | 1.5 | 1 | 27 | 30.25 | 8 | 7.94 | Delrin POM |
PWG1.5-28-1DL | Wormwheel | 1.5 | 1 | 28 | 31 | 8 | 8.48 | Delrin POM |
PWG1.5-29-1DL | Wormwheel | 1.5 | 1 | 29 | 31.75 | 10 | 9.03 | Delrin POM |
PWG1.5-30-1DL | Wormwheel | 1.5 | 1 | 30 | 32.5 | 10 | 9.68 | Delrin POM |
PWG1.5-32-1DL | Wormwheel | 1.5 | 1 | 32 | 34 | 10 | 10.87 | Delrin POM |
PWG1.5-35-1DL | Wormwheel | 1.5 | 1 | 35 | 36.25 | 10 | 12.77 | Delrin POM |
PWG1.5-38-1DL | Wormwheel | 1.5 | 1 | 38 | 38.5 | 12 | 14.81 | Delrin POM |
PWG1.5-40-1DL | Wormwheel | 1.5 | 1 | 40 | 40 | 12 | 16.25 | Delrin POM |
PWG1.5-42-1DL | Wormwheel | 1.5 | 1 | 42 | 41.5 | 12 | 18.02 | Delrin POM |
PWG1.5-45-1DL | Wormwheel | 1.5 | 1 | 45 | 43.75 | 12 | 20.4 | Delrin POM |
PWG1.5-48-1DL | Wormwheel | 1.5 | 1 | 48 | 46 | 12 | 22.91 | Delrin POM |
PWG1.5-50-1DL | Wormwheel | 1.5 | 1 | 50 | 47.5 | 14 | 25.05 | Delrin POM |
PWG1.5-52-1DL | Wormwheel | 1.5 | 1 | 52 | 49 | 14 | 26.88 | Delrin POM |
PWG1.5-55-1DL | Wormwheel | 1.5 | 1 | 55 | 51.25 | 14 | 29.73 | Delrin POM |
PWG1.5-58-1DL | Wormwheel | 1.5 | 1 | 58 | 53.5 | 14 | 32.72 | Delrin POM |
PWG1.5-60-1DL | Wormwheel | 1.5 | 1 | 60 | 55 | 14 | 34.77 | Delrin POM |
PWG1.5-62-1DL | Wormwheel | 1.5 | 1 | 62 | 56.5 | 14 | 36.89 | Delrin POM |
PWG1.5-65-1DL | Wormwheel | 1.5 | 1 | 65 | 58.75 | 14 | 41.71 | Delrin POM |
PWG1.5-68-1DL | Wormwheel | 1.5 | 1 | 68 | 61 | 16 | 45.24 | Delrin POM |
PWG1.5-70-1DL | Wormwheel | 1.5 | 1 | 70 | 62.5 | 16 | 47.66 | Delrin POM |
PWG1.5-72-1DL | Wormwheel | 1.5 | 1 | 72 | 64 | 16 | 50.14 | Delrin POM |
PWG1.5-75-1DL | Wormwheel | 1.5 | 1 | 75 | 66.25 | 16 | 53.96 | Delrin POM |
PWG1.5-78-1DL | Wormwheel | 1.5 | 1 | 78 | 68.5 | 16 | 57.91 | Delrin POM |
PWG1.5-80-1DL | Wormwheel | 1.5 | 1 | 80 | 70 | 16 | 60.66 | Delrin POM |
PWG1.5-82-1DL | Wormwheel | 1.5 | 1 | 82 | 71.5 | 16 | 63.42 | Delrin POM |
PWG1.5-15-2DL | Wormwheel | 1.5 | 2 | 15 | 21.25 | 6 | 2.59 | Delrin POM |
PWG1.5-16-2DL | Wormwheel | 1.5 | 2 | 16 | 22 | 6 | 2.91 | Delrin POM |
PWG1.5-17-2DL | Wormwheel | 1.5 | 2 | 17 | 22.75 | 6 | 3.24 | Delrin POM |
PWG1.5-18-2DL | Wormwheel | 1.5 | 2 | 18 | 23.5 | 6 | 3.59 | Delrin POM |
PWG1.5-19-2DL | Wormwheel | 1.5 | 2 | 19 | 24.25 | 6 | 4.03 | Delrin POM |
PWG1.5-20-2DL | Wormwheel | 1.5 | 2 | 20 | 25 | 6 | 4.42 | Delrin POM |
PWG1.5-21-2DL | Wormwheel | 1.5 | 2 | 21 | 25.75 | 8 | 4.83 | Delrin POM |
PWG1.5-22-2DL | Wormwheel | 1.5 | 2 | 22 | 26.5 | 8 | 5.25 | Delrin POM |
PWG1.5-23-2DL | Wormwheel | 1.5 | 2 | 23 | 27.25 | 8 | 5.79 | Delrin POM |
PWG1.5-24-2DL | Wormwheel | 1.5 | 2 | 24 | 28 | 8 | 6.25 | Delrin POM |
PWG1.5-25-2DL | Wormwheel | 1.5 | 2 | 25 | 28.75 | 8 | 6.72 | Delrin POM |
PWG1.5-26-2DL | Wormwheel | 1.5 | 2 | 26 | 29.5 | 8 | 7.22 | Delrin POM |
PWG1.5-27-2DL | Wormwheel | 1.5 | 2 | 27 | 30.25 | 8 | 7.86 | Delrin POM |
PWG1.5-28-2DL | Wormwheel | 1.5 | 2 | 28 | 31 | 8 | 8.39 | Delrin POM |
PWG1.5-29-2DL | Wormwheel | 1.5 | 2 | 29 | 31.75 | 10 | 8.93 | Delrin POM |
PWG1.5-30-2DL | Wormwheel | 1.5 | 2 | 30 | 32.5 | 10 | 9.66 | Delrin POM |
PWG1.5-32-2DL | Wormwheel | 1.5 | 2 | 32 | 34 | 10 | 10.85 | Delrin POM |
PWG1.5-35-2DL | Wormwheel | 1.5 | 2 | 35 | 36.25 | 10 | 12.75 | Delrin POM |
PWG1.5-38-2DL | Wormwheel | 1.5 | 2 | 38 | 38.5 | 12 | 14.78 | Delrin POM |
PWG1.5-40-2DL | Wormwheel | 1.5 | 2 | 40 | 40 | 12 | 16.21 | Delrin POM |
PWG1.5-42-2DL | Wormwheel | 1.5 | 2 | 42 | 41.5 | 12 | 17.7 | Delrin POM |
PWG1.5-45-2DL | Wormwheel | 1.5 | 2 | 45 | 43.75 | 12 | 20.37 | Delrin POM |
PWG1.5-48-2DL | Wormwheel | 1.5 | 2 | 48 | 46 | 12 | 22.88 | Delrin POM |
PWG1.5-50-2DL | Wormwheel | 1.5 | 2 | 50 | 47.5 | 14 | 25.03 | Delrin POM |
PWG1.5-52-2DL | Wormwheel | 1.5 | 2 | 52 | 49 | 14 | 26.86 | Delrin POM |
PWG1.5-55-2DL | Wormwheel | 1.5 | 2 | 55 | 51.25 | 14 | 29.95 | Delrin POM |
PWG1.5-58-2DL | Wormwheel | 1.5 | 2 | 58 | 53.5 | 14 | 32.96 | Delrin POM |
PWG1.5-60-2DL | Wormwheel | 1.5 | 2 | 60 | 55 | 14 | 35.31 | Delrin POM |
PWG1.5-62-2DL | Wormwheel | 1.5 | 2 | 62 | 56.5 | 14 | 37.46 | Delrin POM |
PWG1.5-65-2DL | Wormwheel | 1.5 | 2 | 65 | 58.75 | 14 | 40.78 | Delrin POM |
PWG1.5-68-2DL | Wormwheel | 1.5 | 2 | 68 | 61 | 16 | 44.23 | Delrin POM |
PWG1.5-70-2DL | Wormwheel | 1.5 | 2 | 70 | 62.5 | 16 | 46.6 | Delrin POM |
PWG1.5-72-2DL | Wormwheel | 1.5 | 2 | 72 | 64 | 16 | 49.02 | Delrin POM |
PWG1.5-75-2DL | Wormwheel | 1.5 | 2 | 75 | 66.25 | 16 | 52.76 | Delrin POM |
PWG1.5-78-2DL | Wormwheel | 1.5 | 2 | 78 | 68.5 | 16 | 56.62 | Delrin POM |
PWG1.5-80-2DL | Wormwheel | 1.5 | 2 | 80 | 70 | 16 | 59.26 | Delrin POM |
PWG1.5-82-2DL | Wormwheel | 1.5 | 2 | 82 | 71.5 | 16 | 61.96 | Delrin POM |
PWG1.5-15-3DL | Wormwheel | 1.5 | 3 | 15 | 21.25 | 6 | 2.63 | Delrin POM |
PWG1.5-16-3DL | Wormwheel | 1.5 | 3 | 16 | 22 | 6 | 2.95 | Delrin POM |
PWG1.5-17-3DL | Wormwheel | 1.5 | 3 | 17 | 22.75 | 6 | 3.35 | Delrin POM |
PWG1.5-18-3DL | Wormwheel | 1.5 | 3 | 18 | 23.5 | 6 | 3.72 | Delrin POM |
PWG1.5-19-3DL | Wormwheel | 1.5 | 3 | 19 | 24.25 | 6 | 4.1 | Delrin POM |
PWG1.5-20-3DL | Wormwheel | 1.5 | 3 | 20 | 25 | 6 | 4.58 | Delrin POM |
PWG1.5-21-3DL | Wormwheel | 1.5 | 3 | 21 | 25.75 | 8 | 5 | Delrin POM |
PWG1.5-22-3DL | Wormwheel | 1.5 | 3 | 22 | 26.5 | 8 | 5.43 | Delrin POM |
PWG1.5-23-3DL | Wormwheel | 1.5 | 3 | 23 | 27.25 | 8 | 5.99 | Delrin POM |
PWG1.5-24-3DL | Wormwheel | 1.5 | 3 | 24 | 28 | 8 | 6.47 | Delrin POM |
PWG1.5-25-3DL | Wormwheel | 1.5 | 3 | 25 | 28.75 | 8 | 6.97 | Delrin POM |
PWG1.5-26-3DL | Wormwheel | 1.5 | 3 | 26 | 29.5 | 8 | 7.61 | Delrin POM |
PWG1.5-27-3DL | Wormwheel | 1.5 | 3 | 27 | 30.25 | 8 | 8.15 | Delrin POM |
PWG1.5-28-3DL | Wormwheel | 1.5 | 3 | 28 | 31 | 8 | 8.7 | Delrin POM |
PWG1.5-29-3DL | Wormwheel | 1.5 | 3 | 29 | 31.75 | 10 | 9.26 | Delrin POM |
PWG1.5-30-3DL | Wormwheel | 1.5 | 3 | 30 | 32.5 | 10 | 9.85 | Delrin POM |
PWG1.5-32-3DL | Wormwheel | 1.5 | 3 | 32 | 34 | 10 | 11.26 | Delrin POM |
PWG1.5-35-3DL | Wormwheel | 1.5 | 3 | 35 | 36.25 | 10 | 13.23 | Delrin POM |
PWG1.5-38-3DL | Wormwheel | 1.5 | 3 | 38 | 38.5 | 12 | 15.61 | Delrin POM |
PWG1.5-40-3DL | Wormwheel | 1.5 | 3 | 40 | 40 | 12 | 17.12 | Delrin POM |
PWG1.5-42-3DL | Wormwheel | 1.5 | 3 | 42 | 41.5 | 12 | 18.69 | Delrin POM |
PWG1.5-45-3DL | Wormwheel | 1.5 | 3 | 45 | 43.75 | 12 | 21.52 | Delrin POM |
PWG1.5-48-3DL | Wormwheel | 1.5 | 3 | 48 | 46 | 12 | 24.17 | Delrin POM |
PWG1.5-50-3DL | Wormwheel | 1.5 | 3 | 50 | 47.5 | 14 | 26.02 | Delrin POM |
PWG1.5-52-3DL | Wormwheel | 1.5 | 3 | 52 | 49 | 14 | 27.92 | Delrin POM |
PWG1.5-55-3DL | Wormwheel | 1.5 | 3 | 55 | 51.25 | 14 | 30.89 | Delrin POM |
PWG1.5-58-3DL | Wormwheel | 1.5 | 3 | 58 | 53.5 | 14 | 34.56 | Delrin POM |
PWG1.5-60-3DL | Wormwheel | 1.5 | 3 | 60 | 55 | 14 | 36.74 | Delrin POM |
PWG1.5-62-3DL | Wormwheel | 1.5 | 3 | 62 | 56.5 | 14 | 38.97 | Delrin POM |
PWG1.5-65-3DL | Wormwheel | 1.5 | 3 | 65 | 58.75 | 14 | 42.43 | Delrin POM |
PWG1.5-68-3DL | Wormwheel | 1.5 | 3 | 68 | 61 | 16 | 46.02 | Delrin POM |
PWG1.5-70-3DL | Wormwheel | 1.5 | 3 | 70 | 62.5 | 16 | 48.48 | Delrin POM |
PWG1.5-72-3DL | Wormwheel | 1.5 | 3 | 72 | 64 | 16 | 51.01 | Delrin POM |
PWG1.5-75-3DL | Wormwheel | 1.5 | 3 | 75 | 66.25 | 16 | 55.81 | Delrin POM |
PWG1.5-78-3DL | Wormwheel | 1.5 | 3 | 78 | 68.5 | 16 |
