PWG1.5-68-1PK

Ondrives Precision Gears and Gearboxes Part number PWG1.5-68-1PK

PWG1.5-68-1PK

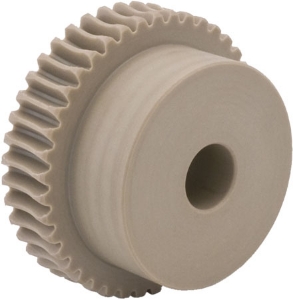

1.5 Module PEEK GF30® (Light Brown) 1 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG1.5-68-1PK Ondrives Precision Gears and Gearboxes Part number PWG1.5-68-1PK

Product specifications

Material PEEK GF 30
Quality DIN 3974 DIN3967 8e25
Gear Tooth Type Wormwheel
No. of Starts worm [z1] 1
Lead Direction Right Hand
Worm Profile Zi
Axial Module mx 1.5
Pressure Angle 20°
No. of Teeth [z] 68
Centre Distance [a] 61
Torque T₂ [Nm] n1 100 r/min 54.28
Ref. Diameter [d2] 102
Wheel Throat [da2] 105
Tip Diameter [de2] 106.5
Bore Diameter [di] H7 16
Hub Diameter [Dhub] 65
Backlash (mm) jt.i (min) 0.045
Backlash (mm) jt.e (max) 0.139

Product specifications

Material PEEK GF 30
Quality DIN 3974 DIN3967 8e25
Gear Tooth Type Wormwheel
No. of Starts worm [z1] 1
Lead Direction Right Hand
Worm Profile Zi
Axial Module mx 1.5
Pressure Angle 20°
No. of Teeth [z] 68
Centre Distance [a] 61
Torque T₂ [Nm] n1 100 r/min 54.28
Ref. Diameter [d2] 102
Wheel Throat [da2] 105
Tip Diameter [de2] 106.5
Bore Diameter [di] H7 16
Hub Diameter [Dhub] 65
Backlash (mm) jt.i (min) 0.045
Backlash (mm) jt.e (max) 0.139
