PWG1.0-22-2PK

Ondrives Precision Gears and Gearboxes Part number PWG1.0-22-2PK

PWG1.0-22-2PK

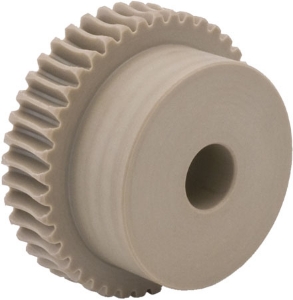

1.0 Module PEEK GF30® (Light Brown) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG1.0-22-2PK Ondrives Precision Gears and Gearboxes Part number PWG1.0-22-2PK

Product specifications

Material PEEK GF 30
Quality DIN 3974 DIN3967 8e25
Gear Tooth Type Wormwheel
No. of Starts worm [z1] 2
Lead Direction Right Hand
Worm Profile Zi
Axial Module mx 1.0
Pressure Angle 20°
No. of Teeth [z] 22
Centre Distance [a] 18.5
Torque T₂ [Nm] n1 100 r/min 2.53
Ref. Diameter [d2] 22
Wheel Throat [da2] 24
Tip Diameter [de2] 25
Bore Diameter [di] H7 5
Hub Diameter [Dhub] 12
Backlash (mm) jt.i (min) 0.041
Backlash (mm) jt.e (max) 0.115

Product specifications

Material PEEK GF 30
Quality DIN 3974 DIN3967 8e25
Gear Tooth Type Wormwheel
No. of Starts worm [z1] 2
Lead Direction Right Hand
Worm Profile Zi
Axial Module mx 1.0
Pressure Angle 20°
No. of Teeth [z] 22
Centre Distance [a] 18.5
Torque T₂ [Nm] n1 100 r/min 2.53
Ref. Diameter [d2] 22
Wheel Throat [da2] 24
Tip Diameter [de2] 25
Bore Diameter [di] H7 5
Hub Diameter [Dhub] 12
Backlash (mm) jt.i (min) 0.041
Backlash (mm) jt.e (max) 0.115
