PWG1.0-100-2DL

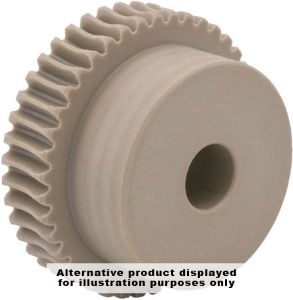

Ondrives Precision Gears and Gearboxes Part number PWG1.0-100-2DL

PWG1.0-100-2DL

1.0 Module Delrin POM (White) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG1.0-100-2DL Ondrives Precision Gears and Gearboxes Part number PWG1.0-100-2DL

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
No. of Teeth [z]100
Centre Distance [a]57.5
Torque T₂ [Nm] n1 100 r/min32.22
Ref. Diameter [d2]100
Wheel Throat [da2]102
Tip Diameter [de2]103
Bore Diameter [di] H714
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.140

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
No. of Teeth [z]100
Centre Distance [a]57.5
Torque T₂ [Nm] n1 100 r/min32.22
Ref. Diameter [d2]100
Wheel Throat [da2]102
Tip Diameter [de2]103
Bore Diameter [di] H714
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.140
