PFN40-60A

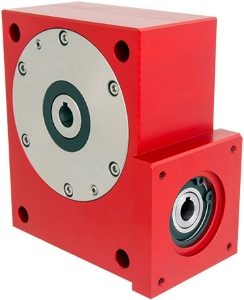

Ondrives Precision Gears and Gearboxes Part number PFN40-60A

PFN40-60A

IP66 Precision worm gear reducer, 1 piece casing flange, ≤5' backlash, flanged input, 10mm output bore & 8mm input bore, 7.20Nm-18.00Nm output torque, 37.5mm centres, ratio 60:1
Ondrives Precision Gears and Gearboxes Part number PFN40-60A Ondrives Precision Gears and Gearboxes Part number PFN40-60A Ondrives Precision Gears and Gearboxes Part number PFN40-60A Ondrives Precision Gears and Gearboxes Part number PFN40-60A

Product specifications

Gear Ratio [i=]60:1
Output Backlash j≤0.08°
Output Torque T₂n [Nm]10.00
Reflected Inertia at Input (kg•m²)2.95 x 10-6
Efficiency n1 1000 r/min [ηz]65%
Working Temp Range0°C ~ +70°C
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]60:1
Output Backlash j≤0.08°
Output Torque T₂n [Nm]10.00
Reflected Inertia at Input (kg•m²)2.95 x 10-6
Efficiency n1 1000 r/min [ηz]65%
Working Temp Range0°C ~ +70°C
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
