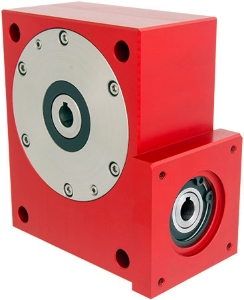

PFN40-20A

IP66 Precision worm gear reducer, 1 piece casing flange, ≤5' backlash, flanged input, 10mm output bore & 8mm input bore, 5.60Nm-17.70Nm output torque, 37.5mm centres, ratio 20:1

Product specifications

Gear Ratio [i=]	20:1
Output Backlash j	≤0.08°
Output Torque T₂n [Nm]	8.20
Reflected Inertia at Input (kg•m²)	3.14 x 10-6
Efficiency n1 1000 r/min [ηz]	83%
Working Temp Range	0°C ~ +70°C
Max. Output Radial Load Fr2 N	300
Max. Output Axial Load Fa2 N	200
Lubrication Grease	Shell Gadus S5 V42P 2.5
