PFN40-120A

Ondrives Precision Gears and Gearboxes Part number PFN40-120A

PFN40-120A

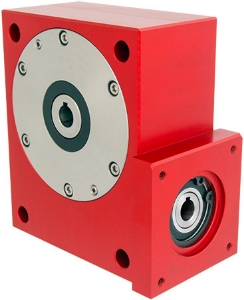

IP66 Precision worm gear reducer, 1 piece casing flange, ≤5' backlash, flanged input, 10mm output bore & 8mm input bore, 6.50Nm-12.30Nm output torque, 37.5mm centres, ratio 120:1
Ondrives Precision Gears and Gearboxes Part number PFN40-120A Ondrives Precision Gears and Gearboxes Part number PFN40-120A Ondrives Precision Gears and Gearboxes Part number PFN40-120A Ondrives Precision Gears and Gearboxes Part number PFN40-120A

Product specifications

Gear Ratio [i=]120:1
Output Backlash j≤0.08°
Output Torque T₂n [Nm]8.70
Reflected Inertia at Input (kg•m²)2.94 x 10-6
Efficiency n1 1000 r/min [ηz]41%
Working Temp Range0°C ~ +70°C
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]120:1
Output Backlash j≤0.08°
Output Torque T₂n [Nm]8.70
Reflected Inertia at Input (kg•m²)2.94 x 10-6
Efficiency n1 1000 r/min [ηz]41%
Working Temp Range0°C ~ +70°C
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
