Spiral Bevel Gears
Precision Ground Zerol Bevel Gears
PZBG1.0-30S
PZBG1.0-30S

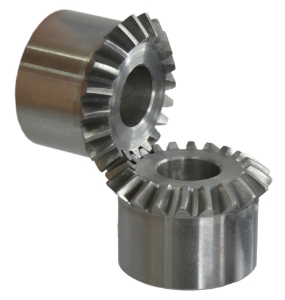

1.0 Module 303 Stainless Steel Precision Zerol Ground Bevel Gears 20° PA - Quality Grade 7f24 DIN 3985
Product specifications
Material
AISI 303 (EN 1.4305) Stainless Steel
Gear Ratio [i=]
1:1
Normal Module mn
1
No. of Teeth [z]
30
Pitch Diameter [d]
30
Outside Diameter [da]
31.41
Mounting Distance [Y]
30
Face Width [b]
5.5
Bore Diameter [di] H7
8
Dimension [BL]
18
Dimension [L]
19.4
Boss Diameter [BD]
20
Boss Length [DL]
12
Pitch Apex to Crown [X]
14.29
Mass [kg]
0.059
Inertia [I] kgm²
4.89 x 10-6
Specifications
Technical
CAD
Overview
Product specifications
Material
AISI 303 (EN 1.4305) Stainless Steel
Gear Ratio [i=]
1:1
Normal Module mn
1
No. of Teeth [z]
30
Pitch Diameter [d]
30
Outside Diameter [da]
31.41
Mounting Distance [Y]
30
Face Width [b]
5.5
Bore Diameter [di] H7
8
Dimension [BL]
18
Dimension [L]
19.4
Boss Diameter [BD]
20
Boss Length [DL]
12
Pitch Apex to Crown [X]
14.29
Mass [kg]
0.059
Inertia [I] kgm²
4.89 x 10-6
