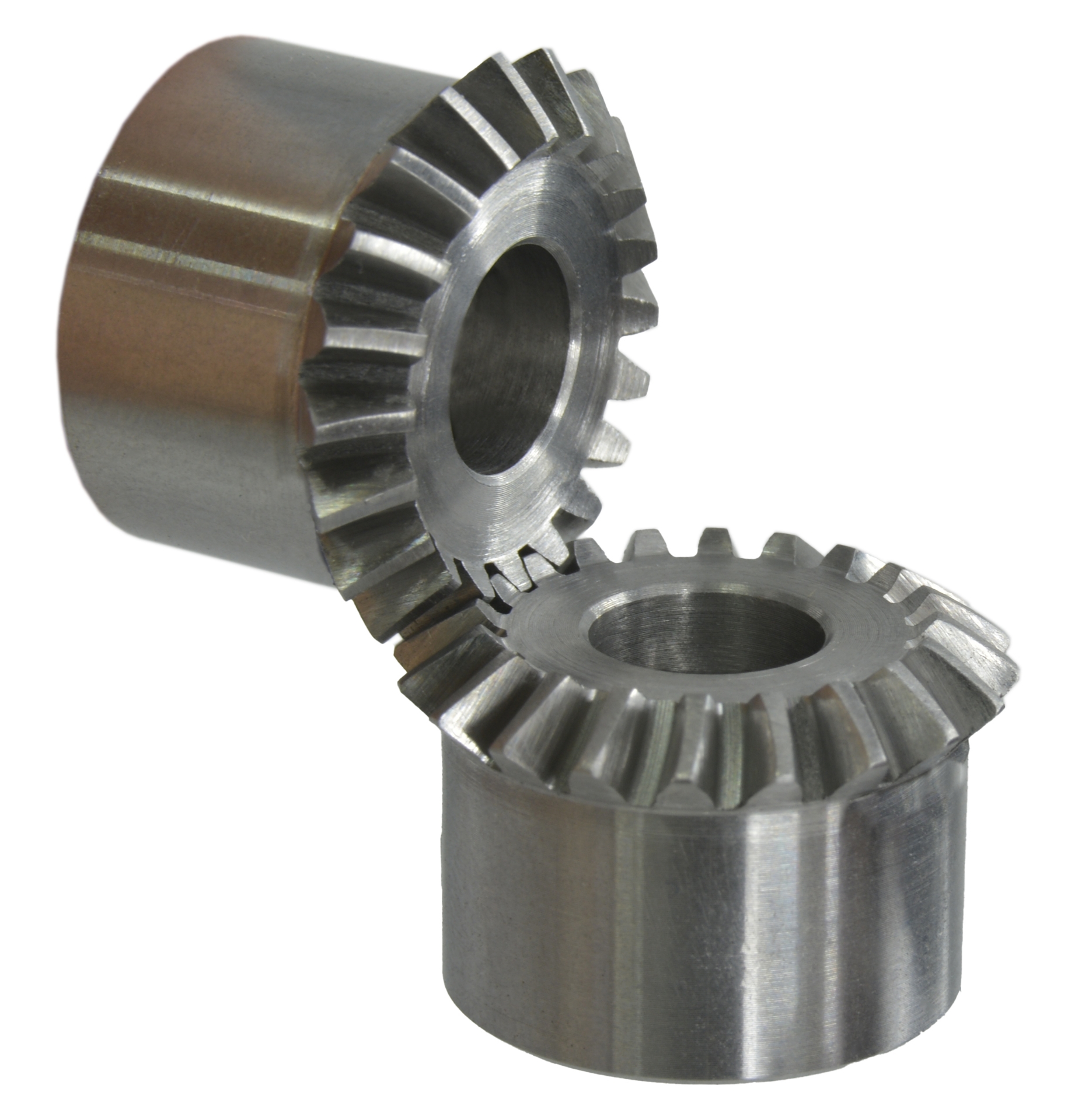

Precision Ground Zerol Bevel Gears
Precision Ground Zerol Bevel Gears
Ground from solid at Ondrives in the UK, Zerol low spiral angle spiral bevels.
| Sku (Part No.) | Normal Module mn | No. of Teeth [z] | Bore Diameter [di] H7 | Torque T₂ [Nm] n1 100 r/min | Material |
|---|---|---|---|---|---|
| PZBG0.8-30 | 0.8 | 30 | 8 | 3.12 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG0.8-30S | 0.8 | 30 | 8 | 1.88 | AISI 303 (EN 1.4305) Stainless Steel |
| PZBG1.0-30 | 1 | 30 | 8 | 5.9 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG1.0-30S | 1 | 30 | 8 | 3.56 | AISI 303 (EN 1.4305) Stainless Steel |
| PZBG1.5-30 | 1.5 | 30 | 10 | 17.88 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG1.5-30S | 1.5 | 30 | 10 | 10.72 | AISI 303 (EN 1.4305) Stainless Steel |
| PZBG2.0-30 | 2 | 30 | 12 | 40.28 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG2.0-30S | 2 | 30 | 12 | 24.17 | AISI 303 (EN 1.4305) Stainless Steel |
