OKBE3/42

Ondrives Precision Gears and Gearboxes Part number OKBE3/42

OKBE3/42

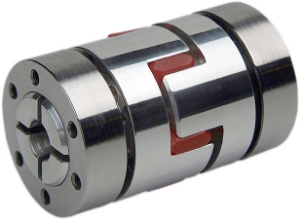

Servo Insert Coupling with Aluminium Outer Conical Hub, Shore Hardness 98 Sh-A
Ondrives Precision Gears and Gearboxes Part number OKBE3/42 Ondrives Precision Gears and Gearboxes Part number OKBE3/42

Product specifications

Diameter [A]95
Dimension [L]126
Min. Bore Diameter [D1] & [D2] H725
Max. Bore Diameter [D1] & [D2] H750
Dimension [E]50
Dimension [F]26
Thread [M] DIN 912M8
Tightening Torque TA Nm35
Max. Speed [rpm]8000
Mass [kg]2.3
Moment of Inertia J Kg mm²3032
Max. Torque (Nm)450

Product specifications

Diameter [A]95
Dimension [L]126
Min. Bore Diameter [D1] & [D2] H725
Max. Bore Diameter [D1] & [D2] H750
Dimension [E]50
Dimension [F]26
Thread [M] DIN 912M8
Tightening Torque TA Nm35
Max. Speed [rpm]8000
Mass [kg]2.3
Moment of Inertia J Kg mm²3032
Max. Torque (Nm)450
