OKBE3/24

Ondrives Precision Gears and Gearboxes Part number OKBE3/24

OKBE3/24

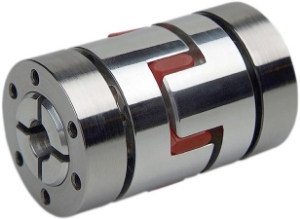

Servo Insert Coupling with Aluminium Outer Conical Hub, Shore Hardness 98 Sh-A
Ondrives Precision Gears and Gearboxes Part number OKBE3/24 Ondrives Precision Gears and Gearboxes Part number OKBE3/24

Product specifications

Diameter [A]55
Dimension [L]78
Min. Bore Diameter [D1] & [D2] H711
Max. Bore Diameter [D1] & [D2] H728
Dimension [E]30
Dimension [F]18
Thread [M] DIN 912M5
Tightening Torque TA Nm6
Max. Speed [rpm]14000
Mass [kg]0.28
Moment of Inertia J Kg mm²116
Max. Torque (Nm)60

Product specifications

Diameter [A]55
Dimension [L]78
Min. Bore Diameter [D1] & [D2] H711
Max. Bore Diameter [D1] & [D2] H728
Dimension [E]30
Dimension [F]18
Thread [M] DIN 912M5
Tightening Torque TA Nm6
Max. Speed [rpm]14000
Mass [kg]0.28
Moment of Inertia J Kg mm²116
Max. Torque (Nm)60
