OKBE2/48

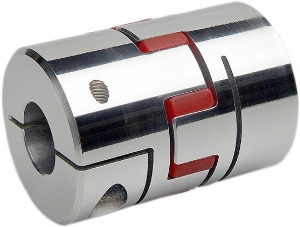

Ondrives Precision Gears and Gearboxes Part number OKBE2/48

OKBE2/48

Servo Insert Coupling with Steel Hub, Clamp Fixing, Shore Hardness 98 Sh-A
Ondrives Precision Gears and Gearboxes Part number OKBE2/48 Ondrives Precision Gears and Gearboxes Part number OKBE2/48

Product specifications

Diameter [A]105
Dimension [L]140
Min. Bore Diameter [D1] & [D2] H732
Max. Bore Diameter [D1] & [D2] H750
Dimension [E]56
Dimension [F]28
Dimension [C]22
Diameter [B]105
Thread [M] DIN 912M10
Tightening Torque TA Nm49
Max. Speed [rpm]3750
Mass (g)1300
Moment of Inertia J g cm²20.20
Max. Torque (Nm)525

Product specifications

Diameter [A]105
Dimension [L]140
Min. Bore Diameter [D1] & [D2] H732
Max. Bore Diameter [D1] & [D2] H750
Dimension [E]56
Dimension [F]28
Dimension [C]22
Diameter [B]105
Thread [M] DIN 912M10
Tightening Torque TA Nm49
Max. Speed [rpm]3750
Mass (g)1300
Moment of Inertia J g cm²20.20
Max. Torque (Nm)525
