OKBE1/48

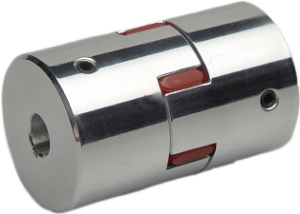

Ondrives Precision Gears and Gearboxes Part number OKBE1/48

OKBE1/48

Servo Insert Coupling with Steel Hub, Set Screw Fixing, Shore Hardness 98 Sh-A
Ondrives Precision Gears and Gearboxes Part number OKBE1/48 Ondrives Precision Gears and Gearboxes Part number OKBE1/48

Product specifications

Diameter [A]105
Dimension [L]140
Min. Bore Diameter [D1] & [D2] H720
Max. Bore Diameter [D1] & [D2] H760
Dimension [E]56
Dimension [F]28
Dimension [C]20
Thread [M] DIN 916M8
Tightening Torque TA Nm25
Max. Speed [rpm]4300
Mass (g)3200
Moment of Inertia J Kg mm²8300
Torque (Nm)525

Product specifications

Diameter [A]105
Dimension [L]140
Min. Bore Diameter [D1] & [D2] H720
Max. Bore Diameter [D1] & [D2] H760
Dimension [E]56
Dimension [F]28
Dimension [C]20
Thread [M] DIN 916M8
Tightening Torque TA Nm25
Max. Speed [rpm]4300
Mass (g)3200
Moment of Inertia J Kg mm²8300
Torque (Nm)525
