OKBE1/28

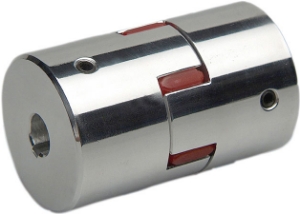

Ondrives Precision Gears and Gearboxes Part number OKBE1/28

OKBE1/28

Servo Insert Coupling with Aluminium Hub, Set Screw Fixing, Shore Hardness 98 Sh-A
Ondrives Precision Gears and Gearboxes Part number OKBE1/28 Ondrives Precision Gears and Gearboxes Part number OKBE1/28

Product specifications

Diameter [A]65
Dimension [L]90
Min. Bore Diameter [D1] & [D2] H720
Max. Bore Diameter [D1] & [D2] H738
Dimension [E]35
Dimension [F]20
Dimension [C]15
Thread [M] DIN 916M6
Tightening Torque TA Nm11
Max. Speed [rpm]7200
Mass (g)253
Moment of Inertia J Kg mm²330
Torque (Nm)160

Product specifications

Diameter [A]65
Dimension [L]90
Min. Bore Diameter [D1] & [D2] H720
Max. Bore Diameter [D1] & [D2] H738
Dimension [E]35
Dimension [F]20
Dimension [C]15
Thread [M] DIN 916M6
Tightening Torque TA Nm11
Max. Speed [rpm]7200
Mass (g)253
Moment of Inertia J Kg mm²330
Torque (Nm)160
