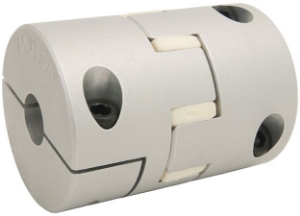

MJT-65C-WH

Miniature Aluminium Curved Jaw Flexible Coupling, Clamp Fixing, Shore Hardness 92 Sh-A

Product specifications

Fixing Type	Clamp
Shore Hardness	92 Sh-A
Min. Bore Diameter [D1] & [D2]	14
Max. Bore Diameter [D1] & [D2]	32
Diameter [A]	65
Dimension [L]	35
Dimension [W]	90
Dimension [B]	15
Dimension [C]	2.5
Dimension [F]	13
Dimension [G]	24
Thread [d]	M8
Zero-Backlash Permissable Torque (Nm)	-
Wrench Torque (Nm)	28
Torque (Nm)	95
Max. Torque (Nm)	190
Max. rpm (min-¹)	9000
Moment of Inertia kg•m²	3.5 x 10-4
Static Stiffness (Nm/rad)	3000
Max. Parallel Offset (mm)	0.15
Errors of Angularity	1°
Errors of Shaft End-Play (mm)	+1.5/-0
Mass (g)	500
Coupling Size	65
