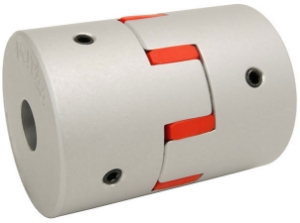

MJT-40-RD

Miniature Aluminium Curved Jaw Flexible Coupling, Set Screw Fixing, Shore Hardness 98 Sh-A

Product specifications

Fixing Type	Set Screw
Shore Hardness	98 Sh-A
Min. Bore Diameter [D1] & [D2]	8
Max. Bore Diameter [D1] & [D2]	25
Diameter [A]	40
Dimension [L]	25
Dimension [W]	66
Dimension [B]	12
Dimension [C]	2
Dimension [F]	12.5
Thread [d]	M5
Zero-Backlash Permissable Torque (Nm)	1.2
Wrench Torque (Nm)	4
Torque (Nm)	17
Max. Torque (Nm)	34
Max. Speed [rpm]	15000
Moment of Inertia kg•m²	3.7 x 10-5
Static Stiffness (Nm/rad)	1200
Max. Parallel Offset (mm)	0.10
Errors of Angularity	1°
Errors of Shaft End-Play (mm)	+1.2/-0
Mass (g)	130
Coupling Size	40
