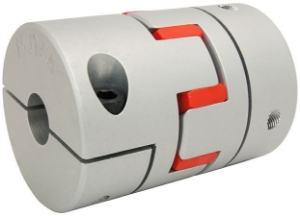

MJT-30C-RD

Miniature Aluminium Curved Jaw Flexible Coupling, Clamp Fixing, Shore Hardness 98 Sh-A

Product specifications

Fixing Type	Clamp
Shore Hardness	98 Sh-A
Min. Bore Diameter [D1] & [D2]	6
Max. Bore Diameter [D1] & [D2]	12
Diameter [A]	30
Dimension [L]	11
Dimension [W]	35
Dimension [B]	10
Dimension [C]	1.5
Dimension [F]	5.5
Dimension [G]	10
Thread [d]	M4
Zero-Backlash Permissable Torque (Nm)	0.5
Wrench Torque (Nm)	3.5
Torque (Nm)	12.5
Max. Torque (Nm)	25
Max. Speed [rpm]	21000
Moment of Inertia kg•m²	6.0 x 10-6
Static Stiffness (Nm/rad)	130
Max. Parallel Offset (mm)	0.10
Errors of Angularity	1°
Errors of Shaft End-Play (mm)	+1.0/-0
Mass (g)	42
Coupling Size	30
