UPSG4.0-62PH-K

Ondrives Precision Gears and Gearboxes Part number UPSG4.0-62PH-K

UPSG4.0-62PH-K

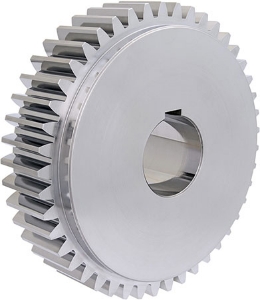

4.0 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPSG4.0-62PH-K Ondrives Precision Gears and Gearboxes Part number UPSG4.0-62PH-K

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]62
Torque T₂ [Nm] n1 500 r/min3063.8
Ref. Diameter [d]248
Tip Diameter [da]256
Bore Diameter [di] H665
Keyway [K] DIN 6885-1 Js920 x 12
Hub Diameter [BD]218
Backlash (mm) jt.i (min)0.035
Backlash (mm) jt.e (max)0.129
Inertia [I] kgm²1.31 x 10-1
Mass kg16.544

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]62
Torque T₂ [Nm] n1 500 r/min3063.8
Ref. Diameter [d]248
Tip Diameter [da]256
Bore Diameter [di] H665
Keyway [K] DIN 6885-1 Js920 x 12
Hub Diameter [BD]218
Backlash (mm) jt.i (min)0.035
Backlash (mm) jt.e (max)0.129
Inertia [I] kgm²1.31 x 10-1
Mass kg16.544
