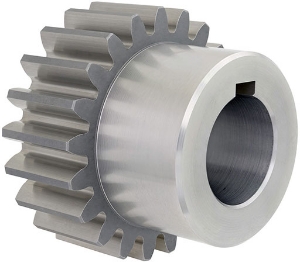

UPSG3.0-75H-K

3.0 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

Product specifications

Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN3967	4f24
Gear Tooth Type	Spur Ground
Normal Module mn	3
Pressure Angle	20°
No. of Teeth [z]	75
Torque T₂ [Nm] n1 500 r/min	1950.9
Ref. Diameter [d]	225
Tip Diameter [da]	231
Bore Diameter [di] H6	30
Keyway [K] DIN 6885-1 Js9	8 x 7
Hub Diameter [BD]	160
Backlash (mm) jt.i (min)	0.035
Backlash (mm) jt.e (max)	0.129
Inertia [I] kgm²	7.39 x 10-2
Mass kg	13.712
