UPSG2.0-85PH-K

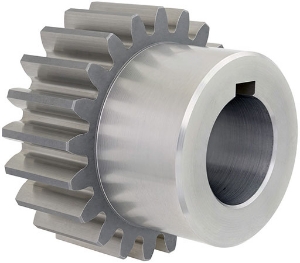

Ondrives Precision Gears and Gearboxes Part number UPSG2.0-85PH-K

UPSG2.0-85PH-K

2.0 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPSG2.0-85PH-K Ondrives Precision Gears and Gearboxes Part number UPSG2.0-85PH-K

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]85
Torque T₂ [Nm] n1 500 r/min527.57
Ref. Diameter [d]170
Tip Diameter [da]174
Bore Diameter [di] H620
Keyway [K] DIN 6885-1 Js96 x 6
Hub Diameter [BD]120
Backlash (mm) jt.i (min)0.037
Backlash (mm) jt.e (max)0.127
Inertia [I] kgm²1.58 x 10-2
Mass kg5.176

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]85
Torque T₂ [Nm] n1 500 r/min527.57
Ref. Diameter [d]170
Tip Diameter [da]174
Bore Diameter [di] H620
Keyway [K] DIN 6885-1 Js96 x 6
Hub Diameter [BD]120
Backlash (mm) jt.i (min)0.037
Backlash (mm) jt.e (max)0.127
Inertia [I] kgm²1.58 x 10-2
Mass kg5.176

If your browser does not support iframes. Please contact us Ondrives Gear Calculator directly.
