UPSG2.0-85H-K

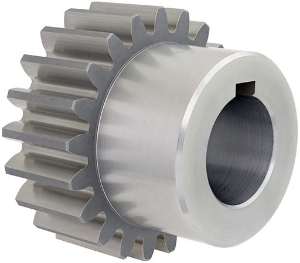

Ondrives Precision Gears and Gearboxes Part number UPSG2.0-85H-K

UPSG2.0-85H-K

2.0 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPSG2.0-85H-K Ondrives Precision Gears and Gearboxes Part number UPSG2.0-85H-K

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]85
Torque T₂ [Nm] n1 500 r/min659.46
Ref. Diameter [d]170
Tip Diameter [da]174
Bore Diameter [di] H620
Keyway [K] DIN 6885-1 Js96 x 6
Hub Diameter [BD]120
Backlash (mm) jt.i (min)0.037
Backlash (mm) jt.e (max)0.127
Inertia [I] kgm²1.60 x 10-2
Mass kg5.222

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]85
Torque T₂ [Nm] n1 500 r/min659.46
Ref. Diameter [d]170
Tip Diameter [da]174
Bore Diameter [di] H620
Keyway [K] DIN 6885-1 Js96 x 6
Hub Diameter [BD]120
Backlash (mm) jt.i (min)0.037
Backlash (mm) jt.e (max)0.127
Inertia [I] kgm²1.60 x 10-2
Mass kg5.222
