UPSG1.0-78H-K

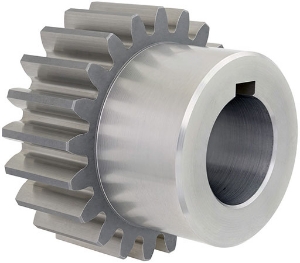

Ondrives Precision Gears and Gearboxes Part number UPSG1.0-78H-K

UPSG1.0-78H-K

1.0 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPSG1.0-78H-K Ondrives Precision Gears and Gearboxes Part number UPSG1.0-78H-K

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Normal Module mn1
No. of Teeth [z]78
Torque T₂ [Nm] n1 500 r/min74.55
Ref. Diameter [d]78
Tip Diameter [da]80
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]50
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.099
Inertia [I] kgm²3.31 x 10-4
Mass kg0.515

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Normal Module mn1
No. of Teeth [z]78
Torque T₂ [Nm] n1 500 r/min74.55
Ref. Diameter [d]78
Tip Diameter [da]80
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]50
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.099
Inertia [I] kgm²3.31 x 10-4
Mass kg0.515
