UPSG1.0-61PH-K

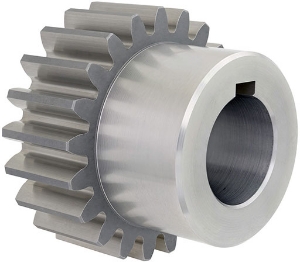

Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

UPSG1.0-61PH-K

1.0 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Normal Module mn1
No. of Teeth [z]61
Torque T₂ [Nm] n1 500 r/min47.10
Ref. Diameter [d]61
Tip Diameter [da]63
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.099
Inertia [I] kgm²1.24 x 10-4
Mass kg0.312

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Normal Module mn1
No. of Teeth [z]61
Torque T₂ [Nm] n1 500 r/min47.10
Ref. Diameter [d]61
Tip Diameter [da]63
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.099
Inertia [I] kgm²1.24 x 10-4
Mass kg0.312
