UPSG1.0-50H-K

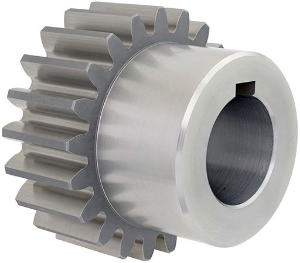

Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

UPSG1.0-50H-K

1.0 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Normal Module mn1
No. of Teeth [z]50
Torque T₂ [Nm] n1 500 r/min48.50
Ref. Diameter [d]50
Tip Diameter [da]52
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.019
Backlash (mm) jt.e (max)0.077
Inertia [I] kgm²6.74 x 10-5
Mass [kg]0.24

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Normal Module mn1
No. of Teeth [z]50
Torque T₂ [Nm] n1 500 r/min48.50
Ref. Diameter [d]50
Tip Diameter [da]52
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.019
Backlash (mm) jt.e (max)0.077
Inertia [I] kgm²6.74 x 10-5
Mass [kg]0.24

If your browser does not support iframes. Please contact us Ondrives Gear Calculator directly.
