UPSG0.8-66H-K

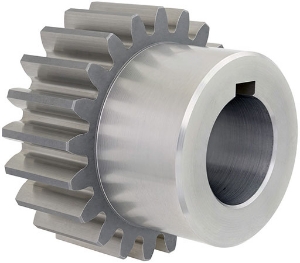

Ondrives Precision Gears and Gearboxes Part number UPSG0.8-66H-K

UPSG0.8-66H-K

0.8 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20° PA Quality Grade 5f DIN 3961/58405
Ondrives Precision Gears and Gearboxes Part number UPSG0.8-66H-K Ondrives Precision Gears and Gearboxes Part number UPSG0.8-66H-K

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN584055f
Gear Tooth TypeSpur Ground
Normal Module mn0.8
Pressure Angle20°
No. of Teeth [z]66
Torque T₂ [Nm] n1 500 r/min29.74
Ref. Diameter [d]52.8
Tip Diameter [da]54.4
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.010
Backlash (mm) jt.e (max)0.056
Inertia [I] kgm²6.32 x 10-5
Mass kg0.206

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN584055f
Gear Tooth TypeSpur Ground
Normal Module mn0.8
Pressure Angle20°
No. of Teeth [z]66
Torque T₂ [Nm] n1 500 r/min29.74
Ref. Diameter [d]52.8
Tip Diameter [da]54.4
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.010
Backlash (mm) jt.e (max)0.056
Inertia [I] kgm²6.32 x 10-5
Mass kg0.206
