UPSG0.5-400H-K

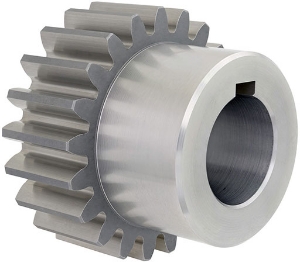

Ondrives Precision Gears and Gearboxes Part number UPSG0.5-400H-K

UPSG0.5-400H-K

0.5 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20° PA Quality Grade 5f DIN 3961/58405
Ondrives Precision Gears and Gearboxes Part number UPSG0.5-400H-K Ondrives Precision Gears and Gearboxes Part number UPSG0.5-400H-K

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN584055f
Gear Tooth TypeSpur Ground
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]400
Torque T₂ [Nm] n1 500 r/min13.48
Ref. Diameter [d]200
Tip Diameter [da]201
Bore Diameter [di] H624
Keyway [K] DIN 6885-1 Js98 x 7
Hub Diameter [BD]140
Backlash (mm) jt.i (min)0.005
Backlash (mm) jt.e (max)0.061
Inertia [I] kgm²7.63 x 10-3
Mass kg1.8

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN584055f
Gear Tooth TypeSpur Ground
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]400
Torque T₂ [Nm] n1 500 r/min13.48
Ref. Diameter [d]200
Tip Diameter [da]201
Bore Diameter [di] H624
Keyway [K] DIN 6885-1 Js98 x 7
Hub Diameter [BD]140
Backlash (mm) jt.i (min)0.005
Backlash (mm) jt.e (max)0.061
Inertia [I] kgm²7.63 x 10-3
Mass kg1.8
