UPSG0.5-240PH-K

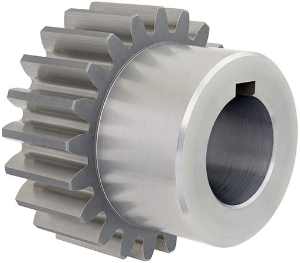

Ondrives Precision Gears and Gearboxes Part number UPSG0.5-240PH-K

UPSG0.5-240PH-K

0.5 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 5f DIN 3961/58405
Ondrives Precision Gears and Gearboxes Part number UPSG0.5-240PH-K Ondrives Precision Gears and Gearboxes Part number UPSG0.5-240PH-K

Product specifications

Gear Tooth TypeSpur Ground
Quality DIN 3961 DIN584055f
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]240
Torque T₂ [Nm] n1 500 r/min9.61
Ref. Diameter [d]120
Tip Diameter [da]121
Bore Diameter [di] H614
Keyway [K] DIN 6885-1 Js95 x 5
Hub Diameter [BD]80
Backlash (mm) jt.i (min)0.009
Backlash (mm) jt.e (max)0.057
Inertia [I] kgm²9.45 x 10-4
Mass kg0.622

Product specifications

Gear Tooth TypeSpur Ground
Quality DIN 3961 DIN584055f
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]240
Torque T₂ [Nm] n1 500 r/min9.61
Ref. Diameter [d]120
Tip Diameter [da]121
Bore Diameter [di] H614
Keyway [K] DIN 6885-1 Js95 x 5
Hub Diameter [BD]80
Backlash (mm) jt.i (min)0.009
Backlash (mm) jt.e (max)0.057
Inertia [I] kgm²9.45 x 10-4
Mass kg0.622
