UPSG0.5-220PH-K

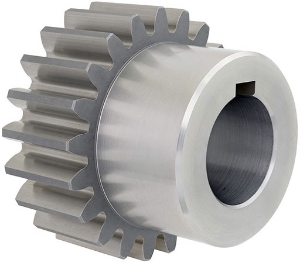

Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

UPSG0.5-220PH-K

0.5 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 5f DIN 3961/58405
Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Gear Tooth TypeSpur Ground
Quality DIN 3961 DIN584055f
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]220
Torque T₂ [Nm] n1 500 r/min9.33
Ref. Diameter [d]110
Tip Diameter [da]111
Bore Diameter [di] H612
Keyway [K] DIN 6885-1 Js94 x 4
Hub Diameter [BD]70
Backlash (mm) jt.i (min)0.009
Backlash (mm) jt.e (max)0.057
Inertia [I] kgm²6.48 x 10-4
Mass [kg]0.51

Product specifications

Gear Tooth TypeSpur Ground
Quality DIN 3961 DIN584055f
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]220
Torque T₂ [Nm] n1 500 r/min9.33
Ref. Diameter [d]110
Tip Diameter [da]111
Bore Diameter [di] H612
Keyway [K] DIN 6885-1 Js94 x 4
Hub Diameter [BD]70
Backlash (mm) jt.i (min)0.009
Backlash (mm) jt.e (max)0.057
Inertia [I] kgm²6.48 x 10-4
Mass [kg]0.51
