UPSG0.5-170H-K

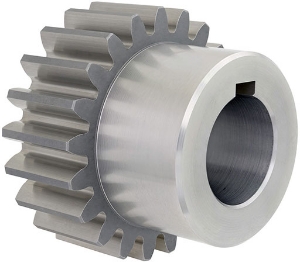

Ondrives Precision Gears and Gearboxes Part number UPSG0.5-170H-K

UPSG0.5-170H-K

0.5 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20° PA Quality Grade 5f DIN 3961/58405
Ondrives Precision Gears and Gearboxes Part number UPSG0.5-170H-K Ondrives Precision Gears and Gearboxes Part number UPSG0.5-170H-K

Product specifications

Gear Tooth TypeSpur Ground
Quality DIN 3961 DIN584055f
Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]170
Torque T₂ [Nm] n1 500 r/min10.35
Ref. Diameter [d]85
Tip Diameter [da]86
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]50
Backlash (mm) jt.i (min)0.006
Backlash (mm) jt.e (max)0.053
Inertia [I] kgm²2.24 x 10-4
Mass kg0.293

Product specifications

Gear Tooth TypeSpur Ground
Quality DIN 3961 DIN584055f
Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]170
Torque T₂ [Nm] n1 500 r/min10.35
Ref. Diameter [d]85
Tip Diameter [da]86
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]50
Backlash (mm) jt.i (min)0.006
Backlash (mm) jt.e (max)0.053
Inertia [I] kgm²2.24 x 10-4
Mass kg0.293

If your browser does not support iframes. Please contact us Ondrives Gear Calculator directly.
