UPHG2.5-42LPH-K

Ondrives Precision Gears and Gearboxes Part number UPHG2.5-42LPH-K

UPHG2.5-42LPH-K

2.5 Module 17-4PH Stainless Steel (38-40HRC) 15 deg. Left Hand Helix Ground Parallel Helical Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPHG2.5-42LPH-K Ondrives Precision Gears and Gearboxes Part number UPHG2.5-42LPH-K

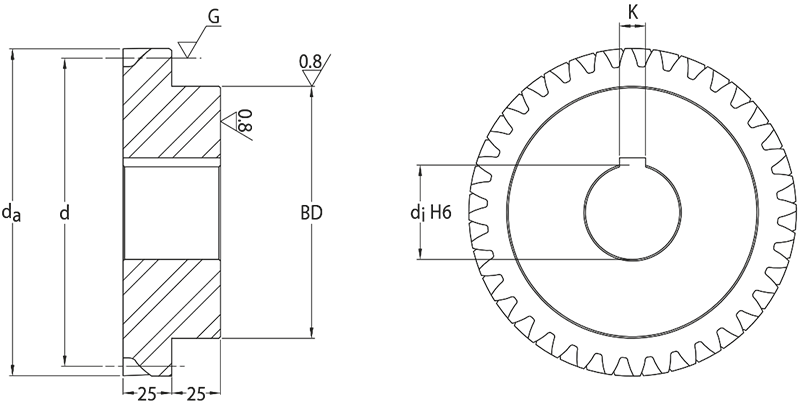

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeHelical Ground
Helix DirectionLeft Hand
Helix Angle15°
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]42
Torque T₂ [Nm] n1 500 r/min603.80
Ref. Diameter [d]108.70
Bore Diameter [di] H612
Keyway [K] DIN 6885-1 Js94 x 4
Tip Diameter [da]113.70
Hub Diameter [BD]70
Backlash (mm) jt.i (min)0.026
Backlash (mm) jt.e (max)0.104
Inertia [I] kgm²3.11 x 10-3
Mass kg2.494

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeHelical Ground
Helix DirectionLeft Hand
Helix Angle15°
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]42
Torque T₂ [Nm] n1 500 r/min603.80
Ref. Diameter [d]108.70
Bore Diameter [di] H612
Keyway [K] DIN 6885-1 Js94 x 4
Tip Diameter [da]113.70
Hub Diameter [BD]70
Backlash (mm) jt.i (min)0.026
Backlash (mm) jt.e (max)0.104
Inertia [I] kgm²3.11 x 10-3
Mass kg2.494
