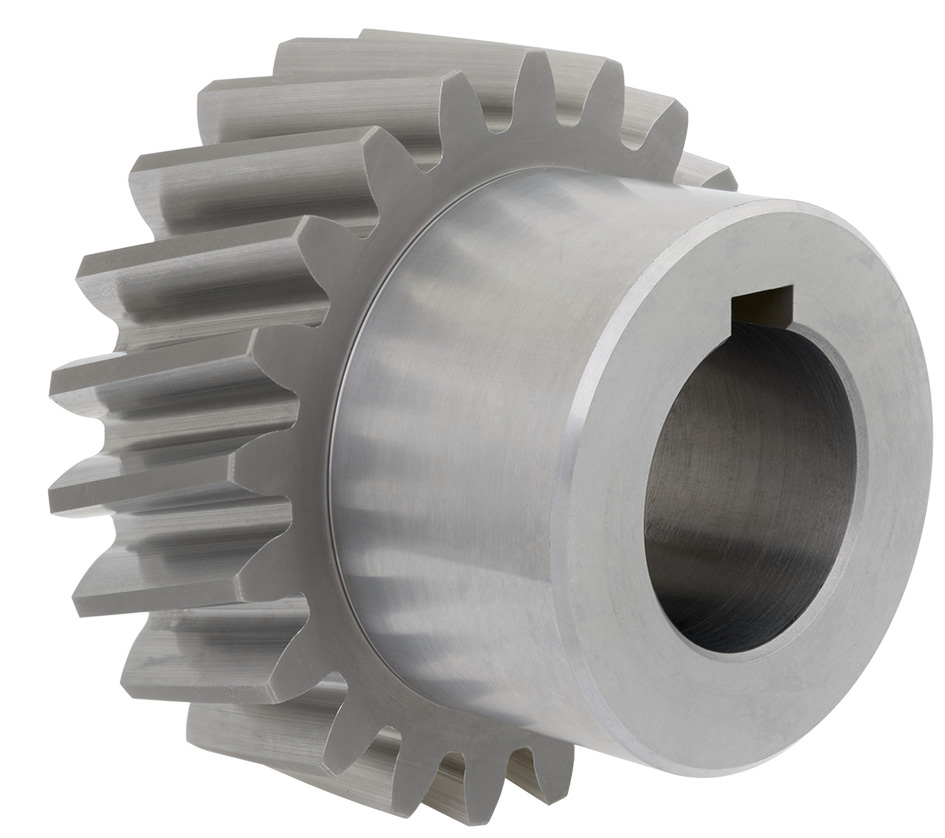

Ground Helical Gears
| Sku (Part No.) | Normal Module mn | No. of Teeth [z] | Bore Diameter [di] H6 | Torque T₂ [Nm] n1 500 r/min | Helix Direction | Material |
|---|---|---|---|---|---|---|
| UPHG0.5-95RH-K | 0.5 | 95 | 10 | 8.45 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-98RH-K | 0.5 | 98 | 10 | 8.05 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-100RH-K | 0.5 | 100 | 10 | 8.18 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-110RH-K | 0.5 | 110 | 10 | 8.81 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-120RH-K | 0.5 | 120 | 10 | 9.42 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-130RH-K | 0.5 | 130 | 10 | 9.99 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-140RH-K | 0.5 | 140 | 10 | 10.54 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-150RH-K | 0.5 | 150 | 10 | 11.07 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-160RH-K | 0.5 | 160 | 10 | 11.57 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-170RH-K | 0.5 | 170 | 10 | 12.04 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-180RH-K | 0.5 | 180 | 12 | 12.49 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-190RH-K | 0.5 | 190 | 12 | 12.91 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-200RH-K | 0.5 | 200 | 12 | 13.31 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-210RH-K | 0.5 | 210 | 12 | 13.67 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-220RH-K | 0.5 | 220 | 12 | 14.01 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-230RH-K | 0.5 | 230 | 14 | 14.32 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-240RH-K | 0.5 | 240 | 14 | 14.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-250RH-K | 0.5 | 250 | 14 | 14.65 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-260RH-K | 0.5 | 260 | 14 | 14.87 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-270RH-K | 0.5 | 270 | 16 | 15.07 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-280RH-K | 0.5 | 280 | 16 | 15.23 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-290RH-K | 0.5 | 290 | 16 | 15.36 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-300RH-K | 0.5 | 300 | 16 | 13.01 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-310RH-K | 0.5 | 310 | 16 | 13.39 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-320RH-K | 0.5 | 320 | 20 | 13.76 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-330RH-K | 0.5 | 330 | 20 | 14.13 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-340RH-K | 0.5 | 340 | 20 | 14.51 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-350RH-K | 0.5 | 350 | 20 | 14.87 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-360RH-K | 0.5 | 360 | 20 | 15.25 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-370RH-K | 0.5 | 370 | 24 | 15.62 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-380RH-K | 0.5 | 380 | 24 | 15.95 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-390RH-K | 0.5 | 390 | 24 | 16.26 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-400RH-K | 0.5 | 400 | 24 | 16.55 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-95RPH-K | 0.5 | 95 | 10 | 6.76 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-98RPH-K | 0.5 | 98 | 10 | 6.44 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-100RPH-K | 0.5 | 100 | 10 | 6.55 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-110RPH-K | 0.5 | 110 | 10 | 7.05 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-120RPH-K | 0.5 | 120 | 10 | 7.53 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-130RPH-K | 0.5 | 130 | 10 | 7.99 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-140RPH-K | 0.5 | 140 | 10 | 8.43 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-150RPH-K | 0.5 | 150 | 10 | 8.85 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-160RPH-K | 0.5 | 160 | 10 | 9.25 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-170RPH-K | 0.5 | 170 | 10 | 9.63 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-180RPH-K | 0.5 | 180 | 12 | 9.99 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-190RPH-K | 0.5 | 190 | 12 | 10.33 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-200RPH-K | 0.5 | 200 | 12 | 10.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-210RPH-K | 0.5 | 210 | 12 | 10.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-220RPH-K | 0.5 | 220 | 12 | 11.21 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-230RPH-K | 0.5 | 230 | 14 | 11.46 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-240RPH-K | 0.5 | 240 | 14 | 11.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-250RPH-K | 0.5 | 250 | 14 | 11.72 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-260RPH-K | 0.5 | 260 | 14 | 11.90 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-270RPH-K | 0.5 | 270 | 16 | 12.05 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-280RPH-K | 0.5 | 280 | 16 | 12.18 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-290RPH-K | 0.5 | 290 | 16 | 12.29 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-300RPH-K | 0.5 | 300 | 16 | 10.41 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-310RPH-K | 0.5 | 310 | 16 | 10.71 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-320RPH-K | 0.5 | 320 | 20 | 11.01 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-330RPH-K | 0.5 | 330 | 20 | 11.31 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-340RPH-K | 0.5 | 340 | 20 | 11.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-350RPH-K | 0.5 | 350 | 20 | 11.90 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-360RPH-K | 0.5 | 360 | 20 | 12.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-370RPH-K | 0.5 | 370 | 24 | 12.49 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-380RPH-K | 0.5 | 380 | 24 | 12.76 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-390RPH-K | 0.5 | 390 | 24 | 13.01 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-400RPH-K | 0.5 | 400 | 24 | 13.24 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-60RH-K | 0.8 | 60 | 10 | 29.62 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-61RH-K | 0.8 | 61 | 10 | 29.06 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-62RH-K | 0.8 | 62 | 10 | 29.49 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-63RH-K | 0.8 | 63 | 10 | 29.92 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-64RH-K | 0.8 | 64 | 10 | 30.35 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-65RH-K | 0.8 | 65 | 10 | 30.78 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-66RH-K | 0.8 | 66 | 10 | 31.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-68RH-K | 0.8 | 68 | 10 | 32.04 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-69RH-K | 0.8 | 69 | 10 | 32.46 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-70RH-K | 0.8 | 70 | 10 | 32.88 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-72RH-K | 0.8 | 72 | 10 | 33.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-75RH-K | 0.8 | 75 | 10 | 34.92 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-78RH-K | 0.8 | 78 | 10 | 36.13 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-80RH-K | 0.8 | 80 | 10 | 36.92 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-82RH-K | 0.8 | 82 | 10 | 37.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-85RH-K | 0.8 | 85 | 10 | 38.86 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-88RH-K | 0.8 | 88 | 10 | 40.01 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-90RH-K | 0.8 | 90 | 10 | 40.76 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-92RH-K | 0.8 | 92 | 10 | 41.51 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-95RH-K | 0.8 | 95 | 10 | 42.61 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-98RH-K | 0.8 | 98 | 10 | 43.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-100RH-K | 0.8 | 100 | 10 | 44.42 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-110RH-K | 0.8 | 110 | 12 | 47.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-120RH-K | 0.8 | 120 | 12 | 51.21 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-130RH-K | 0.8 | 130 | 12 | 54.35 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-140RH-K | 0.8 | 140 | 14 | 57.31 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-150RH-K | 0.8 | 150 | 14 | 60.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-160RH-K | 0.8 | 160 | 14 | 58.86 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-170RH-K | 0.8 | 170 | 16 | 61.01 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-180RH-K | 0.8 | 180 | 16 | 62.97 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-190RH-K | 0.8 | 190 | 16 | 64.73 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-200RH-K | 0.8 | 200 | 16 | 66.31 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-210RH-K | 0.8 | 210 | 20 | 68.02 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-220RH-K | 0.8 | 220 | 20 | 69.58 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-230RH-K | 0.8 | 230 | 20 | 70.97 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-240RH-K | 0.8 | 240 | 24 | 72.21 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-60RPH-K | 0.8 | 60 | 10 | 23.69 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-61RPH-K | 0.8 | 61 | 10 | 23.24 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-62RPH-K | 0.8 | 62 | 10 | 23.59 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-63RPH-K | 0.8 | 63 | 10 | 23.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-64RPH-K | 0.8 | 64 | 10 | 24.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-65RPH-K | 0.8 | 65 | 10 | 24.62 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-66RPH-K | 0.8 | 66 | 10 | 24.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-68RPH-K | 0.8 | 68 | 10 | 25.63 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-69RPH-K | 0.8 | 69 | 10 | 25.97 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-70RPH-K | 0.8 | 70 | 10 | 26.30 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-72RPH-K | 0.8 | 72 | 10 | 26.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-75RPH-K | 0.8 | 75 | 10 | 27.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-78RPH-K | 0.8 | 78 | 10 | 28.90 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-80RPH-K | 0.8 | 80 | 10 | 29.53 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-82RPH-K | 0.8 | 82 | 10 | 30.16 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-85RPH-K | 0.8 | 85 | 10 | 31.09 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-88RPH-K | 0.8 | 88 | 10 | 32.00 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-90RPH-K | 0.8 | 90 | 10 | 32.61 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-92RPH-K | 0.8 | 92 | 10 | 33.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-95RPH-K | 0.8 | 95 | 10 | 34.09 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-98RPH-K | 0.8 | 98 | 10 | 34.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-100RPH-K | 0.8 | 100 | 10 | 35.53 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-110RPH-K | 0.8 | 110 | 12 | 38.32 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-120RPH-K | 0.8 | 120 | 12 | 40.97 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-130RPH-K | 0.8 | 130 | 12 | 43.48 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-140RPH-K | 0.8 | 140 | 14 | 45.85 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-150RPH-K | 0.8 | 150 | 14 | 48.08 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-160RPH-K | 0.8 | 160 | 14 | 47.09 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-170RPH-K | 0.8 | 170 | 16 | 48.81 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-180RPH-K | 0.8 | 180 | 16 | 50.38 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-190RPH-K | 0.8 | 190 | 16 | 51.78 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-200RPH-K | 0.8 | 200 | 16 | 53.05 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-210RPH-K | 0.8 | 210 | 20 | 54.42 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-220RPH-K | 0.8 | 220 | 20 | 55.66 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-230RPH-K | 0.8 | 230 | 20 | 56.78 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-240RPH-K | 0.8 | 240 | 24 | 57.77 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-50RH-K | 1 | 50 | 10 | 55.77 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-51RH-K | 1 | 51 | 10 | 56.88 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-52RH-K | 1 | 52 | 10 | 57.98 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-53RH-K | 1 | 53 | 10 | 59.08 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-54RH-K | 1 | 54 | 10 | 60.18 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-55RH-K | 1 | 55 | 10 | 61.27 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-56RH-K | 1 | 56 | 10 | 62.35 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-57RH-K | 1 | 57 | 10 | 63.44 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-58RH-K | 1 | 58 | 10 | 64.52 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-59RH-K | 1 | 59 | 10 | 65.59 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-60RH-K | 1 | 60 | 10 | 66.66 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-61RH-K | 1 | 61 | 10 | 67.73 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-62RH-K | 1 | 62 | 10 | 68.79 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-63RH-K | 1 | 63 | 10 | 69.85 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-64RH-K | 1 | 64 | 10 | 70.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-65RH-K | 1 | 65 | 10 | 71.95 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-66RH-K | 1 | 66 | 10 | 73.00 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-67RH-K | 1 | 67 | 10 | 74.04 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-68RH-K | 1 | 68 | 10 | 75.08 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-69RH-K | 1 | 69 | 10 | 76.11 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-70RH-K | 1 | 70 | 10 | 77.14 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-72RH-K | 1 | 72 | 10 | 79.79 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-75RH-K | 1 | 75 | 10 | 82.24 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-78RH-K | 1 | 78 | 10 | 85.26 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-80RH-K | 1 | 80 | 10 | 87.25 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-82RH-K | 1 | 82 | 12 | 89.23 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-85RH-K | 1 | 85 | 12 | 92.17 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-88RH-K | 1 | 88 | 12 | 95.09 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-90RH-K | 1 | 90 | 12 | 97.02 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-92RH-K | 1 | 92 | 12 | 98.93 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-95RH-K | 1 | 95 | 12 | 101.78 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-98RH-K | 1 | 98 | 12 | 104.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-100RH-K | 1 | 100 | 12 | 106.46 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-110RH-K | 1 | 110 | 12 | 115.59 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-120RH-K | 1 | 120 | 14 | 124.39 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-130RH-K | 1 | 130 | 16 | 125.25 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-50RPH-K | 1 | 50 | 10 | 44.61 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-51RPH-K | 1 | 51 | 10 | 45.50 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-52RPH-K | 1 | 52 | 10 | 46.38 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-53RPH-K | 1 | 53 | 10 | 47.26 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-54RPH-K | 1 | 54 | 10 | 48.14 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-55RPH-K | 1 | 55 | 10 | 49.01 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-56RPH-K | 1 | 56 | 10 | 49.88 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-57RPH-K | 1 | 57 | 10 | 50.75 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-58RPH-K | 1 | 58 | 10 | 51.61 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-59RPH-K | 1 | 59 | 10 | 52.47 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-60RPH-K | 1 | 60 | 10 | 53.33 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-61RPH-K | 1 | 61 | 10 | 54.18 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-62RPH-K | 1 | 62 | 10 | 55.03 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-63RPH-K | 1 | 63 | 10 | 55.88 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-64RPH-K | 1 | 64 | 10 | 56.72 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-65RPH-K | 1 | 65 | 10 | 57.56 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-66RPH-K | 1 | 66 | 10 | 58.40 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-67RPH-K | 1 | 67 | 10 | 59.23 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-68RPH-K | 1 | 68 | 10 | 60.06 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-69RPH-K | 1 | 69 | 10 | 60.89 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-70RPH-K | 1 | 70 | 10 | 61.71 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-72RPH-K | 1 | 72 | 10 | 63.83 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-75RPH-K | 1 | 75 | 10 | 65.79 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-78RPH-K | 1 | 78 | 10 | 68.21 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-80RPH-K | 1 | 80 | 10 | 69.80 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-82RPH-K | 1 | 82 | 12 | 71.38 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-85RPH-K | 1 | 85 | 12 | 73.74 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-88RPH-K | 1 | 88 | 12 | 76.07 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-90RPH-K | 1 | 90 | 12 | 77.61 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-92RPH-K | 1 | 92 | 12 | 79.14 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-95RPH-K | 1 | 95 | 12 | 81.42 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-98RPH-K | 1 | 98 | 12 | 83.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-100RPH-K | 1 | 100 | 12 | 85.17 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-110RPH-K | 1 | 110 | 12 | 92.47 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-120RPH-K | 1 | 120 | 14 | 99.51 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-130RPH-K | 1 | 130 | 16 | N/A | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-40RH-K | 1.25 | 40 | 10 | 86.02 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-41RH-K | 1.25 | 41 | 10 | 91.17 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-42RH-K | 1.25 | 42 | 10 | 94.19 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-43RH-K | 1.25 | 43 | 10 | 96.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-44RH-K | 1.25 | 44 | 10 | 98.97 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-45RH-K | 1.25 | 45 | 10 | 101.33 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-46RH-K | 1.25 | 46 | 10 | 103.68 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-47RH-K | 1.25 | 47 | 10 | 106.02 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-48RH-K | 1.25 | 48 | 10 | 108.36 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-49RH-K | 1.25 | 49 | 10 | 110.69 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-50RH-K | 1.25 | 50 | 10 | 113.01 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-52RH-K | 1.25 | 52 | 10 | 117.62 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-55RH-K | 1.25 | 55 | 10 | 124.48 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-58RH-K | 1.25 | 58 | 10 | 131.17 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-60RH-K | 1.25 | 60 | 10 | 135.56 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-62RH-K | 1.25 | 62 | 10 | 139.92 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-65RH-K | 1.25 | 65 | 10 | 146.40 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-68RH-K | 1.25 | 68 | 12 | 152.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-70RH-K | 1.25 | 70 | 12 | 157.03 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-72RH-K | 1.25 | 72 | 12 | 161.24 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-75RH-K | 1.25 | 75 | 12 | 167.49 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-78RH-K | 1.25 | 78 | 12 | 173.67 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-80RH-K | 1.25 | 80 | 12 | 177.76 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-82RH-K | 1.25 | 82 | 12 | 181.82 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-85RH-K | 1.25 | 85 | 12 | 187.85 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-88RH-K | 1.25 | 88 | 12 | 193.83 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-90RH-K | 1.25 | 90 | 12 | 197.78 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-92RH-K | 1.25 | 92 | 14 | 201.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-95RH-K | 1.25 | 95 | 14 | 207.53 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-98RH-K | 1.25 | 98 | 14 | 209 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-100RH-K | 1.25 | 100 | 14 | 212.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-110RH-K | 1.25 | 110 | 16 | 230.85 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-120RH-K | 1.25 | 120 | 16 | 248.35 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-130RH-K | 1.25 | 130 | 16 | 265.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-40RPH-K | 1.25 | 40 | 10 | 68.82 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-41RPH-K | 1.25 | 41 | 10 | 72.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-42RPH-K | 1.25 | 42 | 10 | 75.35 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-43RPH-K | 1.25 | 43 | 10 | 77.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-44RPH-K | 1.25 | 44 | 10 | 79.18 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-45RPH-K | 1.25 | 45 | 10 | 81.06 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-46RPH-K | 1.25 | 46 | 10 | 82.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-47RPH-K | 1.25 | 47 | 10 | 84.82 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-48RPH-K | 1.25 | 48 | 10 | 86.69 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-49RPH-K | 1.25 | 49 | 10 | 88.55 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-50RPH-K | 1.25 | 50 | 10 | 90.40 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-52RPH-K | 1.25 | 52 | 10 | 94.10 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-55RPH-K | 1.25 | 55 | 10 | 99.58 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-58RPH-K | 1.25 | 58 | 10 | 104.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-60RPH-K | 1.25 | 60 | 10 | 108.45 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-62RPH-K | 1.25 | 62 | 10 | 111.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-65RPH-K | 1.25 | 65 | 10 | 117.12 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-68RPH-K | 1.25 | 68 | 12 | 122.24 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-70RPH-K | 1.25 | 70 | 12 | 125.62 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-72RPH-K | 1.25 | 72 | 12 | 128.99 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-75RPH-K | 1.25 | 75 | 12 | 133.99 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-78RPH-K | 1.25 | 78 | 12 | 138.94 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-80RPH-K | 1.25 | 80 | 12 | 142.21 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-82RPH-K | 1.25 | 82 | 12 | 145.46 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-85RPH-K | 1.25 | 85 | 12 | 150.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-88RPH-K | 1.25 | 88 | 12 | 155.06 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-90RPH-K | 1.25 | 90 | 12 | 158.22 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-92RPH-K | 1.25 | 92 | 14 | 161.36 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-95RPH-K | 1.25 | 95 | 14 | 166.02 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-98RPH-K | 1.25 | 98 | 14 | 167.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-100RPH-K | 1.25 | 100 | 14 | 170.16 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-110RPH-K | 1.25 | 110 | 16 | 184.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-120RPH-K | 1.25 | 120 | 16 | 198.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-130RPH-K | 1.25 | 130 | 16 | 212.16 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-35RH-K | 1.5 | 35 | 10 | 113.43 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-36RH-K | 1.5 | 36 | 10 | 121.05 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-37RH-K | 1.5 | 37 | 10 | 128.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-38RH-K | 1.5 | 38 | 10 | 136.57 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-39RH-K | 1.5 | 39 | 10 | 144.62 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-40RH-K | 1.5 | 40 | 10 | 152.82 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-42RH-K | 1.5 | 42 | 10 | 163.63 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-45RH-K | 1.5 | 45 | 10 | 176.05 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-48RH-K | 1.5 | 48 | 10 | 188.34 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-50RH-K | 1.5 | 50 | 10 | 196.46 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-52RH-K | 1.5 | 52 | 10 | 204.53 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-55RH-K | 1.5 | 55 | 10 | 216.53 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-58RH-K | 1.5 | 58 | 12 | 228.34 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-60RH-K | 1.5 | 60 | 12 | 236.15 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-62RH-K | 1.5 | 62 | 12 | 243.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-65RH-K | 1.5 | 65 | 12 | 255.44 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-68RH-K | 1.5 | 68 | 12 | 266.86 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-70RH-K | 1.5 | 70 | 12 | 274.40 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-72RH-K | 1.5 | 72 | 12 | 281.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-75RH-K | 1.5 | 75 | 12 | 293.06 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-78RH-K | 1.5 | 78 | 14 | 304.12 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-80RH-K | 1.5 | 80 | 14 | 311.43 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-82RH-K | 1.5 | 82 | 14 | 317.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-85RH-K | 1.5 | 85 | 14 | 328.08 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-88RH-K | 1.5 | 88 | 14 | 338.48 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-90RH-K | 1.5 | 90 | 16 | 345.33 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-92RH-K | 1.5 | 92 | 16 | 352.15 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-95RH-K | 1.5 | 95 | 16 | 362.27 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-98RH-K | 1.5 | 98 | 16 | 372.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-100RH-K | 1.5 | 100 | 16 | 378.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-120RH-K | 1.5 | 120 | 20 | 442 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-130RH-K | 1.5 | 130 | 24 | 472.40 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-35RPH-K | 1.5 | 35 | 10 | 90.74 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-36RPH-K | 1.5 | 36 | 10 | 96.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-37RPH-K | 1.5 | 37 | 10 | 102.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-38RPH-K | 1.5 | 38 | 10 | 109.26 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-39RPH-K | 1.5 | 39 | 10 | 115.70 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-40RPH-K | 1.5 | 40 | 10 | 122.26 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-42RPH-K | 1.5 | 42 | 10 | 130.90 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-45RPH-K | 1.5 | 45 | 10 | 140.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-48RPH-K | 1.5 | 48 | 10 | 150.67 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-50RPH-K | 1.5 | 50 | 14 | 157.17 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-52RPH-K | 1.5 | 52 | 10 | 163.62 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-55RPH-K | 1.5 | 55 | 10 | 173.22 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-58RPH-K | 1.5 | 58 | 12 | 182.67 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-60RPH-K | 1.5 | 60 | 10 | 188.92 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-62RPH-K | 1.5 | 62 | 12 | 195.12 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-65RPH-K | 1.5 | 65 | 12 | 204.35 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-68RPH-K | 1.5 | 68 | 12 | 213.49 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-70RPH-K | 1.5 | 70 | 12 | 219.52 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-72RPH-K | 1.5 | 72 | 12 | 225.52 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-75RPH-K | 1.5 | 75 | 12 | 234.45 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-78RPH-K | 1.5 | 78 | 14 | 243.30 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-80RPH-K | 1.5 | 80 | 14 | 249.14 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-82RPH-K | 1.5 | 82 | 14 | 254.08 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-85RPH-K | 1.5 | 85 | 14 | 262.46 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-88RPH-K | 1.5 | 88 | 14 | 270.78 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-90RPH-K | 1.5 | 90 | 16 | 276.26 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-92RPH-K | 1.5 | 92 | 16 | 281.72 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-95RPH-K | 1.5 | 95 | 16 | 289.82 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-98RPH-K | 1.5 | 98 | 16 | 297.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-100RPH-K | 1.5 | 100 | 16 | 303.12 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-120RPH-K | 1.5 | 120 | 20 | 353.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-130RPH-K | 1.5 | 130 | 24 | 377.92 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-28RH-K | 2 | 28 | 10 | 169.55 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-29RH-K | 2 | 29 | 10 | 183.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-30RH-K | 2 | 30 | 10 | 197.52 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-32RH-K | 2 | 32 | 10 | 227.65 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-35RH-K | 2 | 35 | 10 | 277.05 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-38RH-K | 2 | 38 | 10 | 331.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-40RH-K | 2 | 40 | 10 | 367.56 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-42RH-K | 2 | 42 | 10 | 387.27 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-45RH-K | 2 | 45 | 12 | 416.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-48RH-K | 2 | 48 | 12 | 445.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-50RH-K | 2 | 50 | 12 | 464.74 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-52RH-K | 2 | 52 | 12 | 483.77 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-55RH-K | 2 | 55 | 12 | 512.07 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-58RH-K | 2 | 58 | 12 | 540.05 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-60RH-K | 2 | 60 | 14 | 558.55 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-62RH-K | 2 | 62 | 14 | 576.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-65RH-K | 2 | 65 | 14 | 603.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-68RH-K | 2 | 68 | 14 | 630.85 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-70RH-K | 2 | 70 | 16 | 648.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-72RH-K | 2 | 72 | 16 | 666.40 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-75RH-K | 2 | 75 | 16 | 692.75 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-78RH-K | 2 | 78 | 16 | 718.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-80RH-K | 2 | 80 | 16 | 736 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-82RH-K | 2 | 82 | 16 | 753.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-85RH-K | 2 | 85 | 20 | 778.48 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-88RH-K | 2 | 88 | 20 | 803.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-90RH-K | 2 | 90 | 20 | 820.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-92RH-K | 2 | 92 | 20 | 836.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-95RH-K | 2 | 95 | 24 | 861.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-98RH-K | 2 | 98 | 24 | 885.45 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-100RH-K | 2 | 100 | 24 | 901.45 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-110RH-K | 2 | 110 | 30 | N/A | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-120RH-K | 2 | 120 | 30 | 1054.95 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-130RH-K | 2 | 130 | 32 | 1127.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-28RPH-K | 2 | 28 | 10 | 135.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-29RPH-K | 2 | 29 | 10 | 146.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-30RPH-K | 2 | 30 | 10 | 158.02 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-32RPH-K | 2 | 32 | 10 | 182.12 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-35RPH-K | 2 | 35 | 10 | 221.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-38RPH-K | 2 | 38 | 10 | 265.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-40RPH-K | 2 | 40 | 10 | 294.05 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-42RPH-K | 2 | 42 | 10 | 309.82 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-45RPH-K | 2 | 45 | 12 | 333.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-48RPH-K | 2 | 48 | 12 | 356.48 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-50RPH-K | 2 | 50 | 12 | 371.79 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-52RPH-K | 2 | 52 | 12 | 387.02 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-55RPH-K | 2 | 55 | 12 | 409.66 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-58RPH-K | 2 | 58 | 12 | 432.04 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-60RPH-K | 2 | 60 | 14 | 446.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-62RPH-K | 2 | 62 | 14 | 461.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-65RPH-K | 2 | 65 | 14 | 483.12 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-68RPH-K | 2 | 68 | 14 | 504.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-70RPH-K | 2 | 70 | 16 | 518.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-72RPH-K | 2 | 72 | 16 | 533.12 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-75RPH-K | 2 | 75 | 16 | 554.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-78RPH-K | 2 | 78 | 16 | 575.04 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-80RPH-K | 2 | 80 | 16 | 588.80 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-82RPH-K | 2 | 82 | 16 | 602.48 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-85RPH-K | 2 | 85 | 20 | 622.78 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-88RPH-K | 2 | 88 | 20 | 803.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-90RPH-K | 2 | 90 | 20 | 656.16 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-92RPH-K | 2 | 92 | 20 | 669.36 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-95RPH-K | 2 | 95 | 24 | 688.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-98RPH-K | 2 | 98 | 24 | 708.36 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-100RPH-K | 2 | 100 | 24 | 721.16 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-110RPH-K | 2 | 110 | 30 | 783.76 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-120RPH-K | 2 | 120 | 30 | 843.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-130RPH-K | 2 | 130 | 32 | 901.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-24RH-K | 2.5 | 24 | 10 | 238.47 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-25RH-K | 2.5 | 25 | 10 | 262.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-26RH-K | 2.5 | 26 | 10 | 286.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-27RH-K | 2.5 | 27 | 10 | 311.25 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-28RH-K | 2.5 | 28 | 10 | 337.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-29RH-K | 2.5 | 29 | 10 | 364.45 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-30RH-K | 2.5 | 30 | 10 | 392.75 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-32RH-K | 2.5 | 32 | 10 | 452.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-35RH-K | 2.5 | 35 | 10 | 440.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-38RH-K | 2.5 | 38 | 12 | 659.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-40RH-K | 2.5 | 40 | 12 | 716.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-42RH-K | 2.5 | 42 | 12 | 754.75 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-45RH-K | 2.5 | 45 | 12 | 811.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-48RH-K | 2.5 | 48 | 14 | 867.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-50RH-K | 2.5 | 50 | 14 | 905.05 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-52RH-K | 2.5 | 52 | 14 | 941.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-55RH-K | 2.5 | 55 | 14 | 996.65 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-58RH-K | 2.5 | 58 | 16 | 1050.75 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-60RH-K | 2.5 | 60 | 16 | 1086.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-62RH-K | 2.5 | 62 | 16 | 1121.90 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-65RH-K | 2.5 | 65 | 16 | 1174.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-68RH-K | 2.5 | 68 | 16 | 1226.60 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-70RH-K | 2.5 | 70 | 16 | 1261 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-72RH-K | 2.5 | 72 | 20 | 1295.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-75RH-K | 2.5 | 75 | 20 | 1345.75 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-78RH-K | 2.5 | 78 | 20 | 1395.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-80RH-K | 2.5 | 80 | 24 | 1428.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-82RH-K | 2.5 | 82 | 24 | 1461.57 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-85RH-K | 2.5 | 85 | 24 | 1510.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-88RH-K | 2.5 | 88 | 30 | 1558.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-90RH-K | 2.5 | 90 | 30 | 1590 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-92RH-K | 2.5 | 92 | 30 | 1621.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-95RH-K | 2.5 | 95 | 30 | 1668.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-98RH-K | 2.5 | 98 | 30 | 1714.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-24RPH-K | 2.5 | 24 | 10 | 190.78 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-25RPH-K | 2.5 | 25 | 10 | 210 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-26RPH-K | 2.5 | 26 | 10 | 229.04 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-27RPH-K | 2.5 | 27 | 10 | 249 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-28RPH-K | 2.5 | 28 | 10 | 269.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-29RPH-K | 2.5 | 29 | 10 | 291.56 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-30RPH-K | 2.5 | 30 | 10 | 314.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-32RPH-K | 2.5 | 32 | 10 | 362.08 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-35RPH-K | 2.5 | 35 | 10 | 440.80 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-38RPH-K | 2.5 | 38 | 12 | 527.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-40RPH-K | 2.5 | 40 | 12 | 573.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-42RPH-K | 2.5 | 42 | 12 | 603.80 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-45RPH-K | 2.5 | 45 | 10 | 649.36 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-48RPH-K | 2.5 | 48 | 14 | 694.32 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-50RPH-K | 2.5 | 50 | 14 | 724.04 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-52RPH-K | 2.5 | 52 | 14 | 753.52 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-55RPH-K | 2.5 | 55 | 14 | 797.32 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-58RPH-K | 2.5 | 58 | 16 | 840.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-60RPH-K | 2.5 | 60 | 16 | 869.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-62RPH-K | 2.5 | 62 | 16 | 897.52 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-65RPH-K | 2.5 | 65 | 16 | 939.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-68RPH-K | 2.5 | 68 | 16 | 981.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-70RPH-K | 2.5 | 70 | 16 | 1008.80 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-72RPH-K | 2.5 | 72 | 20 | 1036.08 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-75RPH-K | 2.5 | 75 | 20 | 1076.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-78RPH-K | 2.5 | 78 | 20 | 1116.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-80RPH-K | 2.5 | 80 | 24 | 1143.04 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-82RPH-K | 2.5 | 82 | 24 | 1169.26 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-85RPH-K | 2.5 | 85 | 24 | 1208.16 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-88RPH-K | 2.5 | 88 | 30 | 1246.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-90RPH-K | 2.5 | 90 | 30 | 1272 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-92RPH-K | 2.5 | 92 | 30 | 1297.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-95RPH-K | 2.5 | 95 | 30 | 1334.56 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-98RPH-K | 2.5 | 98 | 30 | 1371.44 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-20RH-K | 3 | 20 | 10 | 277.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-21RH-K | 3 | 21 | 10 | 311.45 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-22RH-K | 3 | 22 | 10 | 346.43 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-23RH-K | 3 | 23 | 10 | 382.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-24RH-K | 3 | 24 | 10 | 420.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-25RH-K | 3 | 25 | 10 | 460.45 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-26RH-K | 3 | 26 | 10 | 502.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-27RH-K | 3 | 27 | 10 | 546.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-28RH-K | 3 | 28 | 10 | 591.8 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-29RH-K | 3 | 29 | 10 | 639.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-30RH-K | 3 | 30 | 12 | 689.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-32RH-K | 3 | 32 | 12 | 794.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-35RH-K | 3 | 35 | 12 | 967 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-38RH-K | 3 | 38 | 12 | 1157.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-40RH-K | 3 | 40 | 14 | 1236.40 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-42RH-K | 3 | 42 | 14 | 1302.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-45RH-K | 3 | 45 | 14 | 1400.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-48RH-K | 3 | 48 | 16 | 1497 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-50RH-K | 3 | 50 | 16 | 1560.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-52RH-K | 3 | 52 | 16 | 1624.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-55RH-K | 3 | 55 | 16 | 1718.10 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-58RH-K | 3 | 58 | 20 | 1811 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-60RH-K | 3 | 60 | 20 | 1872.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-62RH-K | 3 | 62 | 25 | N/A | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-65RH-K | 3 | 65 | 20 | 2023.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-68RH-K | 3 | 68 | 24 | 2112.40 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-70RH-K | 3 | 70 | 24 | 2171.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-72RH-K | 3 | 72 | 24 | N/A | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-75RH-K | 3 | 75 | 30 | 2316 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-78RH-K | 3 | 78 | 30 | 2401.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-80RH-K | 3 | 80 | 30 | 2457.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-82RH-K | 3 | 82 | 30 | 2513.70 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-85RH-K | 3 | 85 | 32 | 2596.50 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-88RH-K | 3 | 88 | 32 | 2678.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-90RH-K | 3 | 90 | 32 | 2732.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-92RH-K | 3 | 92 | 32 | 2782.40 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-95RH-K | 3 | 95 | 36 | 2861.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-98RH-K | 3 | 98 | 36 | 2939 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-20RPH-K | 3 | 20 | 10 | 221.68 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-21RPH-K | 3 | 21 | 10 | 249.16 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-22RPH-K | 3 | 22 | 10 | 277.14 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-23RPH-K | 3 | 23 | 10 | 306 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-24RPH-K | 3 | 24 | 10 | 336.40 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-25RPH-K | 3 | 25 | 16 | N/A | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-26RPH-K | 3 | 26 | 10 | 401.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-27RPH-K | 3 | 27 | 10 | 436.88 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-28RPH-K | 3 | 28 | 10 | 473.44 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-29RPH-K | 3 | 29 | 10 | 511.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-30RPH-K | 3 | 30 | 12 | 551.36 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-32RPH-K | 3 | 32 | 12 | 635.44 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-35RPH-K | 3 | 35 | 12 | 773.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-38RPH-K | 3 | 38 | 12 | 926 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-40RPH-K | 3 | 40 | 14 | 989.12 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-42RPH-K | 3 | 42 | 14 | 1041.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-45RPH-K | 3 | 45 | 14 | 1120.24 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-48RPH-K | 3 | 48 | 16 | 1197.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-50RPH-K | 3 | 50 | 16 | 1248.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-52RPH-K | 3 | 52 | 16 | 1299.28 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-55RPH-K | 3 | 55 | 16 | 1374.48 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-58RPH-K | 3 | 58 | 20 | 1448.80 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-60RPH-K | 3 | 60 | 20 | 1497.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-62RPH-K | 3 | 62 | 20 | 1546.48 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-65RPH-K | 3 | 65 | 20 | 1618.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-68RPH-K | 3 | 68 | 24 | 1689.92 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-70RPH-K | 3 | 70 | 24 | 1736.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-72RPH-K | 3 | 72 | 24 | 1783.60 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-75RPH-K | 3 | 75 | 30 | 1852.80 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-78RPH-K | 3 | 78 | 30 | 1921.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-80RPH-K | 3 | 80 | 30 | 1966.24 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-82RPH-K | 3 | 82 | 30 | 2010.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-85RPH-K | 3 | 85 | 32 | 2077.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-88RPH-K | 3 | 88 | 32 | 2142.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-90RPH-K | 3 | 90 | 32 | 2185.84 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-92RPH-K | 3 | 92 | 32 | 2225.92 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-18RH-K | 4 | 18 | 14 | 535.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-20RH-K | 4 | 20 | 16 | 679.1 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-22RH-K | 4 | 22 | 16 | 840.8 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-24RH-K | 4 | 24 | 16 | 1021 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-25RH-K | 4 | 25 | 20 | 1118 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-30RH-K | 4 | 30 | 24 | 1673.7 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-32RH-K | 4 | 32 | 24 | 1929 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-35RH-K | 4 | 35 | 24 | 2348.3 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-36RH-K | 4 | 36 | 28 | 2498 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-38RH-K | 4 | 38 | 30 | 2764.2 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-40RH-K | 4 | 40 | 36 | 2920.4 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-42RH-K | 4 | 42 | 36 | 3075.2 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-45RH-K | 4 | 45 | 40 | 3304.8 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-46RH-K | 4 | 46 | 40 | 3380.7 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-48RH-K | 4 | 48 | 42 | 3531.2 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-50RH-K | 4 | 50 | 42 | 3680.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-52RH-K | 4 | 52 | 48 | 3828.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-55RH-K | 4 | 55 | 48 | 4047.7 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-56RH-K | 4 | 56 | 50 | 4120 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-58RH-K | 4 | 58 | 60 | 4263.7 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-60RH-K | 4 | 60 | 60 | 4406 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-62RH-K | 4 | 62 | 65 | 4547.2 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-65RH-K | 4 | 65 | 72 | 4756.2 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-68RH-K | 4 | 68 | 72 | 4959 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-70RH-K | 4 | 70 | 78 | 5094.3 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-72RH-K | 4 | 72 | 78 | 5228.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-75RH-K | 4 | 75 | 80 | 5426.7 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-78RH-K | 4 | 78 | 80 | 5622 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-80RH-K | 4 | 80 | 80 | N/A | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-18RPH-K | 4 | 18 | 14 | 428.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-20RPH-K | 4 | 20 | 16 | 543.3 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-22RPH-K | 4 | 22 | 16 | 672.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-24RPH-K | 4 | 24 | 16 | 816.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-25RPH-K | 4 | 25 | 20 | 894.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-30RPH-K | 4 | 30 | 24 | 1339 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-32RPH-K | 4 | 32 | 24 | 1543.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-35RPH-K | 4 | 35 | 24 | 1878.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-36RPH-K | 4 | 36 | 28 | 1998.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-38RPH-K | 4 | 38 | 30 | 2211.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-40RPH-K | 4 | 40 | 36 | 2336.3 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-42RPH-K | 4 | 42 | 36 | 2460.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-45RPH-K | 4 | 45 | 40 | 2643.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-46RPH-K | 4 | 46 | 40 | 2704.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-48RPH-K | 4 | 48 | 42 | 2825 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-50RPH-K | 4 | 50 | 42 | 2944.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-52RPH-K | 4 | 52 | 48 | 3062.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-55RPH-K | 4 | 55 | 48 | 3238.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-56RPH-K | 4 | 56 | 50 | 3296 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-58RPH-K | 4 | 58 | 60 | 3411 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-60RPH-K | 4 | 60 | 60 | 3524.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-62RPH-K | 4 | 62 | 65 | 3637.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-65RPH-K | 4 | 65 | 72 | 3805 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-68RPH-K | 4 | 68 | 72 | 3967.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-18RH-K | 5 | 18 | 20 | 1066 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-20RH-K | 5 | 20 | 20 | 1352 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-22RH-K | 5 | 22 | 24 | 1674.4 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-24RH-K | 5 | 24 | 24 | 2033.3 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-25RH-K | 5 | 25 | 28 | 2226.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-30RH-K | 5 | 30 | 28 | 3334 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-32RH-K | 5 | 32 | 30 | 3843 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-35RH-K | 5 | 35 | 36 | 4679 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-36RH-K | 5 | 36 | 36 | 4976 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-38RH-K | 5 | 38 | 40 | 5385.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-40RH-K | 5 | 40 | 42 | 5688.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-42RH-K | 5 | 42 | 42 | 5988.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-45RH-K | 5 | 45 | 48 | 6433.3 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-46RH-K | 5 | 46 | 50 | 6580 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-48RH-K | 5 | 48 | 60 | 6871.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-50RH-K | 5 | 50 | 60 | 7160 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-52RH-K | 5 | 52 | 72 | 7445.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-55RH-K | 5 | 55 | 78 | 7865.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-56RH-K | 5 | 56 | 78 | 8005 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-58RH-K | 5 | 58 | 80 | 8281.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-60RH-K | 5 | 60 | 80 | 8555 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-62RH-K | 5 | 62 | 90 | 8826 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-18RPH-K | 5 | 18 | 20 | 852.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-20RPH-K | 5 | 20 | 20 | 1081.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-22RPH-K | 5 | 22 | 24 | 1339.5 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-24RPH-K | 5 | 24 | 24 | 1626.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-25RPH-K | 5 | 25 | 28 | 1781.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-30RPH-K | 5 | 30 | 28 | 2667.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-32RPH-K | 5 | 32 | 30 | 3074.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-35RPH-K | 5 | 35 | 36 | 3743.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-36RPH-K | 5 | 36 | 36 | 3980.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-38RPH-K | 5 | 38 | 40 | 4308.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-40RPH-K | 5 | 40 | 42 | 4550.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-42RPH-K | 5 | 42 | 42 | 4790.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-45RPH-K | 5 | 45 | 48 | 5146.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-46RPH-K | 5 | 46 | 50 | 5264 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-48RPH-K | 5 | 48 | 60 | 5497.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-50RPH-K | 5 | 50 | 60 | 5728 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-52RPH-K | 5 | 52 | 72 | 5956.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-55RPH-K | 5 | 55 | 78 | 6292.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-18RH-K | 6 | 18 | 20 | 1871.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-20RH-K | 6 | 20 | 24 | 2374 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-22RH-K | 6 | 22 | 28 | 2940.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-24RH-K | 6 | 24 | 30 | 3571 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-25RH-K | 6 | 25 | 30 | 3911 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-30RH-K | 6 | 30 | 36 | 5856 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-32RH-K | 6 | 32 | 40 | 6750 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-35RH-K | 6 | 35 | 42 | 8218 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-36RH-K | 6 | 36 | 42 | 8670 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-38RH-K | 6 | 38 | 48 | 9190 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-40RH-K | 6 | 40 | 50 | 9704.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-42RH-K | 6 | 42 | 60 | 10214 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-45RH-K | 6 | 45 | 72 | 10969 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-46RH-K | 6 | 46 | 78 | 11214 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-48RH-K | 6 | 48 | 78 | 11707.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-50RH-K | 6 | 50 | 80 | 12195.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-52RH-K | 6 | 52 | 90 | 12768 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-18RPH-K | 6 | 18 | 20 | 1497.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-20RPH-K | 6 | 20 | 24 | 1899.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-22RPH-K | 6 | 22 | 28 | 2352.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-24RPH-K | 6 | 24 | 30 | 2856.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-25RPH-K | 6 | 25 | 30 | 3128.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-30RPH-K | 6 | 30 | 36 | 4684.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-32RPH-K | 6 | 32 | 40 | 5400 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-35RPH-K | 6 | 35 | 42 | 6574.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-36RPH-K | 6 | 36 | 42 | 6936 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-38RPH-K | 6 | 38 | 48 | 7352 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-40RPH-K | 6 | 40 | 50 | 7763.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-42RPH-K | 6 | 42 | 60 | 8171.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-45RPH-K | 6 | 45 | 72 | 6.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-18RH-K | 8 | 18 | 36 | 4550 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-20RH-K | 8 | 20 | 40 | 5773 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-22RH-K | 8 | 22 | 42 | 7150 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-24RH-K | 8 | 24 | 48 | 8684 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-25RH-K | 8 | 25 | 50 | 9510 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-30RH-K | 8 | 30 | 55 | 14240 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-32RH-K | 8 | 32 | 60 | 16410 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-35RH-K | 8 | 35 | 72 | 19427 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-36RH-K | 8 | 36 | 78 | 20026 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-38RH-K | 8 | 38 | 80 | 21216 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-18RPH-K | 8 | 18 | 36 | 3640 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-20RPH-K | 8 | 20 | 40 | 4618 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-22RPH-K | 8 | 22 | 42 | 5720 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-24RPH-K | 8 | 24 | 48 | 6947 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-25RPH-K | 8 | 25 | 50 | 7608 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-30RPH-K | 8 | 30 | 55 | 11392 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-32RPH-K | N/A | 32 | 60 | 13128 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-74RH-K | 0.8 | 74 | 10 | 34.52 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-250RH-K | 0.8 | 250 | 24 | 73.30 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-260RH-K | 0.8 | 260 | 30 | 74.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-74RPH-K | 0.8 | 74 | 10 | 27.61 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-250RPH-K | 0.8 | 250 | 24 | 58.64 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-260RPH-K | 0.8 | 260 | 30 | 59.36 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-150RH-K | 1 | 150 | 16 | 131.92 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-250RH-K | 1 | 250 | 30 | 158.39 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-290RH-K | 1 | 290 | 36 | 171.07 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-150RPH-K | 1 | 150 | 16 | 105.54 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-250RPH-K | 1 | 250 | 30 | 126.71 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-290RPH-K | 1 | 290 | 36 | 136.86 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-150RH-K | 1.25 | 150 | 24 | 296.67 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-230RH-K | 1.25 | 230 | 36 | 299.75 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-150RPH-K | 1.25 | 150 | 24 | 237.34 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-230RPH-K | 1.25 | 230 | 36 | 239.80 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-150RH-K | 1.5 | 150 | 30 | 528.65 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-190RH-K | 1.5 | 190 | 36 | 611.20 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-150RPH-K | 1.5 | 150 | 30 | 422.92 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-190RPH-K | 1.5 | 190 | 36 | 488.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-95RPH-K | 3 | 95 | 36 | 2288.96 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-98RPH-K | 3 | 98 | 36 | 2351.20 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-70RPH-K | 4 | 70 | 78 | 4075.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-72RPH-K | 4 | 72 | 78 | 4182.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-75RPH-K | 4 | 75 | 80 | 4341.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-78RPH-K | 4 | 78 | 80 | 4497.6 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-80RPH-K | 4 | 80 | 80 | 4600.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-65RH-K | 5 | 65 | 90 | 9226.5 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-56RPH-K | 5 | 56 | 78 | 6404 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-58RPH-K | 5 | 58 | 80 | 6625.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-60RPH-K | 5 | 60 | 80 | 6844 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-62RPH-K | 5 | 62 | 90 | 7060.8 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-65RPH-K | 5 | 65 | 90 | 7381.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-54RH-K | 6 | 54 | 90 | 13155 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-46RPH-K | 6 | 46 | 78 | 8971.2 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-48RPH-K | 6 | 48 | 78 | 9366 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-50RPH-K | 6 | 50 | 80 | 9756.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-52RPH-K | 6 | 52 | 90 | 10142.4 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-54RPH-K | 6 | 54 | 90 | 10524 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-40RH-K | 8 | 40 | 90 | 22392 | Right Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-35RPH-K | 8 | 35 | 72 | 15542 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-36RPH-K | 8 | 36 | 78 | 16021 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-38RPH-K | 8 | 38 | 80 | 16973 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-40RPH-K | 8 | 40 | 90 | 17914 | Right Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-95LH-K | 0.5 | 95 | 10 | 8.45 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-98LH-K | 0.5 | 98 | 10 | 8.05 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-100LH-K | 0.5 | 100 | 10 | 8.18 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-110LH-K | 0.5 | 110 | 10 | 8.81 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-120LH-K | 0.5 | 120 | 10 | 9.42 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-130LH-K | 0.5 | 130 | 10 | 9.99 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-140LH-K | 0.5 | 140 | 10 | N/A | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-150LH-K | 0.5 | 150 | 10 | 11.07 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-160LH-K | 0.5 | 160 | 10 | 11.57 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-170LH-K | 0.5 | 170 | 10 | 12.04 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-180LH-K | 0.5 | 180 | 12 | 12.49 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-190LH-K | 0.5 | 190 | 12 | 12.91 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-200LH-K | 0.5 | 200 | 12 | 13.31 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-210LH-K | 0.5 | 210 | 12 | 13.67 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-220LH-K | 0.5 | 220 | 12 | 14.01 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-230LH-K | 0.5 | 230 | 14 | 14.32 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-240LH-K | 0.5 | 240 | 14 | N/A | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-250LH-K | 0.5 | 250 | 14 | 14.65 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-260LH-K | 0.5 | 260 | 14 | 14.87 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-270LH-K | 0.5 | 270 | 16 | 15.07 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-280LH-K | 0.5 | 280 | 16 | 15.23 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-290LH-K | 0.5 | 290 | 16 | 15.36 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-300LH-K | 0.5 | 300 | 16 | 13.01 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-310LH-K | 0.5 | 310 | 16 | 13.39 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-320LH-K | 0.5 | 320 | 20 | 13.76 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-330LH-K | 0.5 | 330 | 20 | 14.13 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-340LH-K | 0.5 | 340 | 20 | 14.51 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-350LH-K | 0.5 | 350 | 20 | 14.87 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-360LH-K | 0.5 | 360 | 20 | 15.25 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-370LH-K | 0.5 | 370 | 24 | 15.62 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-380LH-K | 0.5 | 380 | 24 | 15.95 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-390LH-K | 0.5 | 390 | 24 | 16.26 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-400LH-K | 0.5 | 400 | 24 | 16.55 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-60LH-K | 0.8 | 60 | 10 | 29.62 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-61LH-K | 0.8 | 61 | 10 | 29.06 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-62LH-K | 0.8 | 62 | 10 | 29.49 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-63LH-K | 0.8 | 63 | 10 | 29.92 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-64LH-K | 0.8 | 64 | 10 | 30.35 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-65LH-K | 0.8 | 65 | 10 | 30.78 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-66LH-K | 0.8 | 66 | 10 | 31.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-68LH-K | 0.8 | 68 | 10 | 32.04 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-69LH-K | 0.8 | 69 | 10 | 32.46 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-70LH-K | 0.8 | 70 | 10 | 32.88 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-72LH-K | 0.8 | 72 | 10 | 33.70 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-74LH-K | 0.8 | 74 | 10 | 34.52 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-75LH-K | 0.8 | 75 | 10 | 34.92 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-78LH-K | 0.8 | 78 | 10 | 36.13 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-80LH-K | 0.8 | 80 | 10 | 36.92 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-82LH-K | 0.8 | 82 | 10 | 37.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-85LH-K | 0.8 | 85 | 10 | 38.86 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-88LH-K | 0.8 | 88 | 10 | 40.01 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-90LH-K | 0.8 | 90 | 10 | 40.76 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-92LH-K | 0.8 | 92 | 10 | 41.51 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-95LH-K | 0.8 | 95 | 10 | 42.61 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-98LH-K | 0.8 | 98 | 10 | 43.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-100LH-K | 0.8 | 100 | 10 | 44.42 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-110LH-K | 0.8 | 110 | 12 | 47.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-120LH-K | 0.8 | 120 | 12 | 51.21 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-130LH-K | 0.8 | 130 | 12 | 54.35 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-140LH-K | 0.8 | 140 | 14 | 57.31 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-150LH-K | 0.8 | 150 | 14 | 60.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-160LH-K | 0.8 | 160 | 14 | 58.86 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-170LH-K | 0.8 | 170 | 16 | 61.01 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-180LH-K | 0.8 | 180 | 16 | 62.97 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-190LH-K | 0.8 | 190 | 16 | 64.73 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-200LH-K | 0.8 | 200 | 16 | 66.31 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-210LH-K | 0.8 | 210 | 20 | 68.02 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-220LH-K | 0.8 | 220 | 20 | 69.58 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-230LH-K | 0.8 | 230 | 20 | 70.97 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-240LH-K | 0.8 | 240 | 24 | 72.21 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-250LH-K | 0.8 | 250 | 24 | 73.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-260LH-K | 0.8 | 260 | 30 | 74.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-50LH-K | 1 | 50 | 10 | 55.77 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-51LH-K | 1 | 51 | 10 | 56.88 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-52LH-K | 1 | 52 | 10 | 57.98 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-53LH-K | 1 | 53 | 10 | 59.08 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-54LH-K | 1 | 54 | 10 | 60.18 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-55LH-K | 1 | 55 | 10 | 61.27 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-56LH-K | 1 | 56 | 10 | 62.35 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-57LH-K | 1 | 57 | 10 | 63.44 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-58LH-K | 1 | 58 | 10 | 64.52 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-59LH-K | 1 | 59 | 10 | 65.59 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-60LH-K | 1 | 60 | 10 | 66.66 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-61LH-K | 1 | 61 | 10 | 67.73 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-62LH-K | 1 | 62 | 10 | 68.79 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-63LH-K | 1 | 63 | 10 | 69.85 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-64LH-K | 1 | 64 | 10 | 70.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-65LH-K | 1 | 65 | 10 | 71.95 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-66LH-K | 1 | 66 | 10 | 73.00 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-67LH-K | 1 | 67 | 10 | 74.04 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-68LH-K | 1 | 68 | 10 | 75.08 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-69LH-K | 1 | 69 | 10 | 76.11 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-70LH-K | 1 | 70 | 10 | 77.14 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-72LH-K | 1 | 72 | 10 | 79.79 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-75LH-K | 1 | 75 | 10 | 82.24 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-78LH-K | 1 | 78 | 10 | 85.26 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-80LH-K | 1 | 80 | 10 | 87.25 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-82LH-K | 1 | 82 | 12 | 89.23 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-85LH-K | 1 | 85 | 12 | 92.17 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-88LH-K | 1 | 88 | 12 | 95.09 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-90LH-K | 1 | 90 | 12 | 97.02 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-92LH-K | 1 | 92 | 12 | 98.93 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-95LH-K | 1 | 95 | 12 | 101.78 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-98LH-K | 1 | 98 | 12 | 104.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-100LH-K | 1 | 100 | 12 | 106.46 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-110LH-K | 1 | 110 | 12 | 115.59 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-120LH-K | 1 | 120 | 14 | 124.39 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-130LH-K | 1 | 130 | 16 | 125.25 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-150LH-K | 1 | 150 | 16 | 131.92 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-250LH-K | 1 | 250 | 30 | 158.39 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.0-290LH-K | 1 | 290 | 36 | 171.07 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-40LH-K | 1.25 | 40 | 10 | 86.02 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-41LH-K | 1.25 | 41 | 10 | 91.17 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-42LH-K | 1.25 | 42 | 10 | 94.19 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-43LH-K | 1.25 | 43 | 10 | 96.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-44LH-K | 1.25 | 44 | 10 | 98.97 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-45LH-K | 1.25 | 45 | 10 | 101.33 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-46LH-K | 1.25 | 46 | 10 | 103.68 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-47LH-K | 1.25 | 47 | 10 | 106.02 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-48LH-K | 1.25 | 48 | 10 | 108.36 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-49LH-K | 1.25 | 49 | 10 | 110.69 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-50LH-K | 1.25 | 50 | 10 | 113.01 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-52LH-K | 1.25 | 52 | 10 | 117.62 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-55LH-K | 1.25 | 55 | 10 | 124.48 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-58LH-K | 1.25 | 58 | 10 | 131.17 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-60LH-K | 1.25 | 60 | 10 | 135.56 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-62LH-K | 1.25 | 62 | 10 | 139.92 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-65LH-K | 1.25 | 65 | 10 | 146.40 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-68LH-K | 1.25 | 68 | 12 | 152.80 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-70LH-K | 1.25 | 70 | 12 | 157.03 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-72LH-K | 1.25 | 72 | 12 | 161.24 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-75LH-K | 1.25 | 75 | 12 | 167.49 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-78LH-K | 1.25 | 78 | 12 | 173.67 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-80LH-K | 1.25 | 80 | 12 | 177.76 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-82LH-K | 1.25 | 82 | 12 | 181.82 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-85LH-K | 1.25 | 85 | 12 | 187.85 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-88LH-K | 1.25 | 88 | 12 | 193.83 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-90LH-K | 1.25 | 90 | 12 | 197.78 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-92LH-K | 1.25 | 92 | 14 | 201.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-95LH-K | 1.25 | 95 | 14 | 207.53 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-98LH-K | 1.25 | 98 | 14 | 209 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-100LH-K | 1.25 | 100 | 14 | 212.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-110LH-K | 1.25 | 110 | 16 | 230.85 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-120LH-K | 1.25 | 120 | 16 | 248.35 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-130LH-K | 1.25 | 130 | 16 | 265.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-150LH-K | 1.25 | 150 | 24 | 296.67 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.25-230LH-K | 1.25 | 230 | 36 | 299.75 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-35LH-K | 1.5 | 35 | 10 | 113.43 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-36LH-K | 1.5 | 36 | 10 | 121.05 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-37LH-K | 1.5 | 37 | 10 | 128.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-38LH-K | 1.5 | 38 | 10 | 136.57 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-39LH-K | 1.5 | 39 | 10 | 144.62 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-40LH-K | 1.5 | 40 | 10 | 152.82 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-42LH-K | 1.5 | 42 | 10 | 163.63 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-45LH-K | 1.5 | 45 | 10 | 176.05 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-48LH-K | 1.5 | 48 | 10 | 188.34 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-50LH-K | 1.5 | 50 | 10 | 196.46 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-52LH-K | 1.5 | 52 | 10 | 204.53 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-55LH-K | 1.5 | 55 | 10 | 216.53 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-58LH-K | 1.5 | 58 | 12 | 228.34 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-60LH-K | 1.5 | 60 | 12 | 236.15 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-62LH-K | 1.5 | 62 | 12 | 243.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-65LH-K | 1.5 | 65 | 12 | 255.44 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-68LH-K | 1.5 | 68 | 12 | 266.86 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-70LH-K | 1.5 | 70 | 12 | 274.40 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-72LH-K | 1.5 | 72 | 12 | 281.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-75LH-K | 1.5 | 75 | 12 | 293.06 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-78LH-K | 1.5 | 78 | 14 | 304.12 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-80LH-K | 1.5 | 80 | 14 | 311.43 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-82LH-K | 1.5 | 82 | 14 | 317.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-85LH-K | 1.5 | 85 | 14 | 328.08 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-88LH-K | 1.5 | 88 | 14 | 338.48 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-90LH-K | 1.5 | 90 | 16 | 345.33 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-92LH-K | 1.5 | 92 | 16 | 352.15 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-95LH-K | 1.5 | 95 | 16 | 362.27 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-98LH-K | 1.5 | 98 | 16 | 372.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-100LH-K | 1.5 | 100 | 16 | 378.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-120LH-K | 1.5 | 120 | 20 | 442 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-130LH-K | 1.5 | 130 | 24 | 472.40 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-150LH-K | 1.5 | 150 | 30 | 528.65 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG1.5-190LH-K | 1.5 | 190 | 36 | 611.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-28LH-K | 2 | 28 | 10 | 169.55 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-29LH-K | 2 | 29 | 10 | 183.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-30LH-K | 2 | 30 | 10 | 197.52 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-32LH-K | 2 | 32 | 10 | 227.65 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-35LH-K | 2 | 35 | 10 | 277.05 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-38LH-K | 2 | 38 | 10 | 331.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-40LH-K | 2 | 40 | 10 | 367.56 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-42LH-K | 2 | 42 | 10 | 387.27 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-45LH-K | 2 | 45 | 12 | 416.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-48LH-K | 2 | 48 | 12 | 445.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-50LH-K | 2 | 50 | 12 | 464.74 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-52LH-K | 2 | 52 | 12 | 483.77 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-55LH-K | 2 | 55 | 12 | 512.07 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-58LH-K | 2 | 58 | 12 | 540.05 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-60LH-K | 2 | 60 | 14 | 558.55 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-62LH-K | 2 | 62 | 14 | 576.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-65LH-K | 2 | 65 | 14 | 603.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-68LH-K | 2 | 68 | 14 | 630.85 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-70LH-K | 2 | 70 | 16 | 648.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-72LH-K | 2 | 72 | 16 | 666.40 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-75LH-K | 2 | 75 | 16 | 692.75 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-78LH-K | 2 | 78 | 16 | 718.80 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-80LH-K | 2 | 80 | 16 | 736 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-82LH-K | 2 | 82 | 16 | 753.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-85LH-K | 2 | 85 | 20 | 778.48 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-88LH-K | 2 | 88 | 20 | 803.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-90LH-K | 2 | 90 | 20 | 820.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-92LH-K | 2 | 92 | 20 | 836.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-95LH-K | 2 | 95 | 24 | 861.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-98LH-K | 2 | 98 | 24 | 885.45 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-100LH-K | 2 | 100 | 24 | 901.45 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-110LH-K | 2 | 110 | 30 | 979.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-120LH-K | 2 | 120 | 30 | 1054.95 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.0-130LH-K | 2 | 130 | 32 | 1127.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-24LH-K | 2.5 | 24 | 10 | 238.47 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-25LH-K | 2.5 | 25 | 10 | 262.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-26LH-K | 2.5 | 26 | 10 | 286.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-27LH-K | 2.5 | 27 | 10 | 311.25 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-28LH-K | 2.5 | 28 | 10 | 337.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-29LH-K | 2.5 | 29 | 10 | 364.45 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-30LH-K | 2.5 | 30 | 10 | 392.75 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-32LH-K | 2.5 | 32 | 10 | 452.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-35LH-K | 2.5 | 35 | 10 | 551 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-38LH-K | 2.5 | 38 | 12 | 659.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-40LH-K | 2.5 | 40 | 12 | 716.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-42LH-K | 2.5 | 42 | 12 | 754.75 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-45LH-K | 2.5 | 45 | 12 | 811.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-48LH-K | 2.5 | 48 | 14 | 867.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-50LH-K | 2.5 | 50 | 14 | 905.05 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-52LH-K | 2.5 | 52 | 14 | 941.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-55LH-K | 2.5 | 55 | 14 | 996.65 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-58LH-K | 2.5 | 58 | 16 | 1050.75 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-60LH-K | 2.5 | 60 | 16 | 1086.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-62LH-K | 2.5 | 62 | 16 | 1121.90 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-65LH-K | 2.5 | 65 | 16 | 1174.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-68LH-K | 2.5 | 68 | 16 | 1226.60 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-70LH-K | 2.5 | 70 | 16 | 1261 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-72LH-K | 2.5 | 72 | 20 | 1295.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-75LH-K | 2.5 | 75 | 20 | 1345.75 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-78LH-K | 2.5 | 78 | 20 | 1395.80 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-80LH-K | 2.5 | 80 | 24 | 1428.80 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-82LH-K | 2.5 | 82 | 24 | 1461.57 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-85LH-K | 2.5 | 85 | 24 | 1510.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-88LH-K | 2.5 | 88 | 30 | 1558.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-90LH-K | 2.5 | 90 | 30 | 1590 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-92LH-K | 2.5 | 92 | 30 | 1621.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-95LH-K | 2.5 | 95 | 30 | 1668.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG2.5-98LH-K | 2.5 | 98 | 30 | 1714.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-20LH-K | 3 | 20 | 10 | 277.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-21LH-K | 3 | 21 | 10 | 311.45 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-22LH-K | 3 | 22 | 10 | 346.43 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-23LH-K | 3 | 23 | 10 | 382.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-24LH-K | 3 | 24 | 10 | 420.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-25LH-K | 3 | 25 | 10 | 460.45 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-26LH-K | 3 | 26 | 10 | 502.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-27LH-K | 3 | 27 | 10 | 546.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-28LH-K | 3 | 28 | 10 | 591.8 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-29LH-K | 3 | 29 | 10 | 639.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-30LH-K | 3 | 30 | 12 | 689.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-32LH-K | 3 | 32 | 12 | 794.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-35LH-K | 3 | 35 | 12 | 967 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-38LH-K | 3 | 38 | 12 | 1157.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-40LH-K | 3 | 40 | 14 | 1236.40 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-42LH-K | 3 | 42 | 14 | 1302.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-45LH-K | 3 | 45 | 14 | 1400.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-48LH-K | 3 | 48 | 16 | 1497 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-50LH-K | 3 | 50 | 16 | 1560.80 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-52LH-K | 3 | 52 | 16 | 1624.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-55LH-K | 3 | 55 | 16 | 1718.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-58LH-K | 3 | 58 | 20 | 1811 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-60LH-K | 3 | 60 | 20 | 1872.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-62LH-K | 3 | 62 | 20 | 1933.10 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-65LH-K | 3 | 65 | 20 | 2023.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-68LH-K | 3 | 68 | 24 | 2112.40 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-70LH-K | 3 | 70 | 24 | 2171.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-72LH-K | 3 | 72 | 24 | 2229.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-75LH-K | 3 | 75 | 30 | 2316 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-78LH-K | 3 | 78 | 30 | 2401.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-80LH-K | 3 | 80 | 30 | 2457.80 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-82LH-K | 3 | 82 | 30 | 2513.70 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-85LH-K | 3 | 85 | 32 | 2596.50 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-88LH-K | 3 | 88 | 32 | 2678.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-90LH-K | 3 | 90 | 32 | 2732.30 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-92LH-K | 3 | 92 | 32 | 2782.40 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-95LH-K | 3 | 95 | 36 | 2861.20 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-98LH-K | 3 | 98 | 36 | 2939 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-18LH-K | 4 | 18 | 14 | 535.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-20LH-K | 4 | 20 | 16 | 679.1 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-22LH-K | 4 | 22 | 16 | 840.8 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-24LH-K | 4 | 24 | 16 | 1021 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-25LH-K | 4 | 25 | 20 | 1118 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-30LH-K | 4 | 30 | 24 | 1673.7 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-32LH-K | 4 | 32 | 24 | 1929 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-35LH-K | 4 | 35 | 24 | 2348.3 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-36LH-K | 4 | 36 | 28 | 2498 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-38LH-K | 4 | 38 | 30 | 2764.2 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-40LH-K | 4 | 40 | 36 | 2920.4 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-42LH-K | 4 | 42 | 36 | 3075.2 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-45LH-K | 4 | 45 | 40 | 3304.8 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-46LH-K | 4 | 46 | 40 | 3380.7 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-48LH-K | 4 | 48 | 42 | 3531.2 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-50LH-K | 4 | 50 | 42 | 3680.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-52LH-K | 4 | 52 | 48 | 3828.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-55LH-K | 4 | 55 | 48 | 4047.7 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-56LH-K | 4 | 56 | 50 | 4120 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-58LH-K | 4 | 58 | 60 | 4263.7 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-60LH-K | 4 | 60 | 60 | 4406 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-62LH-K | 4 | 62 | 65 | 4547.2 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-65LH-K | 4 | 65 | 72 | 4756.2 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-68LH-K | 4 | 68 | 72 | 4959 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-70LH-K | 4 | 70 | 78 | 5094.3 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-72LH-K | 4 | 72 | 78 | 5228.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-75LH-K | 4 | 75 | 80 | 5426.7 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-78LH-K | 4 | 78 | 80 | 5622 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-80LH-K | 4 | 80 | 80 | 5750.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-18LH-K | 5 | 18 | 20 | 1066 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-20LH-K | 5 | 20 | 20 | 1352 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-22LH-K | 5 | 22 | 24 | 1674.4 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-24LH-K | 5 | 24 | 24 | 2033.3 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-25LH-K | 5 | 25 | 28 | 2226.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-30LH-K | 5 | 30 | 28 | 3334 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-32LH-K | 5 | 32 | 30 | 3843 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-35LH-K | 5 | 35 | 36 | 4679 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-36LH-K | 5 | 36 | 36 | 4976 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-38LH-K | 5 | 38 | 40 | 5385.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-40LH-K | 5 | 40 | 42 | 5688.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-42LH-K | 5 | 42 | 42 | 5988.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-45LH-K | 5 | 45 | 48 | 6433.3 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-46LH-K | 5 | 46 | 50 | 6580 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-48LH-K | 5 | 48 | 60 | 6871.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-50LH-K | 5 | 50 | 60 | 7160 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-52LH-K | 5 | 52 | 72 | 7445.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-55LH-K | 5 | 55 | 78 | 7865.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-56LH-K | 5 | 56 | 78 | 8005 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-58LH-K | 5 | 58 | 80 | 8281.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-60LH-K | 5 | 60 | 80 | 8555 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-62LH-K | 5 | 62 | 90 | 8826 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-65LH-K | 5 | 65 | 90 | 9226.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-18LH-K | 6 | 18 | 20 | 1871.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-20LH-K | 6 | 20 | 24 | 2374 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-22LH-K | 6 | 22 | 28 | 2940.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-24LH-K | 6 | 24 | 30 | 3571 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-25LH-K | 6 | 25 | 30 | 3911 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-30LH-K | 6 | 30 | 36 | 5856 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-32LH-K | 6 | 32 | 40 | 6750 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-35LH-K | 6 | 35 | 42 | 8218 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-36LH-K | 6 | 36 | 42 | 8670 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-38LH-K | 6 | 38 | 48 | 9190 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-40LH-K | 6 | 40 | 50 | 9704.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-42LH-K | 6 | 42 | 60 | 10214 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-45LH-K | 6 | 45 | 72 | 10969 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-46LH-K | 6 | 46 | 78 | 11214 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-48LH-K | 6 | 48 | 78 | 11707.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-50LH-K | 6 | 50 | 80 | 12195.5 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-52LH-K | 6 | 52 | 90 | 12678 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-54LH-K | 6 | 54 | 90 | 13155 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-18LH-K | 8 | 18 | 36 | 4550 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-20LH-K | 8 | 20 | 40 | 5773 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-22LH-K | 8 | 22 | 42 | 7150 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-24LH-K | 8 | 24 | 48 | 8684 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-25LH-K | 8 | 25 | 50 | 9510 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-30LH-K | 8 | 30 | 55 | 14240 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-32LH-K | 8 | 32 | 60 | 16410 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-35LH-K | 8 | 35 | 72 | 19427 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-36LH-K | 8 | 36 | 78 | 20026 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-38LH-K | 8 | 38 | 80 | 21216 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG8.0-40LH-K | 8 | 40 | 90 | 22392 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.5-95LPH-K | 0.5 | 95 | 10 | 6.76 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-98LPH-K | 0.5 | 98 | 10 | 6.44 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-100LPH-K | 0.5 | 100 | 10 | 6.55 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-110LPH-K | 0.5 | 110 | 10 | 7.05 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-120LPH-K | 0.5 | 120 | 10 | 7.53 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-130LPH-K | 0.5 | 130 | 10 | 7.99 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-140LPH-K | 0.5 | 140 | 10 | 8.43 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-150LPH-K | 0.5 | 150 | 10 | 8.85 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-160LPH-K | 0.5 | 160 | 10 | 9.25 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-170LPH-K | 0.5 | 170 | 10 | 9.63 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-180LPH-K | 0.5 | 180 | 12 | 9.99 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-190LPH-K | 0.5 | 190 | 12 | 10.33 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-200LPH-K | 0.5 | 200 | 12 | 10.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-210LPH-K | 0.5 | 210 | 12 | 10.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-220LPH-K | 0.5 | 220 | 12 | 11.21 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-230LPH-K | 0.5 | 230 | 14 | 11.46 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-240LPH-K | 0.5 | 240 | 14 | 11.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-250LPH-K | 0.5 | 250 | 14 | 11.72 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-260LPH-K | 0.5 | 260 | 14 | 11.90 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-270LPH-K | 0.5 | 270 | 16 | 12.05 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-280LPH-K | 0.5 | 280 | 16 | 12.18 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-290LPH-K | 0.5 | 290 | 16 | 12.29 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-300LPH-K | 0.5 | 300 | 16 | 10.41 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-310LPH-K | 0.5 | 310 | 16 | 10.71 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-320LPH-K | 0.5 | 320 | 20 | 11.01 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-330LPH-K | 0.5 | 330 | 20 | 11.31 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-340LPH-K | 0.5 | 340 | 20 | 11.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-350LPH-K | 0.5 | 350 | 20 | 11.90 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-360LPH-K | 0.5 | 360 | 20 | 12.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-370LPH-K | 0.5 | 370 | 24 | 12.49 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-380LPH-K | 0.5 | 380 | 24 | 12.76 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-390LPH-K | 0.5 | 390 | 24 | 13.01 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.5-400LPH-K | 0.5 | 400 | 24 | 13.24 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-60LPH-K | 0.8 | 60 | 10 | 23.69 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-61LPH-K | 0.8 | 61 | 10 | 23.24 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-62LPH-K | 0.8 | 62 | 10 | 23.59 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-63LPH-K | 0.8 | 63 | 10 | 23.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-64LPH-K | 0.8 | 64 | 10 | 24.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-65LPH-K | 0.8 | 65 | 10 | 24.62 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-66LPH-K | 0.8 | 66 | 10 | 24.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-68LPH-K | 0.8 | 68 | 10 | 25.63 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-69LPH-K | 0.8 | 69 | 10 | 25.97 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-70LPH-K | 0.8 | 70 | 10 | 26.30 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-72LPH-K | 0.8 | 72 | 10 | 26.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-74LPH-K | 0.8 | 74 | 10 | 27.61 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-75LPH-K | 0.8 | 75 | 10 | 27.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-78LPH-K | 0.8 | 78 | 10 | 28.90 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-80LPH-K | 0.8 | 80 | 10 | 29.53 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-82LPH-K | 0.8 | 82 | 10 | 30.16 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-85LPH-K | 0.8 | 85 | 10 | 31.09 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-88LPH-K | 0.8 | 88 | 10 | 32.00 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-90LPH-K | 0.8 | 90 | 10 | 32.61 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-92LPH-K | 0.8 | 92 | 10 | 33.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-95LPH-K | 0.8 | 95 | 10 | 34.09 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-98LPH-K | 0.8 | 98 | 10 | 34.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-100LPH-K | 0.8 | 100 | 10 | 35.53 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-110LPH-K | 0.8 | 110 | 12 | 38.32 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-120LPH-K | 0.8 | 120 | 12 | 40.97 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-130LPH-K | 0.8 | 130 | 12 | 43.48 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-140LPH-K | 0.8 | 140 | 14 | 45.85 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-150LPH-K | 0.8 | 150 | 14 | 48.08 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-160LPH-K | 0.8 | 160 | 14 | N/A | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-170LPH-K | 0.8 | 170 | 16 | 48.81 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-180LPH-K | 0.8 | 180 | 16 | 50.38 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG0.8-190LPH-K | 0.8 | 190 | 16 | 51.78 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-200LPH-K | 0.8 | 200 | 16 | 53.05 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-210LPH-K | 0.8 | 210 | 20 | 54.42 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-220LPH-K | 0.8 | 220 | 20 | 55.66 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-230LPH-K | 0.8 | 230 | 20 | 56.78 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-240LPH-K | 0.8 | 240 | 24 | 57.77 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-250LPH-K | 0.8 | 250 | 24 | 58.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG0.8-260LPH-K | 0.8 | 260 | 30 | 59.36 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-50LPH-K | 1 | 50 | 10 | 44.61 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-51LPH-K | 1 | 51 | 10 | 45.50 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-52LPH-K | 1 | 52 | 10 | 46.38 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-53LPH-K | 1 | 53 | 10 | 47.26 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-54LPH-K | 1 | 54 | 10 | 48.14 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-55LPH-K | 1 | 55 | 10 | 49.01 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-56LPH-K | 1 | 56 | 10 | 49.88 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-57LPH-K | 1 | 57 | 10 | 50.75 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-58LPH-K | 1 | 58 | 10 | 51.61 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-59LPH-K | 1 | 59 | 10 | 52.47 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-60LPH-K | 1 | 60 | 10 | 53.33 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-61LPH-K | 1 | 61 | 10 | 54.18 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-62LPH-K | 1 | 62 | 10 | 55.03 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-63LPH-K | 1 | 63 | 10 | 55.88 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-64LPH-K | 1 | 64 | 10 | 56.72 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-65LPH-K | 1 | 65 | 10 | 57.56 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-66LPH-K | 1 | 66 | 10 | 58.40 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-67LPH-K | 1 | 67 | 10 | 59.23 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-68LPH-K | 1 | 68 | 10 | 60.06 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-69LPH-K | 1 | 69 | 10 | 60.89 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-70LPH-K | 1 | 70 | 10 | 61.71 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-72LPH-K | 1 | 72 | 10 | 63.83 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-75LPH-K | 1 | 75 | 10 | 65.79 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-78LPH-K | 1 | 78 | 10 | 68.21 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-80LPH-K | 1 | 80 | 10 | 69.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-82LPH-K | 1 | 82 | 12 | 71.38 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-85LPH-K | 1 | 85 | 12 | 73.74 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-88LPH-K | 1 | 88 | 12 | 76.07 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-90LPH-K | 1 | 90 | 12 | 77.61 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-92LPH-K | 1 | 92 | 12 | 79.14 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-95LPH-K | 1 | 95 | 12 | 81.42 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-98LPH-K | 1 | 98 | 12 | 83.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-100LPH-K | 1 | 100 | 12 | 85.17 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-110LPH-K | 1 | 110 | 12 | 92.47 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-120LPH-K | 1 | 120 | 14 | 99.51 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-130LPH-K | 1 | 130 | 16 | 100.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-150LPH-K | 1 | 150 | 16 | 105.54 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-250LPH-K | 1 | 250 | 30 | 126.71 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.0-290LPH-K | 1 | 290 | 36 | 136.86 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-40LPH-K | 1.25 | 40 | 10 | 68.82 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-41LPH-K | 1.25 | 41 | 10 | 72.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-42LPH-K | 1.25 | 42 | 10 | 75.35 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-43LPH-K | 1.25 | 43 | 10 | 77.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-44LPH-K | 1.25 | 44 | 10 | 79.18 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-45LPH-K | 1.25 | 45 | 10 | 81.06 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-46LPH-K | 1.25 | 46 | 10 | 82.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-47LPH-K | 1.25 | 47 | 10 | 84.82 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-48LPH-K | 1.25 | 48 | 10 | 86.69 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-49LPH-K | 1.25 | 49 | 10 | 88.55 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-50LPH-K | 1.25 | 50 | 10 | 90.40 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-52LPH-K | 1.25 | 52 | 10 | 94.10 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-55LPH-K | 1.25 | 55 | 10 | 99.58 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-58LPH-K | 1.25 | 58 | 10 | 104.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-60LPH-K | 1.25 | 60 | 10 | 108.45 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-62LPH-K | 1.25 | 62 | 10 | 111.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-65LPH-K | 1.25 | 65 | 10 | 117.12 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-68LPH-K | 1.25 | 68 | 12 | 122.24 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-70LPH-K | 1.25 | 70 | 12 | 125.62 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-72LPH-K | 1.25 | 72 | 12 | 128.99 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-75LPH-K | 1.25 | 75 | 12 | 133.99 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-78LPH-K | 1.25 | 78 | 12 | 138.94 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-80LPH-K | 1.25 | 80 | 12 | 142.21 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-82LPH-K | 1.25 | 82 | 12 | 145.46 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-85LPH-K | 1.25 | 85 | 12 | 150.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-88LPH-K | 1.25 | 88 | 12 | 155.06 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-90LPH-K | 1.25 | 90 | 12 | 158.22 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-92LPH-K | 1.25 | 92 | 14 | 161.36 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-95LPH-K | 1.25 | 95 | 14 | 166.02 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-98LPH-K | 1.25 | 98 | 14 | 167.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-100LPH-K | 1.25 | 100 | 14 | 170.16 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-110LPH-K | 1.25 | 110 | 16 | 184.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-120LPH-K | 1.25 | 120 | 16 | 198.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-130LPH-K | 1.25 | 130 | 16 | 212.16 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-150LPH-K | 1.25 | 150 | 24 | 237.34 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.25-230LPH-K | 1.25 | 230 | 36 | 239.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-35LPH-K | 1.5 | 35 | 10 | 90.74 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-36LPH-K | 1.5 | 36 | 10 | 96.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-37LPH-K | 1.5 | 37 | 10 | 102.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-38LPH-K | 1.5 | 38 | 10 | 109.26 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-39LPH-K | 1.5 | 39 | 10 | 115.70 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-40LPH-K | 1.5 | 40 | 10 | 122.26 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-42LPH-K | 1.5 | 42 | 10 | 130.90 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-45LPH-K | 1.5 | 45 | 10 | 140.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-48LPH-K | 1.5 | 48 | 10 | 150.67 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-50LPH-K | 1.5 | 50 | 10 | 157.17 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-52LPH-K | 1.5 | 52 | 10 | 163.62 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-55LPH-K | 1.5 | 55 | 10 | 173.22 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-58LPH-K | 1.5 | 58 | 12 | 182.67 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-60LPH-K | 1.5 | 60 | 12 | 188.92 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-62LPH-K | 1.5 | 62 | 12 | 195.12 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-65LPH-K | 1.5 | 65 | 12 | 204.35 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-68LPH-K | 1.5 | 68 | 12 | 213.49 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-70LPH-K | 1.5 | 70 | 12 | 219.52 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-72LPH-K | 1.5 | 72 | 12 | 225.52 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-75LPH-K | 1.5 | 75 | 12 | 234.45 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-78LPH-K | 1.5 | 78 | 14 | 243.30 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-80LPH-K | 1.5 | 80 | 14 | 249.14 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-82LPH-K | 1.5 | 82 | 14 | 254.08 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-85LPH-K | 1.5 | 85 | 14 | 262.46 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-88LPH-K | 1.5 | 88 | 14 | 270.78 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-90LPH-K | 1.5 | 90 | 16 | 276.26 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-92LPH-K | 1.5 | 92 | 16 | 281.72 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-95LPH-K | 1.5 | 95 | 16 | 289.82 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-98LPH-K | 1.5 | 98 | 16 | 297.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-100LPH-K | 1.5 | 100 | 16 | 303.12 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-120LPH-K | 1.5 | 120 | 20 | 353.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-130LPH-K | 1.5 | 130 | 24 | 377.92 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-150LPH-K | 1.5 | 150 | 30 | 422.92 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG1.5-190LPH-K | 1.5 | 190 | 36 | 488.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-28LPH-K | 2 | 28 | 10 | 135.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-29LPH-K | 2 | 29 | 10 | 146.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-30LPH-K | 2 | 30 | 10 | 158.02 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-32LPH-K | 2 | 32 | 10 | 227.65 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-35LPH-K | 2 | 35 | 10 | 221.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-38LPH-K | 2 | 38 | 10 | 265.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-40LPH-K | 2 | 40 | 10 | 294.05 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-42LPH-K | 2 | 42 | 10 | 309.82 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-45LPH-K | 2 | 45 | 12 | 333.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-48LPH-K | 2 | 48 | 12 | 356.48 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-50LPH-K | 2 | 50 | 12 | 371.79 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-52LPH-K | 2 | 52 | 12 | 387.02 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-55LPH-K | 2 | 55 | 12 | 409.66 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-58LPH-K | 2 | 58 | 12 | 432.04 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-60LPH-K | 2 | 60 | 14 | 446.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-62LPH-K | 2 | 62 | 14 | 461.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-65LPH-K | 2 | 65 | 14 | 483.12 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-68LPH-K | 2 | 68 | 14 | 504.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-70LPH-K | 2 | 70 | 16 | 518.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-72LPH-K | 2 | 72 | 16 | 533.12 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-75LPH-K | 2 | 75 | 16 | 554.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-78LPH-K | 2 | 78 | 16 | 575.04 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-80LPH-K | 2 | 80 | 16 | 588.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-82LPH-K | 2 | 82 | 16 | 602.48 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-85LPH-K | 2 | 85 | 20 | 622.78 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-88LPH-K | 2 | 88 | 20 | 642.88 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-90LPH-K | 2 | 90 | 20 | 656.16 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-92LPH-K | 2 | 92 | 20 | 669.36 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-95LPH-K | 2 | 95 | 24 | 688.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-98LPH-K | 2 | 98 | 24 | 708.36 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-100LPH-K | 2 | 100 | 24 | 721.16 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-110LPH-K | 2 | 110 | 30 | 783.76 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-120LPH-K | 2 | 120 | 30 | 843.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.0-130LPH-K | 2 | 130 | 32 | 901.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-24LPH-K | 2.5 | 24 | 10 | 190.78 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-25LPH-K | 2.5 | 25 | 10 | 210 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-26LPH-K | 2.5 | 26 | 10 | 229.04 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-27LPH-K | 2.5 | 27 | 10 | 249 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-28LPH-K | 2.5 | 28 | 10 | 269.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-29LPH-K | 2.5 | 29 | 10 | 291.56 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-30LPH-K | 2.5 | 30 | 10 | 314.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-32LPH-K | 2.5 | 32 | 10 | 362.08 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-35LPH-K | 2.5 | 35 | 10 | 440.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-38LPH-K | 2.5 | 38 | 12 | 527.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-40LPH-K | 2.5 | 40 | 12 | 573.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-42LPH-K | 2.5 | 42 | 12 | 603.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-45LPH-K | 2.5 | 45 | 12 | 649.36 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-48LPH-K | 2.5 | 48 | 14 | 694.32 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-50LPH-K | 2.5 | 50 | 14 | 724.04 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-52LPH-K | 2.5 | 52 | 14 | 753.52 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-55LPH-K | 2.5 | 55 | 14 | 797.32 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-58LPH-K | 2.5 | 58 | 16 | 840.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-60LPH-K | 2.5 | 60 | 16 | 869.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-62LPH-K | 2.5 | 62 | 16 | 897.52 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-65LPH-K | 2.5 | 65 | 16 | 939.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-68LPH-K | 2.5 | 68 | 16 | 981.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-70LPH-K | 2.5 | 70 | 16 | 1008.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-72LPH-K | 2.5 | 72 | 20 | 1036.08 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-75LPH-K | 2.5 | 75 | 20 | 1076.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-78LPH-K | 2.5 | 78 | 20 | 1116.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-80LPH-K | 2.5 | 80 | 24 | 1143.04 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-82LPH-K | 2.5 | 82 | 24 | 1169.26 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-85LPH-K | 2.5 | 85 | 24 | 1208.16 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-88LPH-K | 2.5 | 88 | 30 | 1246.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-90LPH-K | 2.5 | 90 | 30 | 1272 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-92LPH-K | 2.5 | 92 | 30 | 1297.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-95LPH-K | 2.5 | 95 | 30 | 1334.56 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG2.5-98LPH-K | 2.5 | 98 | 30 | 1371.44 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-20LPH-K | 3 | 20 | 10 | 221.68 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-21LPH-K | 3 | 21 | 10 | 249.16 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-22LPH-K | 3 | 22 | 10 | 277.14 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-23LPH-K | 3 | 23 | 10 | 306 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-24LPH-K | 3 | 24 | 10 | 336.40 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-25LPH-K | 3 | 25 | 10 | 368.36 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-26LPH-K | 3 | 26 | 10 | 401.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-27LPH-K | 3 | 27 | 10 | 436.88 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-28LPH-K | 3 | 28 | 10 | 473.44 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-29LPH-K | 3 | 29 | 10 | 511.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-30LPH-K | 3 | 30 | 12 | 551.36 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-32LPH-K | 3 | 32 | 12 | 635.44 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-35LPH-K | 3 | 35 | 12 | 773.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-38LPH-K | 3 | 38 | 12 | 926 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-40LPH-K | 3 | 40 | 14 | 989.12 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-42LPH-K | 3 | 42 | 14 | 1041.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-45LPH-K | 3 | 45 | 14 | 1120.24 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-48LPH-K | 3 | 48 | 16 | 1197.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-50LPH-K | 3 | 50 | 16 | 1248.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-52LPH-K | 3 | 52 | 16 | 1299.28 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-55LPH-K | 3 | 55 | 16 | 1374.48 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-58LPH-K | 3 | 58 | 20 | 1448.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-60LPH-K | 3 | 60 | 20 | 1497.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-62LPH-K | 3 | 62 | 20 | 1546.48 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG3.0-65LPH-K | 3 | 65 | 20 | 1618.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-68LPH-K | 3 | 68 | 24 | 1689.92 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-70LPH-K | 3 | 70 | 24 | 1736.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-72LPH-K | 3 | 72 | 24 | 1783.60 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-75LPH-K | 3 | 75 | 30 | 1852.80 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-78LPH-K | 3 | 78 | 30 | 1921.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-80LPH-K | 3 | 80 | 30 | 1966.24 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-82LPH-K | 3 | 82 | 30 | 2010.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-85LPH-K | 3 | 85 | 32 | 2077.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-88LPH-K | 3 | 88 | 32 | 2142.64 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-90LPH-K | 3 | 90 | 32 | 2185.84 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-92LPH-K | 3 | 92 | 32 | 2225.92 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-95LPH-K | 3 | 95 | 36 | 2288.96 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG3.0-98LPH-K | 3 | 98 | 36 | 2351.20 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-18LPH-K | 4 | 18 | 14 | 428.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-20LPH-K | 4 | 20 | 16 | 543.3 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-22LPH-K | 4 | 22 | 16 | 672.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-24LPH-K | 4 | 24 | 16 | 816.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-25LPH-K | 4 | 25 | 20 | 894.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-30LPH-K | 4 | 30 | 24 | 1339 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-32LPH-K | 4 | 32 | 24 | 1543.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-35LPH-K | 4 | 35 | 24 | 1878.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-36LPH-K | 4 | 36 | 28 | 1998.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-38LPH-K | 4 | 38 | 30 | 2211.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-40LPH-K | 4 | 40 | 36 | 2336.3 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-42LPH-K | 4 | 42 | 36 | 2460.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-45LPH-K | 4 | 45 | 40 | 2643.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-46LPH-K | 4 | 46 | 40 | 2704.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-48LPH-K | 4 | 48 | 42 | 2825 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-50LPH-K | 4 | 50 | 42 | 2944.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-52LPH-K | 4 | 52 | 48 | 3062.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-55LPH-K | 4 | 55 | 48 | 3238.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-56LPH-K | 4 | 56 | 50 | 3296 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG4.0-58LPH-K | 4 | 58 | 60 | 3411 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-60LPH-K | 4 | 60 | 60 | 3524.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-62LPH-K | 4 | 62 | 65 | 3637.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-65LPH-K | 4 | 65 | 72 | 3805 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-68LPH-K | 4 | 68 | 72 | 3967.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-70LPH-K | 4 | 70 | 78 | 4075.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-72LPH-K | 4 | 72 | 78 | 4182.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-75LPH-K | 4 | 75 | 80 | 4341.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-78LPH-K | 4 | 78 | 80 | 4497.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG4.0-80LPH-K | 4 | 80 | 80 | 4600.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-18LPH-K | 5 | 18 | 20 | 852.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-20LPH-K | 5 | 20 | 20 | 1081.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-22LPH-K | 5 | 22 | 24 | 1339.5 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-24LPH-K | 5 | 24 | 24 | 1626.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-25LPH-K | 5 | 25 | 28 | 1781.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-30LPH-K | 5 | 30 | 28 | 2667.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-32LPH-K | 5 | 32 | 30 | 3074.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-35LPH-K | 5 | 35 | 36 | 3743.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-36LPH-K | 5 | 36 | 36 | 3980.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-38LPH-K | 5 | 38 | 40 | 4308.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-40LPH-K | 5 | 40 | 42 | 4550.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-42LPH-K | 5 | 42 | 42 | 4790.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-45LPH-K | 5 | 45 | 48 | 5146.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-46LPH-K | 5 | 46 | 50 | 5264 | Left Hand | 080A47 Steel |
| UPHG5.0-48LPH-K | 5 | 48 | 60 | 5497.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-50LPH-K | 5 | 50 | 60 | 5728 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG5.0-52LPH-K | 5 | 52 | 72 | 5956.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-55LPH-K | 5 | 55 | 78 | 6292.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-56LPH-K | 5 | 56 | 78 | 6404 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-58LPH-K | 5 | 58 | 80 | 6625.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-60LPH-K | 5 | 60 | 80 | 6844 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-62LPH-K | 5 | 62 | 90 | 7060.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG5.0-65LPH-K | 5 | 65 | 90 | 7381.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-18LPH-K | 6 | 18 | 20 | 1497.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-20LPH-K | 6 | 20 | 24 | 1899.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-22LPH-K | 6 | 22 | 28 | 2352.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-24LPH-K | 6 | 24 | 30 | 2856.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-25LPH-K | 6 | 25 | 30 | 3128.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-30LPH-K | 6 | 30 | 36 | 4684.8 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-32LPH-K | 6 | 32 | 40 | 5400 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-35LPH-K | 6 | 35 | 42 | 6574.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-36LPH-K | 6 | 36 | 42 | 6936 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-38LPH-K | 6 | 38 | 48 | 7352 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-40LPH-K | 6 | 40 | 50 | 7763.6 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-42LPH-K | 6 | 42 | 60 | 8171.2 | Left Hand | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHG6.0-45LPH-K | 6 | 45 | 72 | 8775.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-46LPH-K | 6 | 46 | 78 | 8971.2 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-48LPH-K | 6 | 48 | 78 | 9366 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-50LPH-K | 6 | 50 | 80 | 9756.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-52LPH-K | 6 | 52 | 90 | 10142.4 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG6.0-54LPH-K | 6 | 54 | 90 | 10524 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-18LPH-K | 8 | 18 | 36 | 3640 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-20LPH-K | 8 | 20 | 40 | 4618 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-22LPH-K | 8 | 22 | 42 | 5720 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-24LPH-K | 8 | 24 | 48 | 6947 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-25LPH-K | 8 | 25 | 50 | 7608 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-30LPH-K | 8 | 30 | 55 | 11392 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-32LPH-K | 8 | 32 | 60 | 13128 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-35LPH-K | 8 | 35 | 72 | 15542 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-36LPH-K | 8 | 36 | 78 | 16021 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-38LPH-K | 8 | 38 | 80 | 16973 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHG8.0-40LPH-K | 8 | 40 | 90 | 17914 | Left Hand | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
