BFL30-14/14

Ondrives Precision Gears and Gearboxes Part number BFL30-14/14

BFL30-14/14

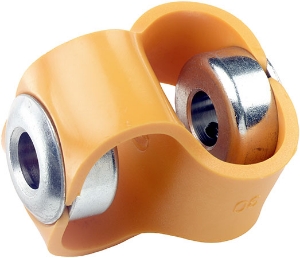

Flex-Plus 1 Piece Misalignment Coupling, High Torsional Rigidity
Ondrives Precision Gears and Gearboxes Part number BFL30-14/14 Ondrives Precision Gears and Gearboxes Part number BFL30-14/14 Ondrives Precision Gears and Gearboxes Part number BFL30-14/14

Product specifications

Size30
Bore Diameter [d1]14
Max. Bore Diameter [d1]16
Max. Diameter [D]54
Dimension [L]55
Hub Height16
Set ScrewM5
Mass (g)124
Fastener Torque (Nm)4.62
Fastener Wrench (mm)2.5
Max. Torque (1) Nm5
Max. Torque (2) Nm8
Max. Angular Misalignment [w]15°
Max. Radial Misalignment [r]3.2
Max. Axial Displacement [a]8.5

Product specifications

Size30
Bore Diameter [d1]14
Max. Bore Diameter [d1]16
Max. Diameter [D]54
Dimension [L]55
Hub Height16
Set ScrewM5
Mass (g)124
Fastener Torque (Nm)4.62
Fastener Wrench (mm)2.5
Max. Torque (1) Nm5
Max. Torque (2) Nm8
Max. Angular Misalignment [w]15°
Max. Radial Misalignment [r]3.2
Max. Axial Displacement [a]8.5
