TRC-50.8

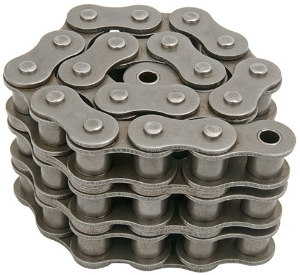

Ondrives Precision Gears and Gearboxes Part number TRC-50.8

TRC-50.8

Triplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number TRC-50.8 Ondrives Precision Gears and Gearboxes Part number TRC-50.8

Product specifications

MaterialSteel DIN 8187
ISO No.32B-3
Pitch/Lead50.8
Dimension [b1]30.99
Dimension [b2]45.5
Dimension [d1]17.81
Dimension [d3]29.21
Dimension [F1]184
Dimension [F2]191.9
Dimension [h]42.2
Dimension [s1]7
Dimension [s2]6
Dimension [e]58.55
Bearing Area [f cm²]38.25
Breaking Load [FB N]670000
Chain Weight [q kg/m]32

Product specifications

MaterialSteel DIN 8187
ISO No.32B-3
Pitch/Lead50.8
Dimension [b1]30.99
Dimension [b2]45.5
Dimension [d1]17.81
Dimension [d3]29.21
Dimension [F1]184
Dimension [F2]191.9
Dimension [h]42.2
Dimension [s1]7
Dimension [s2]6
Dimension [e]58.55
Bearing Area [f cm²]38.25
Breaking Load [FB N]670000
Chain Weight [q kg/m]32
